NO = Normally Open, NC = Normally Closed, C = Common, TX = Transmitter, RX = Receiver

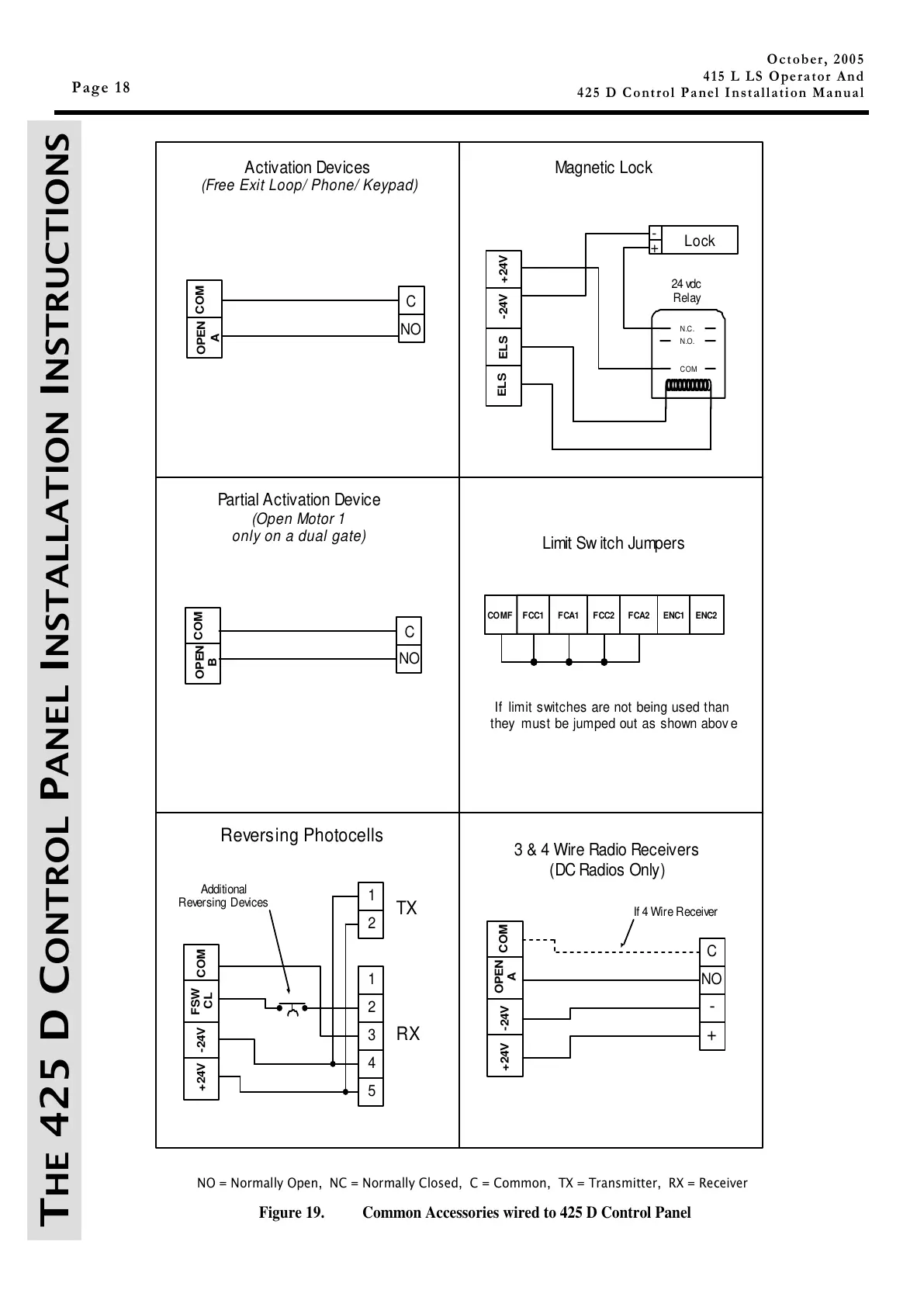

Figure 19. Common Accessories wired to 425 D Control Panel
Page 18
October, 2005
415 L LS Operator And
425 D Control Panel Installation Manual
THE 425 D CONTROL PANEL INSTALLATION INSTRUCTIONS
Magnetic Lock
Reversing Photocells
3 & 4 Wire Radio Receivers
(DC Radios Only)
N.C.
N.O.
COM
24 vdc
Relay
1
2
1
2
3
4
5
Additional
Reversing Devices
TX
RX
NO
C
-
+
If 4 Wire Receiver
Activation Devices
(Free Exit Loop/ Phone/ Keypad)
C
NO
Partial Activation Device
(Open Motor 1
only on a dual gate)
C
NO
+
-
Lock
OPEN
A
COMOPEN
B
COM
COM
FSW
CL
-24V+24V
ELS -24V +24V
ELS
Limit Sw itch Jumpers
If limit switches are not being used than
they must be jumped out as shown abov e
COM
-24V+24V
OPEN
A
FCC2 FCA2FCA1COMF FCC1 ENC2ENC1
