4.3 J3 - COMMAND AND SAFETY DEVICES INPUTS
9 OP-A
OPEN A contact - N.O.
TOTAL opening
Connect a button or other pulse generator which, by closing
a contact, commands TOTAL opening of both leaves.
10 OP-B
OPEN B contact - N.O.
PARTIAL opening
Connect a button or other pulse generator which, by closing
a contact, commands the PARTIAL opening.
on 2-motor systems = 100% of leaf 1 opening;
on 1-motor systems = 50% of leaf 1 opening.
When a logic requiring a CLOSE (
b
b
,
C
C
) input is selected, the,
OPEN B input automatically becomes CLOSE - N.O. (leaves
closing command).
To install more than one OPEN A or OPEN B pulse generator, connect the N.O. contacts in
parallel (see related Fig.)
11 STOP
STOP contact - N.C.
Connect a button or other pulse generator which, by opening
a contact, stops movement of the automated system.
To install more than one STOP device, connect the N.C. contacts in series (see related Fig.).
If stop devices are NOT connected, jumper terminals STOP and GND.

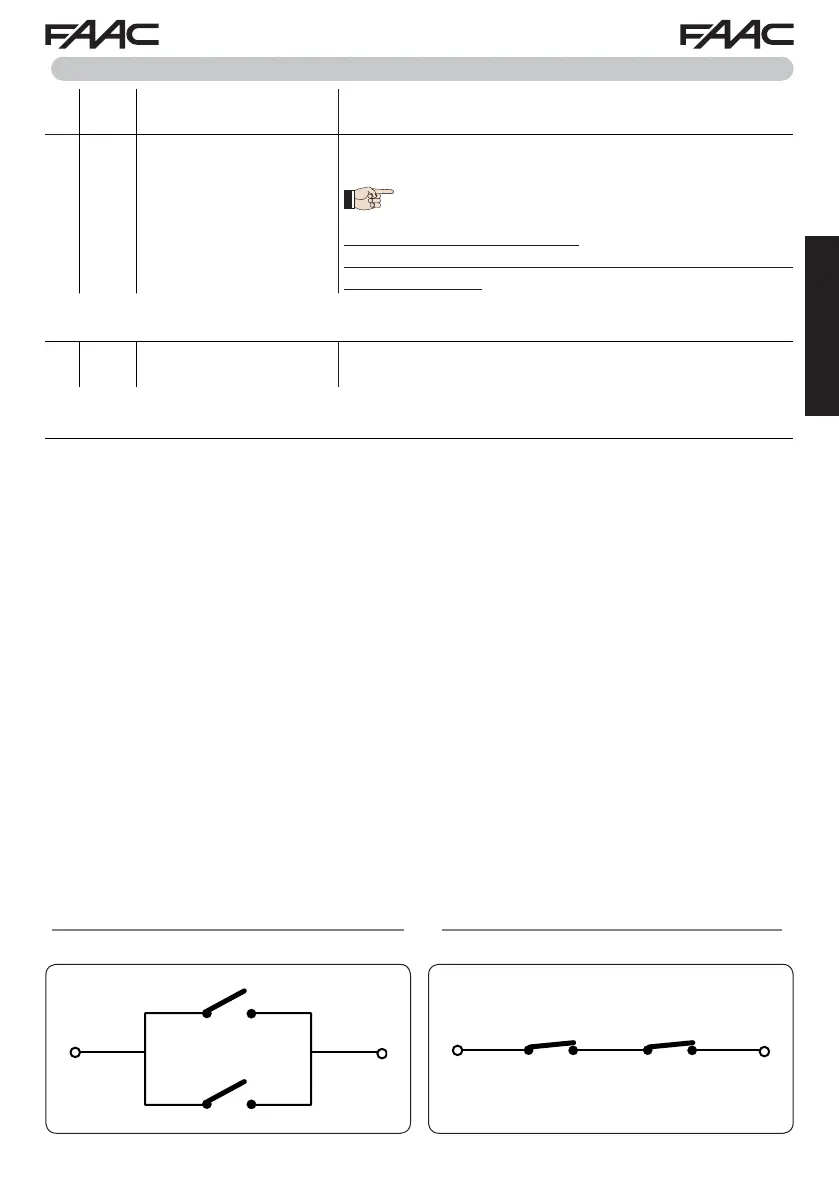

Fig. e.g.: Connecting 2 N.O. contacts in parallel. Fig. e.g.: Connecting 2 N.C. contacts in series.
