TX RX G K G V
LK EVO
TX RX G K G V
Translation of the original instructions
EN GL IS H
The LK EVO allows you to select the operating mode by pressing the
corresponding button.
INSTALLATION AND CONNECTION
1. To separate the parts use a flat-head screwdriver to prise them
apart.
2. Break the cable knockout.
3. Mark the points on the wall and fasten the support using suitable
screws.
F
Before connecting the device, disconnect the mains power supply and
the emergency battery of the automation system (if present).
4. Connect to the E1SL board:
J8
G GND Accessories power supply negative and Common contacts
TX Data transmission
RX Data reception
V +24 V
"
(accessories power supply)
- use a 4 twisted pair U/UTP AWG24 cable with a maximum
length of 50 m
!
LK EVO LOCK DEVICE The lock device is optional. Connect a key com-
mand with an NC contact to terminals G and K (see the figure ).
5. Assemble the parts by pressing lightly.
SWITCHING ON Turn power on to the E1SL board.
- The LEDs turn on and off in sequence, then the LED corresponding
to the active operating mode remains on.
If the
T LEDs are both lit at the same time, it indicates that
the automation is in an operating mode that is NOT available on
the LK EVO.
OPERATION ( LK EVO Operating buttons) To select the operating
mode, press the corresponding button. For special functions, press
the 2-button combinations indicated.
ERRORS In the event of errors, the combination of LEDs correspond-
ing to the active error flashes for a few seconds.
WARNINGS In the event of warnings, the combination of LEDs
••T
flashes for a few seconds.
See the table LED Error Coding on Function selectors.
2-button combinations:
•Ž
+ ( 5 s)
LOCK / UNLOCK Press for approximately 5 s to Lock/Release
the keypad (the LEDs turn on and then off)
• + T ( 5 s)
RESET (the LEDs corresponding to the Error flash until the
buttons are pressed, release when they turn off)
•• +
•Ž
(...)
WARNINGS To display the active warnings, press and hold
the buttons (the LEDs corresponding to the warning flash as
long as the buttons are pressed, release when they turn off)
(see LED Warning coding)
+ N (...)
FW VERSION LK EVO press and hold the buttons to display
the FW version of the LK EVO ( LED FW version coding)
Total two-direction automatic
Door open
Automatic total one-direction
Automatic partial two-direction
Night
Manual
Icons Led (operating mode active)
Buttons
Operating mode

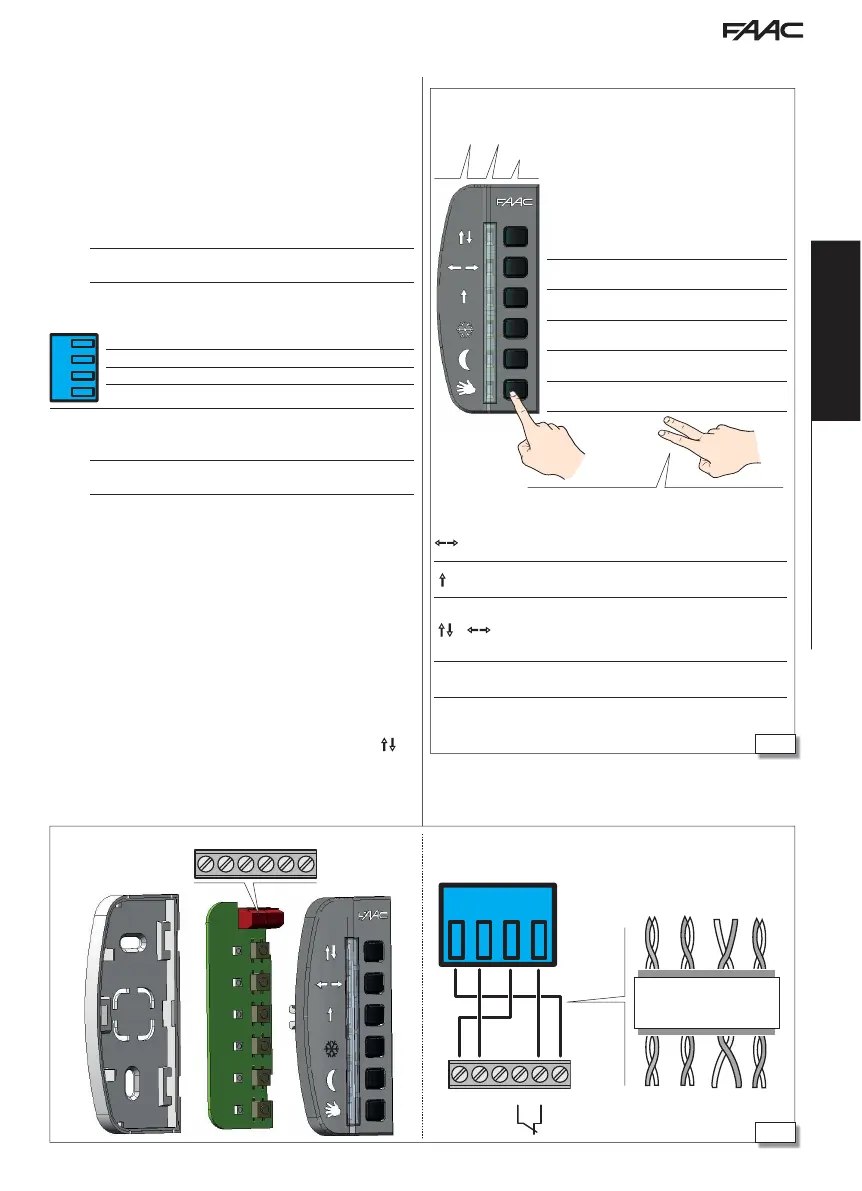

12. LK EVO
Assembling the LK EVO LK EVO connection Connect to the terminals as shown.
13LK EVO Operating buttons
