SW1
SETUP RESET
SW3
+
SW4
F
SW2
-
F1 F2
Translation of the original instructions
EN GL IS H
POWER SUPPLY UNIT
ELECTRONIC BOARD E1SL

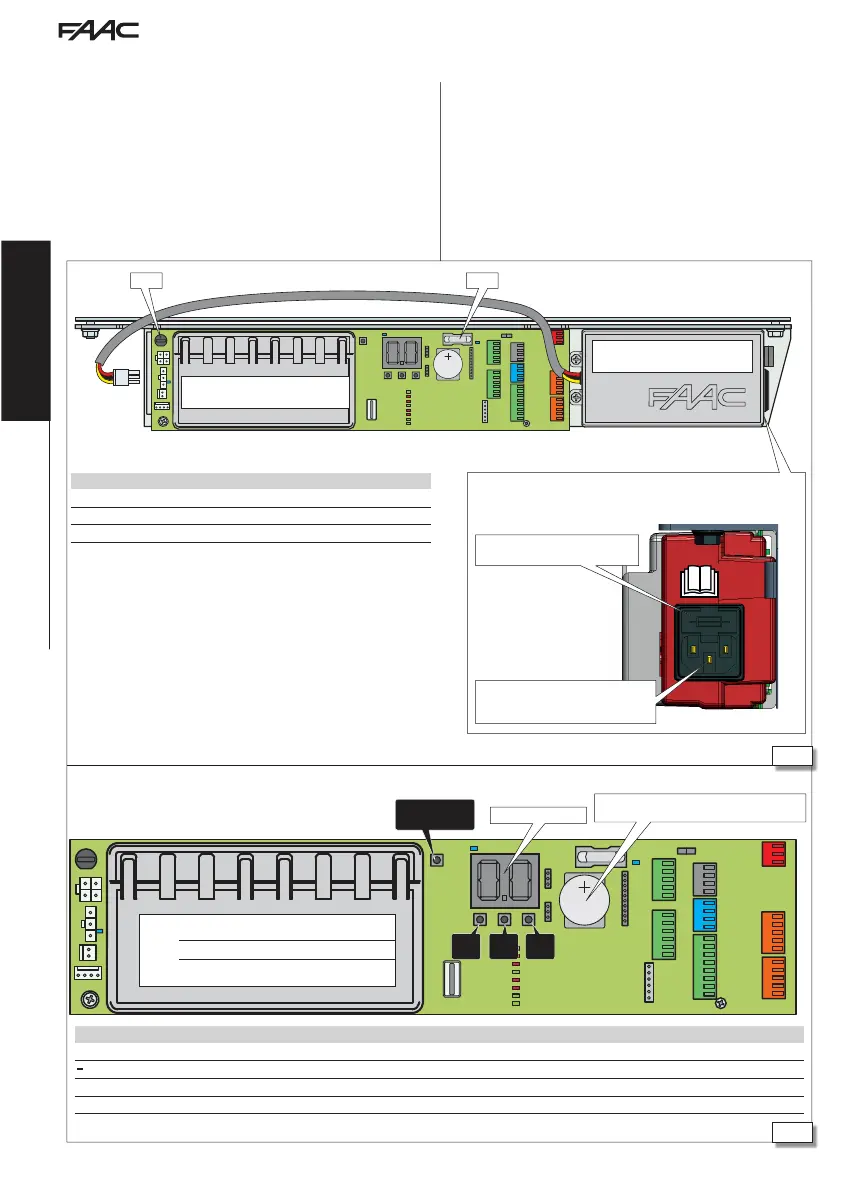

1. ELECTRONIC MODULE E1SL
Display
Clock battery: lithium 3V CR2032
(NOT SUPPLIED)
Switching power supply 230 V~ +6% -10%
self-protected from overloads
Mains power supply input
(230V~ +6% -10%)
F3
(removable support)
Fuses
F1 battery protection 8 A F (quick)
F2 accessory protection 2 A F (quick)
F3 power supply unit primary protection 2.5 A T (delayed) 5x20 mm
BOARD E1SL
!
DO NOT remove this cover
Buttons
SW1 SETUP (pressed for 5 s) / RESET (pressed momentarily)
-
(SW2) scrolls programming values
+ (SW3) scrolls programming values , when not in programming mode, performs AUTOMATIC OPENING (pressed for 1 s)
F (SW4) programming: scrolls functions/confirms values
The E1SL electronic module is designed to control FAAC automation
models A1000, A1400 AIR, RKE 1400, SF1400, GBF1500. The instal-
lation instructions must be followed.
Motorised pedestrian doors fall within the scope of the type “C”
harmonised European Standard EN 16005:2012. It is assumed that
automation systems manufactured in accordance with this standard
also comply with the essential safety requirements of the Directive
2006/42/EC.
This however does not exempt the manufacturer from carrying out
a risk analysis in order to implement appropriate measures for those
risks that are not covered by the standard or by the manufacturers of
the components. FAAC S.p.A. recommends that you always comply
with the EN 16005:2012 standard and in particular that you adopt the
criteria and safety devices indicated, without exception.
