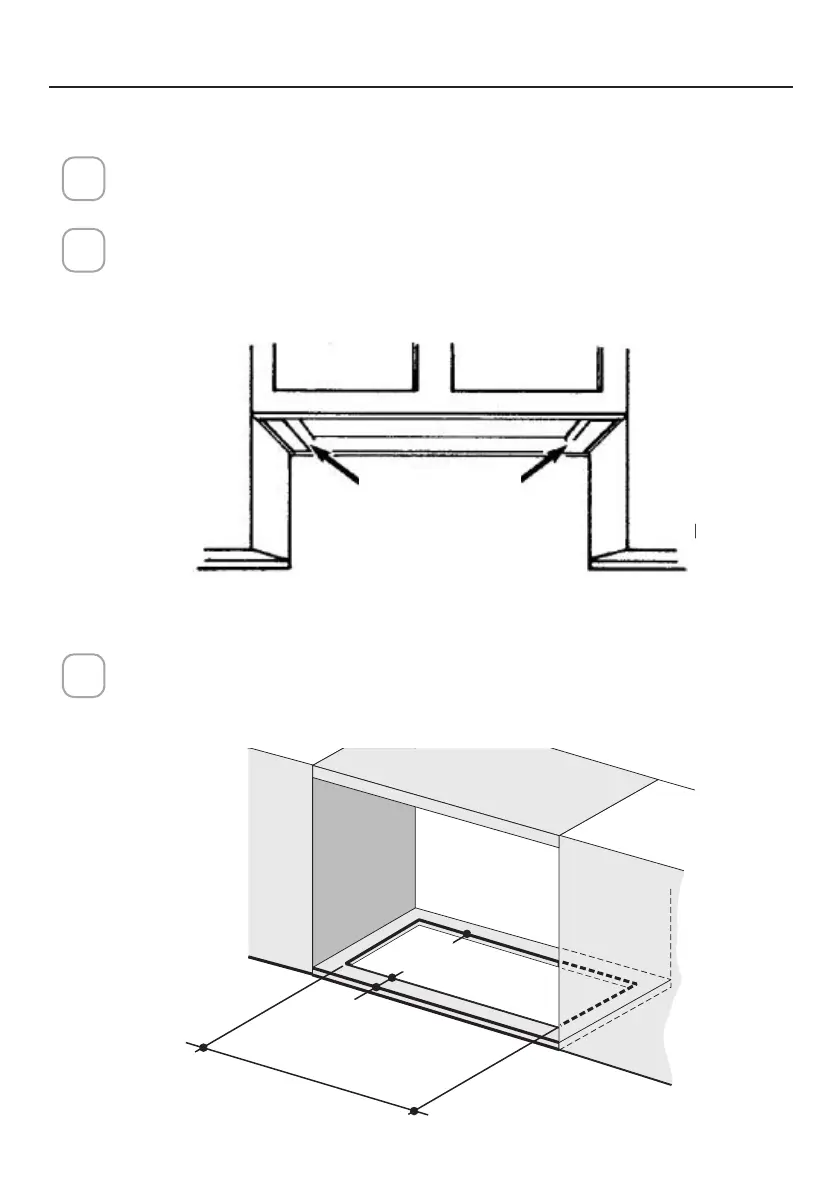

The Hood can be installed directly on the underside of the cabinet.
If the cabinet bottom is recessed, wood blocks need to be installed
to insure proper alignment with the cabinet bottom.
Wood blocks should be ush or recessed 1/16" to 1/8" within the
cabinet bottom as shown.
20 1/16"
9/16"
ATTACHING THE HOOD TO THE CABINET
PREPARING THE CABINET
Create a cut out in the bottom of the cabinet as shown in the
illustration.
3
RANGE HOOD 24"
15
14
1
33
The Hood can be installed directly on the underside of the cabinet.
Create a cut out in the bottom of the cabinet as shown in the
illustration.
20 1/16"
9/16"
RANGE HOOD 24"
24"
9/16"
RANGE HOOD 30"
Remove the grease filters by pushing the release tab towards the
back of the hood.
44
SNAP-ON FITTING
wood lter strips
RANGE HOOD 24"
To Next Page
