The power cord shall be accessible for inspection after installation.
Max. 33 7/16”
ELECTRICAL INSTALLATION WITH CONNECTION CABLE
GROUNDING INSTRUCTIONS This appliance must be grounded. In the event
of an electrical short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This appliance is equipped
with a cord having a grounding wire with a grounding plug. The plug must be
plugged into an outlet that is properly installed and grounded.
WARNING - Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not completely
understood, or if doubt exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a
qualified electrician install an outlet near the appliance.
CONNECTING HOUSE POWER
6
CUSTOM FRONT TRIM OPTION
This hood comes with a stainless front trim installed. To replace and custom-
ize this panel, remove grease filters and the three Phillips screws located
behind the strip. If necessary, the front strip can be adjusted by loosening
the three Phillips screws and sliding the strip up or down.
Tighten screws when you have the strip properly placed.
For a custom front trim, a local cabinet shop can make a strip to match your

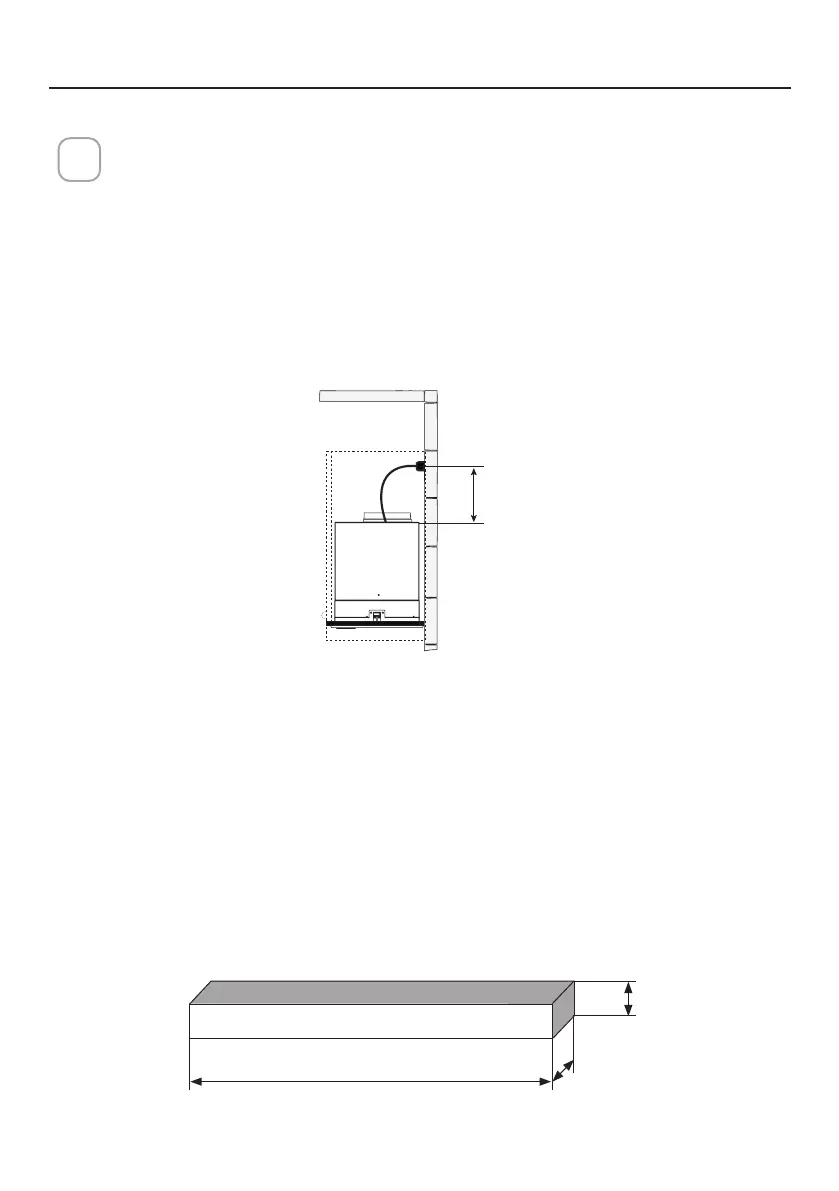

cabinets. The front strip dimensions are given in the illustration.
1 1/2"
13/16"
23 9/16" or 29 15/16"
