Factor ONE Disc - Page 11

Assembly Manual 07
3-13 3-14 3-15
3-17 3-18 3-19

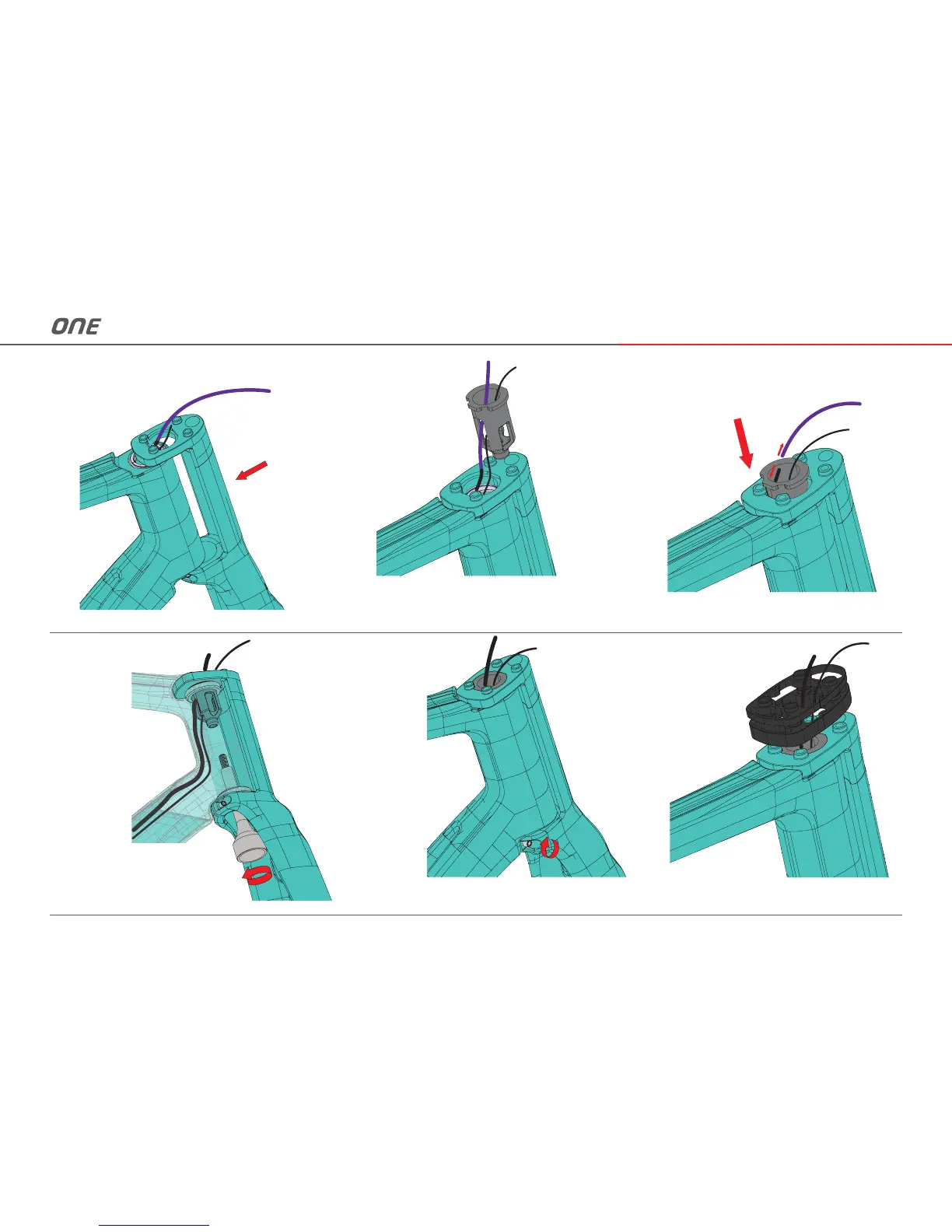

Insert the compression rod from
below. Use compression rod to adjust
the headset preload.
Secure the headset adjustment by tightening the
M5 Ti screw to 4 Nm.
Install the desired amount of headset spacers.
DISC
Maneuver fork into position taking care not to
damage Di2 cable & brake hose.
Route Di2 cable & brake hose through the largest hole
in the compression nut.
Install compression nut.
