Factor SLiCK - Armrest and Shifter Cable Configuration (4-3, 4-4, 4-6); Base Plate Height and Spacer Selection (4-7)

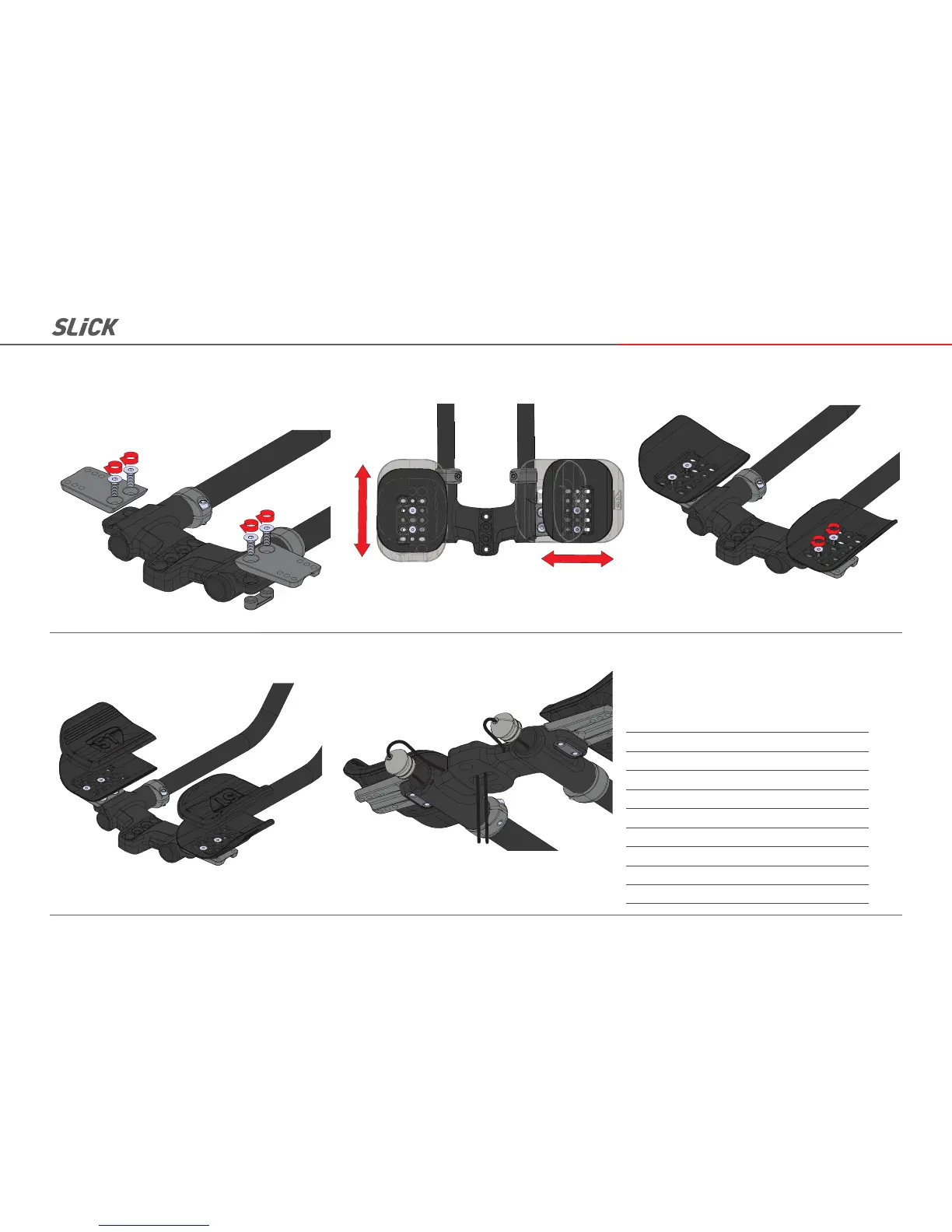

Install armrest plates and secure by tightening
M6x16L bolts to 6 Nm
Select the desired armrest cup position and secure by tightening M5x12L bolts to 4 Nm
3-54-4
4-7
Assembly Manual 07
4-3
Install armrest pads Route extension shifter Di2 cables through extension tower
Select desired base plate height and spacers. Attach extension
tower to top plate tightening M6 bolts to 8 Nm. Use the table
below to determine the correct bolt length.
4-5 4-6
Spacer
0
10
20
30*
30* + 10 = 40
30* + 20 = 50
30* + 30 = 60
Bolt + 1 mm Flat Washer
20
30
40
20
30
40
50
*30mm Tower Base Plate
