Factor SLiCK - Brake Inner Wire and Cover Installation (5-3, 5-4, 5-5); Bottom Bracket Installation; Bottom Bracket Preparation and Cleaning (6-1); Bottom Bracket Cup Pressing (6-2, 6-3)

5-55-4
6-3
Assembly Manual 11
5-3

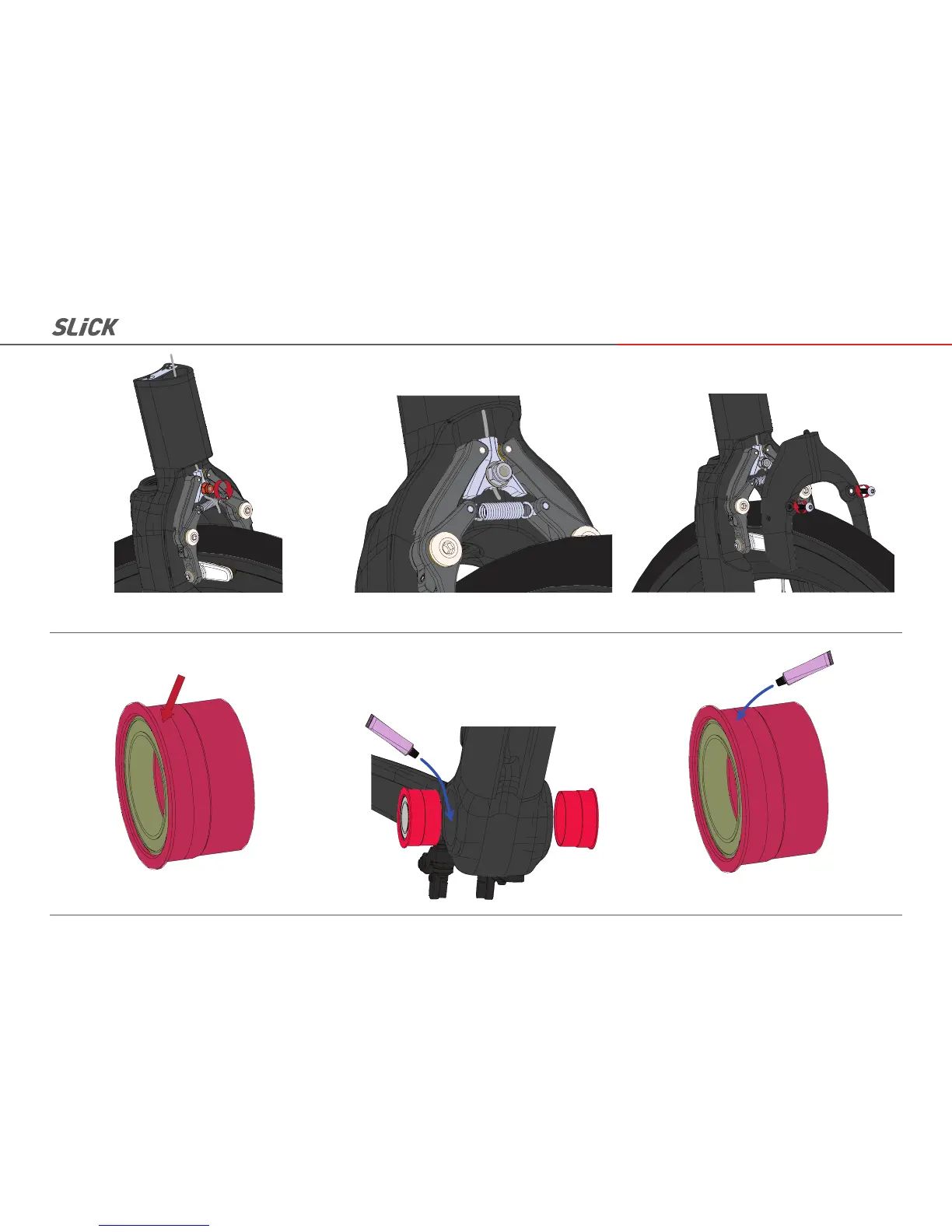

Clean the inside of the frame bottom bracket & the bottom
bracket cups with an isopropyl alcohol.
Apply Loctite 641 on the grooves of the both bottom bracket
cups.
Apply Loctite 641 inside the bottom bracket shell
and install the cups into the frame with BRT-002
bearing press from Enduro Bearings.
Cut the brake inner wire short enough to prevent it from
contacting the brake spring
Route brake inner wire through wedge and tighten 6-7 Nm
taking care not to change the wedge position
Install brake cover by tightening M4x10 bolts to 2 Nm
6-1 6-2
Bottom Bracket
