4-134-12
4-15
Assembly Manual 10
4-16

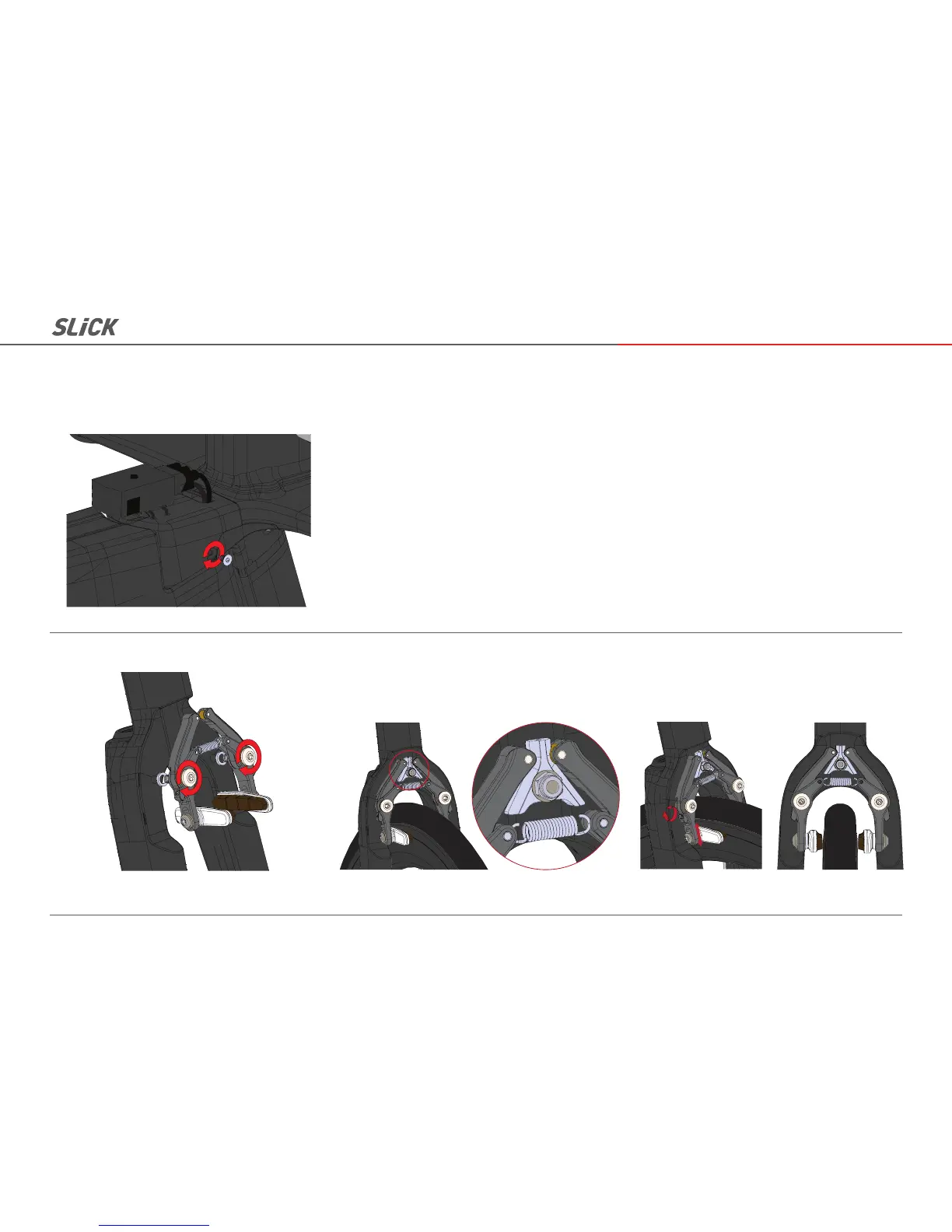

Install brake wedge. Use grub screws to adjust each brake arm until the brake pad is 2-3mm from the rim. It is very
important that the wedge is positioned between the rollers as pictured. Placing the wedge too high could cause the
brake arms to hit the brake cover, resulting in a unexpected loss of braking power.
Install front brake using M6 bolts taking care to place the
provided flat washers in between the fork and the brake mount.
Install stem cover and secure by tightening M3x5L
bolts to 0.5 Nm
5-1 5-2
Front Brake InstallationFront Brake Installation
