Adjust the set back and saddle angle to the desired
position. Tighten the M6 saddle clamp bolt to 12Nm.
1-4
Place the battery holders around the Di2 battery. The male
shell grooves must match with the female battery groove.
Slide 4 mm hex wrench through the hole under the top tube and use to guide the seat post wedge into position
Insert battery in the seatpost.
1-5

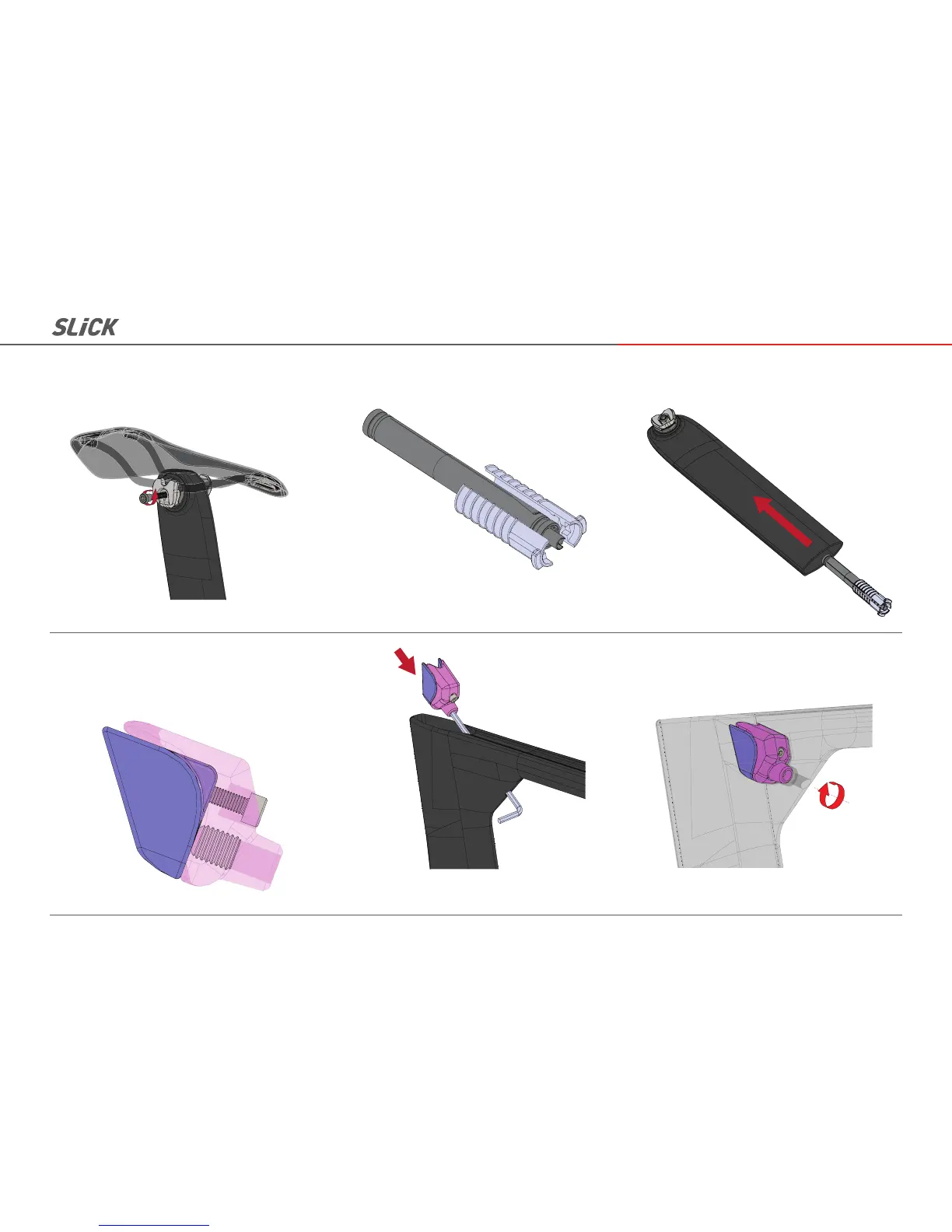

Assembly Manual 02
1-3
Before assembly, the wedge must be adjusted as
pictured. Keep in mind that the M4 bolt only holds the
wedge pieces together and plays no part in tightening
the seatpost.
1-6 1-7
