FAE VRTMT12 - Page 10

8

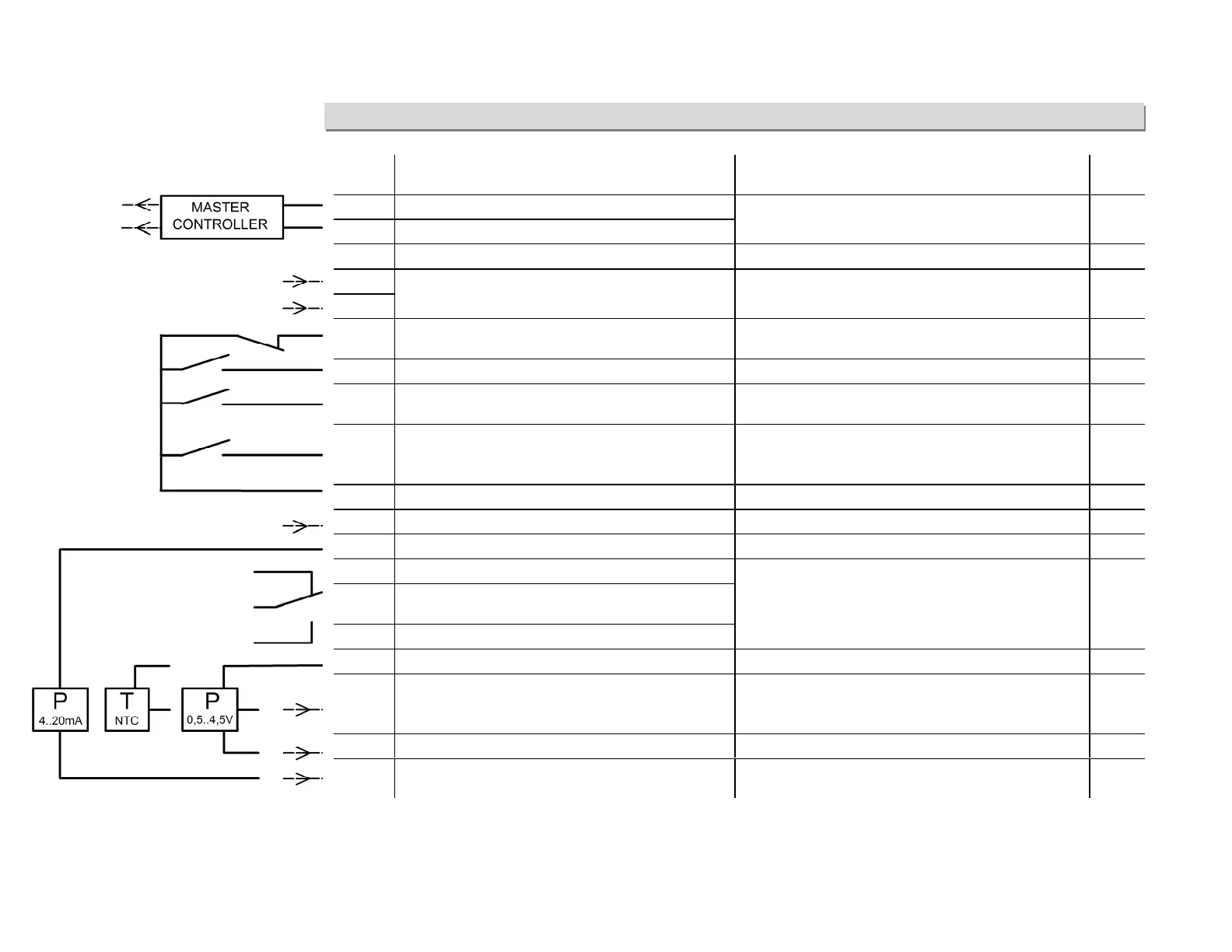

CONTROLS TERMINAL BOARD
Term. Description Application Page
T1+ Serial RS485, Modbus RTU - Slave
T1 - Serial RS485, Modbus RTU - Slave
Serial connection line to a Master controlled device 25
0V Ground I/O Mass I/O
IF
IF
Pwm FV, 2..20kHz input (Ri =500Ω, 5..24V)) Variable frequency command for mode slave
running
22
I 4 External emergency input Open immediately blocks the control. It can be
connected to the load temp. protecting device/s
I 3 Start/Stop input Programmable Start/Stop input 23
I 2 Limit Speed function input Closed modifies the adjusting modes. It is often
used for the night silenced operating
20
I 1 Direct/Reverse function input Open enables the Cool1 cooling mode. Closed
enables the Heat or Cool2 heating mode (to be set
on basic sett. menu)
22
0V Ground I/O Mass for the digital inputs
0.10 Analog input , type 0.10V (Ri = 40k Ω) 0..10V command for mode slave running 22
+V 12V power supply output = (max 30mA) 4..20mA pressure transducer power supply
NC Relay 1 closed norm. contact output
COM Relay 1 common contact output
(1A-250V~/3A-30V=)
NO Relay 1 open norm. contact output
Programmable output. With standard setting for
Defect, the relay is enabled (NO-COM eachother
closed) and is disabled by turning to the position
represented in the picture in emergency case.
24
+5V 5V power supply output = (max 15mA) Ratiometric press. transd. and NTC power supply
IN 1 Analogical input 1, type 0,5…4,5V / ntc
(10 kΩ @25°C, β3435), (Ri = 10 kΩ) / pwm 5..15V
Ratiometric pressure transducers / NTC sensor /
Pwm 100Hz type with variable average value
21-22
0V Ground I/O Mass for analogical input
4.20 Analogical input 1, type 4…20mA (Ri = 100 Ω) 4..20mA pressure transducers input,command for
mode slave running
21-21
