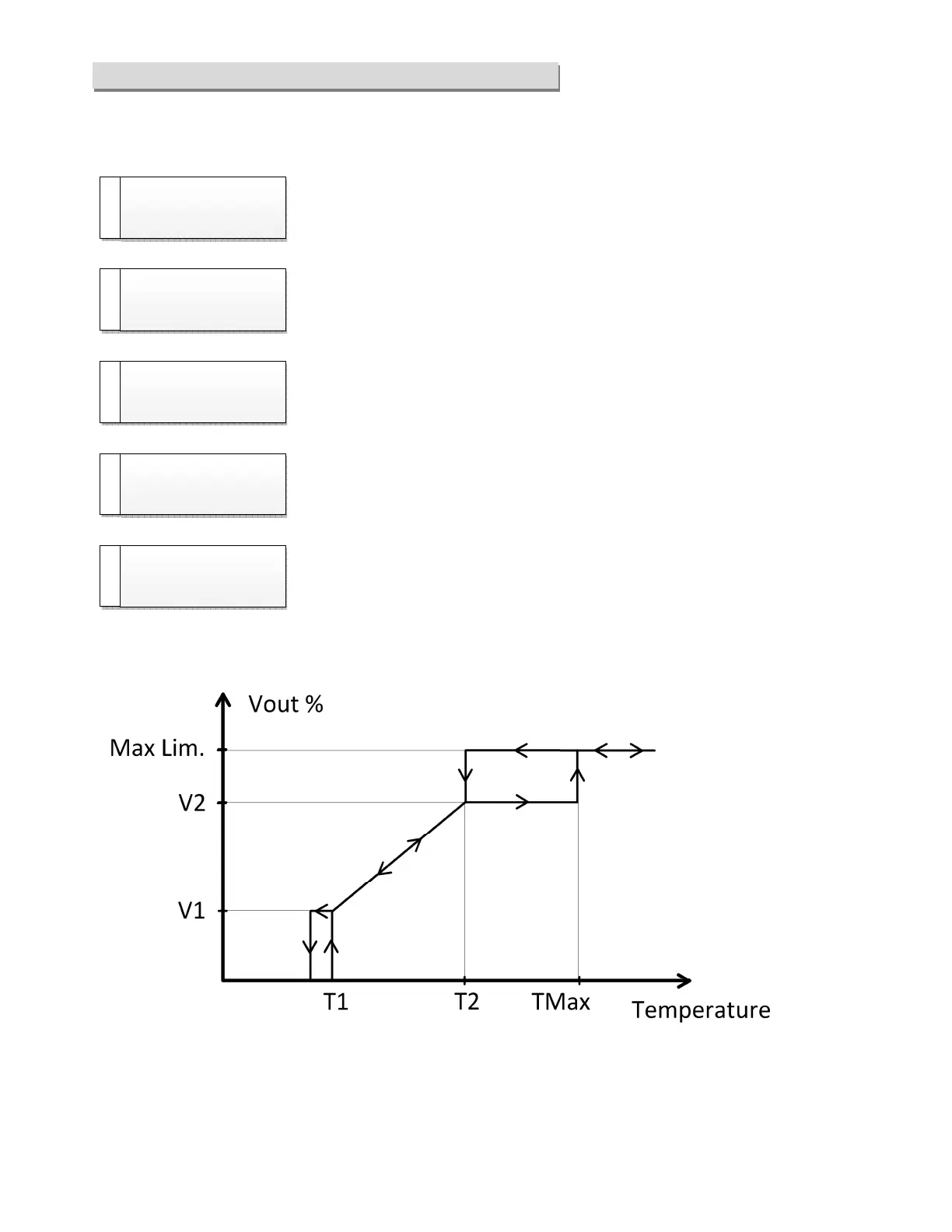

COOLING CYCLE PARAMETERS [CO1] – DRY COOLER
(example of parameterization with basic setting "mtNTC_L", see page 20)
Temperature of the voltage/V1 speed point.
Min. 0 °C Max. T2 Def. 22,0 °C
Temperature of the voltage/V2 speed point.
Min. T1 Max. T_MAX Def. 28,0 °C
Maximum production temperature, above this the output is at the voltage
MotorMaxLim.
Min. T2 Max. 95 °C Def. 29,0 °C
Voltage/speed of the temperature point T1.
Min. MotorMinLim Max. V2 Def. 20%
Voltage/speed of the temperature point T2.
Min. V1 Max. MotorMaxLim Def. 90%
CHILLER
CHILLER
DRY COOLER
T1
22.0
°C
[IC]
DRY COOLER
T2
28.0
°C
[IC]
DRY COOLER
T_MAX
29.0
°C
[IC]
DRY COOLER
V1
20
%
[IC]
DRY COOLER
V2
90
%
[IC]
