HEATING CYCLE PARAMETERS [HEA] – DRY COOLER
(example of parameterization with basic setting "mtNTC_L", see page 20)
Caution: The heating cycle can be replaced by a second cooling cycle [CO2] by changing the setting of the
parameter Second Mode (pag.22).

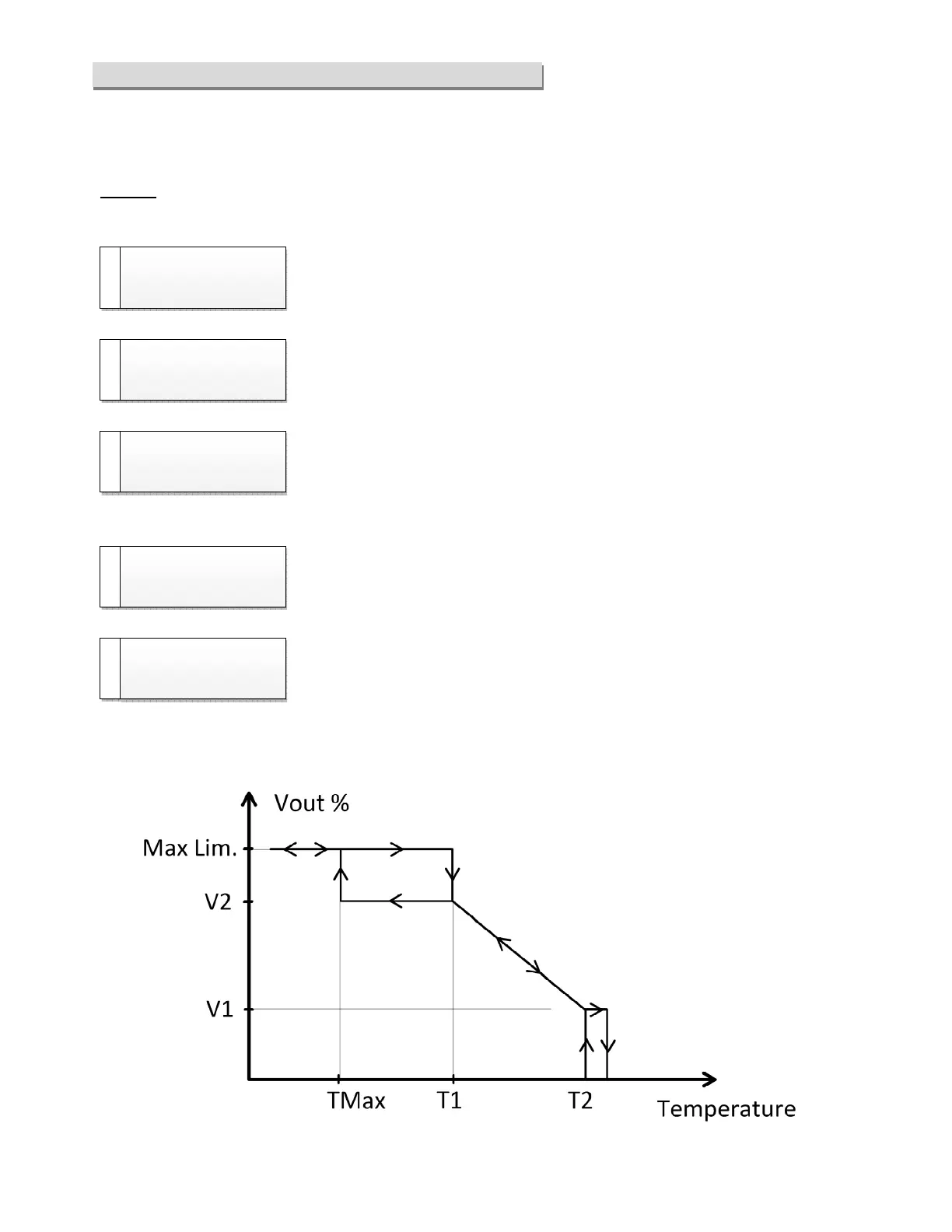

Temperature of the voltage/V2 speed point.
Min. T_MAX Max. T2 Def. 22,0 °C
Temperature of the voltage/V1 speed point.
Min. T1 Max. 95 °C Def. 24,0 °C
Maximum production temperature, over this the output is at the voltage
MotorMaxLim.
Min. 0 °C Max. T1 Def. 21,0 °C
Voltage/speed of the temperature point T2.
Min. MotorMinLim Max. V2 Def. 20%
Voltage/speed of the temperature point T1.
Min. V1 Max. MotorMaxLim Def. 90%
CHILLER
CHILLER
DRY COOLER
T1
22.0
°C
[IH]
DRY COOLER
T2
24.0
°C
[IH]
DRY COOLER
T_MAX
21.0
°C
[IH]
DRY COOLER
V1
20
%
[IH]
DRY COOLER
V2
90
%
[IH]
