HEATING CYCLE PARAMETERS [HEA] - CHILLER
(example of parameterization with basic setting "mp420_50", see page 20)
Caution: The heating cycle can be replaced by a second cooling cycle [CO2] by changing the setting of the
parameter Second Mode (page 22).

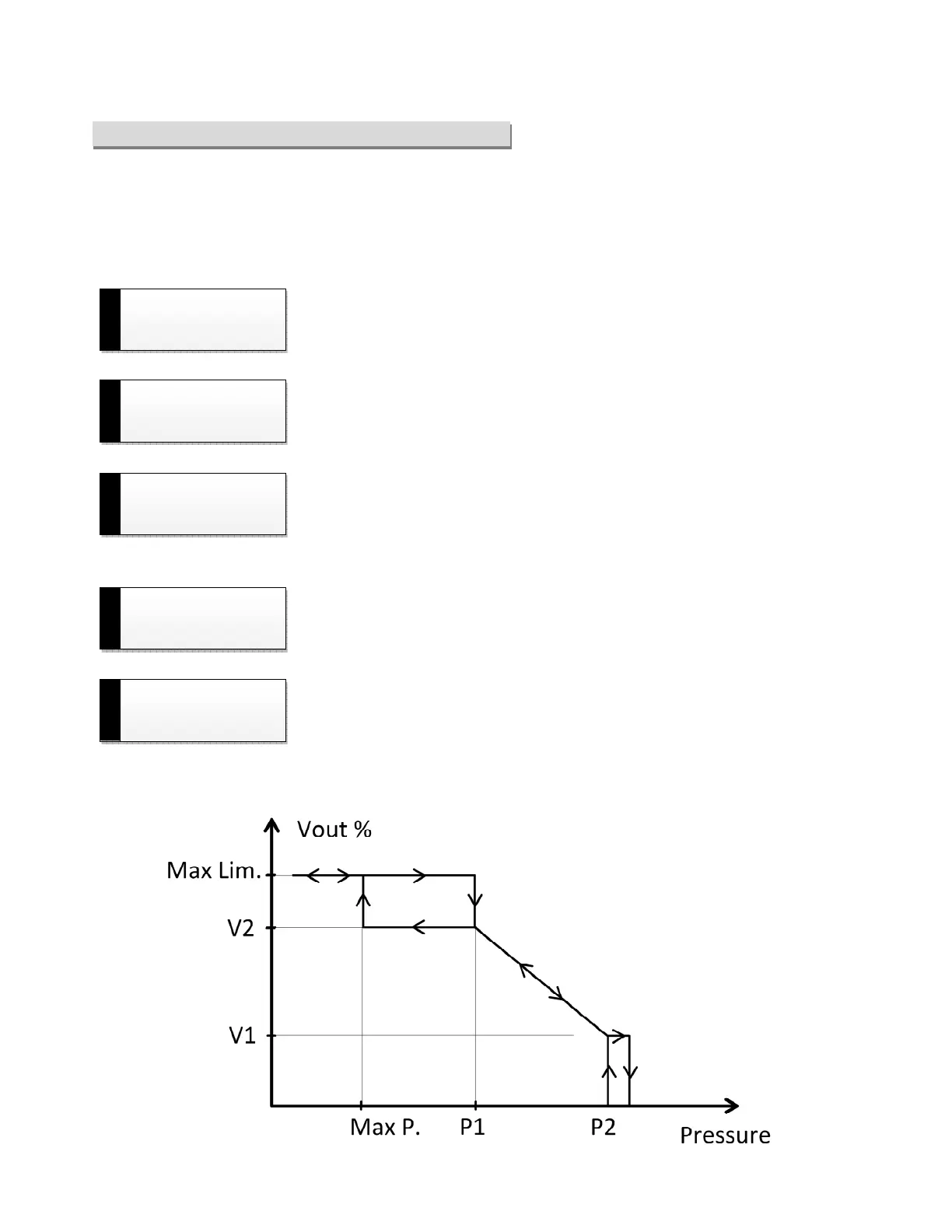

Pressure of the voltage/speed V2 point.
Min. P_MAX Max. P2 Def. 7 bar
Pressure of the voltage/speed V1 point.
Min. P1 Max. Full Scale Def. 11 bar
Maximum production pressure, below this the output is at the voltage
MotorMaxLim.
Min. 0 bar Max. P1 Def. 5 bar
Voltage/speed of the pressure point P2.
Min. MotorMinLim Max. V2 Def. 20%
Voltage/speed of the pressure point P1.
Min. V1 Max. MotorMaxLim Def. 90%
CHILLER
CHILLER
11.0
P2
[IH]
bar
CHILLER
20
V1
[IH]
%
CHILLER
5.0
P_MAX
[IH]
bar
CHILLER
90
V2
[IH]
%
CHILLER
7.0
P1
[IH]
bar
