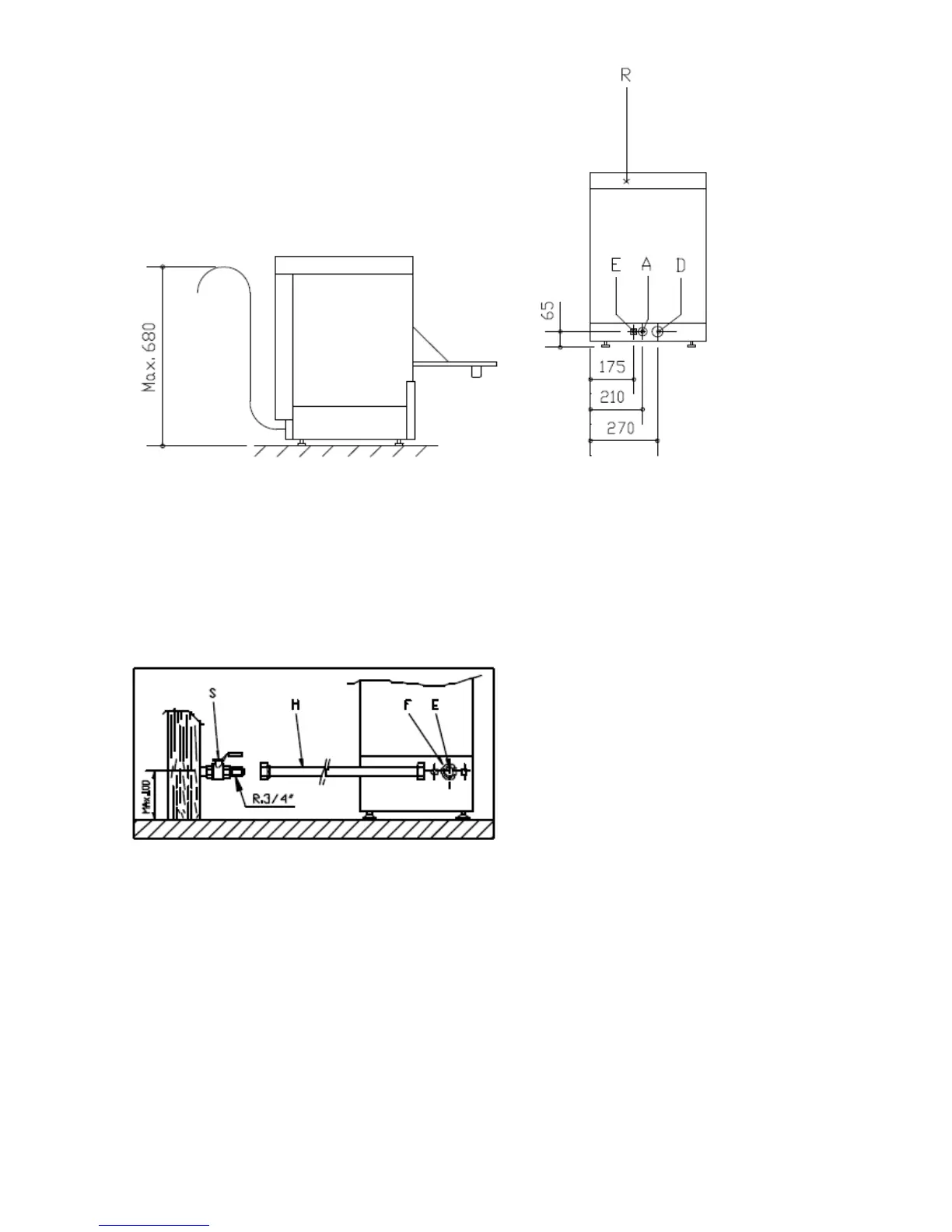

A= Water inlet
D= Drain hose 25mm in diameter and must be installed in accordance with AS/NZS3500.2 (drainage) by means of
coupled connection to a DN40 or larger pipe.
E= Electric s. Cable
NOTE: must be installed in accordance with AS/NZS3500.1 (water
service supply) including installation of the supplied backflow
prevention device
Figure 3
S = Stopcock / F = Filter / H= Fagor supplied hose and backflow prevention device / E = Electrovalve /
B = Electropump / C= Drain collector / D= Drain hose
2.3 Dynamic pressure during rinse is 2÷4 Kg/cm2. If the pressure is less than 2
kg/cm2 (28 PSI), an electrical pressure pump should be installed, as shown in
Figure 4.
