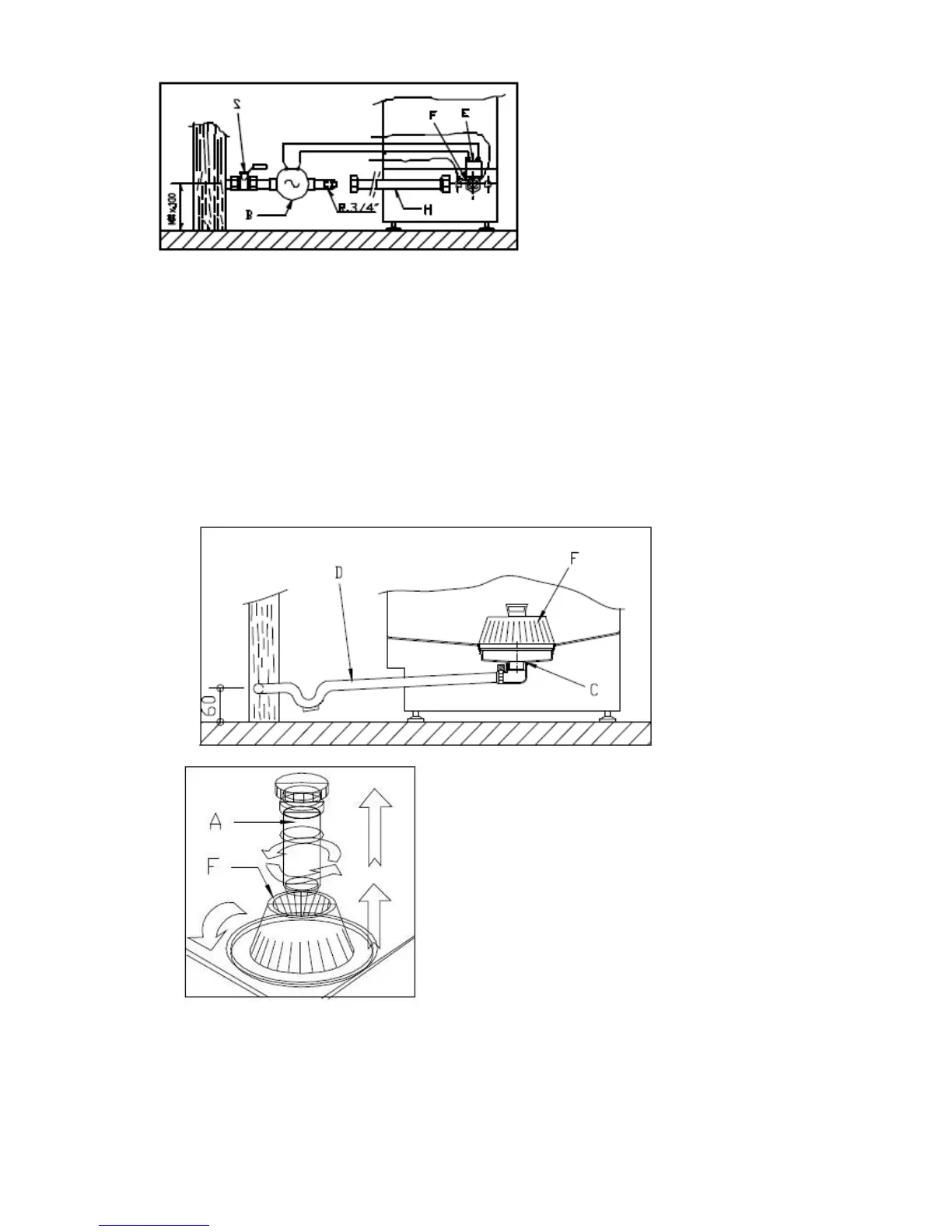

Figure 4
S = Stopcock / F = Filter / H= Fagor supplied hose and backflow prevention device / E = Electrovalve / B
= Electropump / C= Drain collector / D= Drain hose
2.4 When the water hardness level is above 10º F, a water softener should be
installed.
2.5 A stopcock should be fitted below the machine’s water intake.
2.6 Fix the drain hose as shown in Figure 5 and fit a siphon pipe to prevent bad
smells. Please note the maximum height of the drain hose indicated on Figure 2.
Do not extend the length of the drain hose supplied with your machine.
Figure 5
A=Overflow / C=Drain collector / D=Drain hose / F =Filter
2.7 Connect the electrical connections, referring to Figures 2, 6 and 7.
2.8 For access to the connection strip (R), remove the cover (T) and the rear panel
(P).
