— Place your hob in the support cabinet
opening and carefully draw the hob towards
you.
— Re-position the burner heads, burner
covers and pan supports on the hob.
Connect the hob to the gas supply (See “Gas
Connection” chapter) and to the power
supply (See “Electrical Connection” chapter).
— If you wish, you can immobilise the hob
using the four mounting brackets (supplied
with screws)
(Fig. 02) to attach them to the
four corners of the housing. You must use the
holes provided for this purpose, according
to the diagram above (Fig. 02) .
— Stop screwing when the mounting bracket
becomes deformed.
Do not use an electric screwdriver.
Fig. 01
Fig. 03
Screw
•
FLUSH FITTING RECOMMENDATIONS
Mounting brackets
A
A
Cabinet

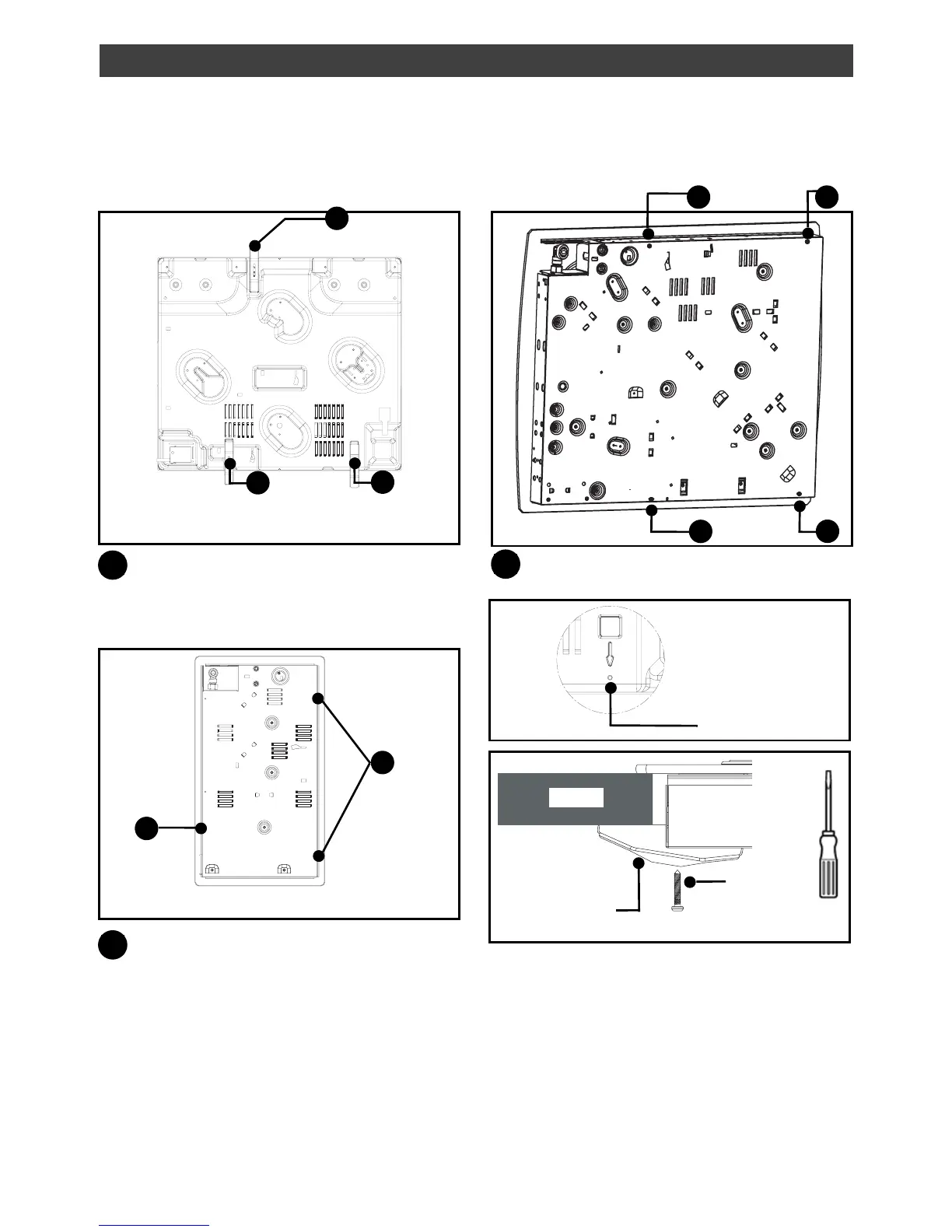

1/ INSTALLING YOUR APPLIANCE
Fig. 02
Mounting holes
located using
arrows
A
Fig. 01
Mounting holes
A
Mounting holes
A
A
• 4 Burner Model
(underside view of the housing)
• 3 Burner Model (underside view
of the housing)
• 2 Burner Model
(underside view of the housing)
A
A
A A
Fig. 01
Mounting bracket
