7
4.7 ELECTRICAL CONNECTION
− To access to the electrical connection block (R) (Fig. 1), remove the top cover (T) (Fig. 1) and the
rear panel (P) (Fig. 1). Connect the wires as shown in figure 6. Insert the power cord through the
cord holder (E) (Fig. 1) and make sure to leave enough cable to remove the electrical panel from
the front for service. Tighten the connections.
− Leave free ≥ 39” (≥ 1000 mm) of power cord from the rear to facilitate cleaning of the location of
the glass-washer.
− Install a circuit breaker according to required consumption guidelines (Page 1) and data plate.
− The machine must be grounded.

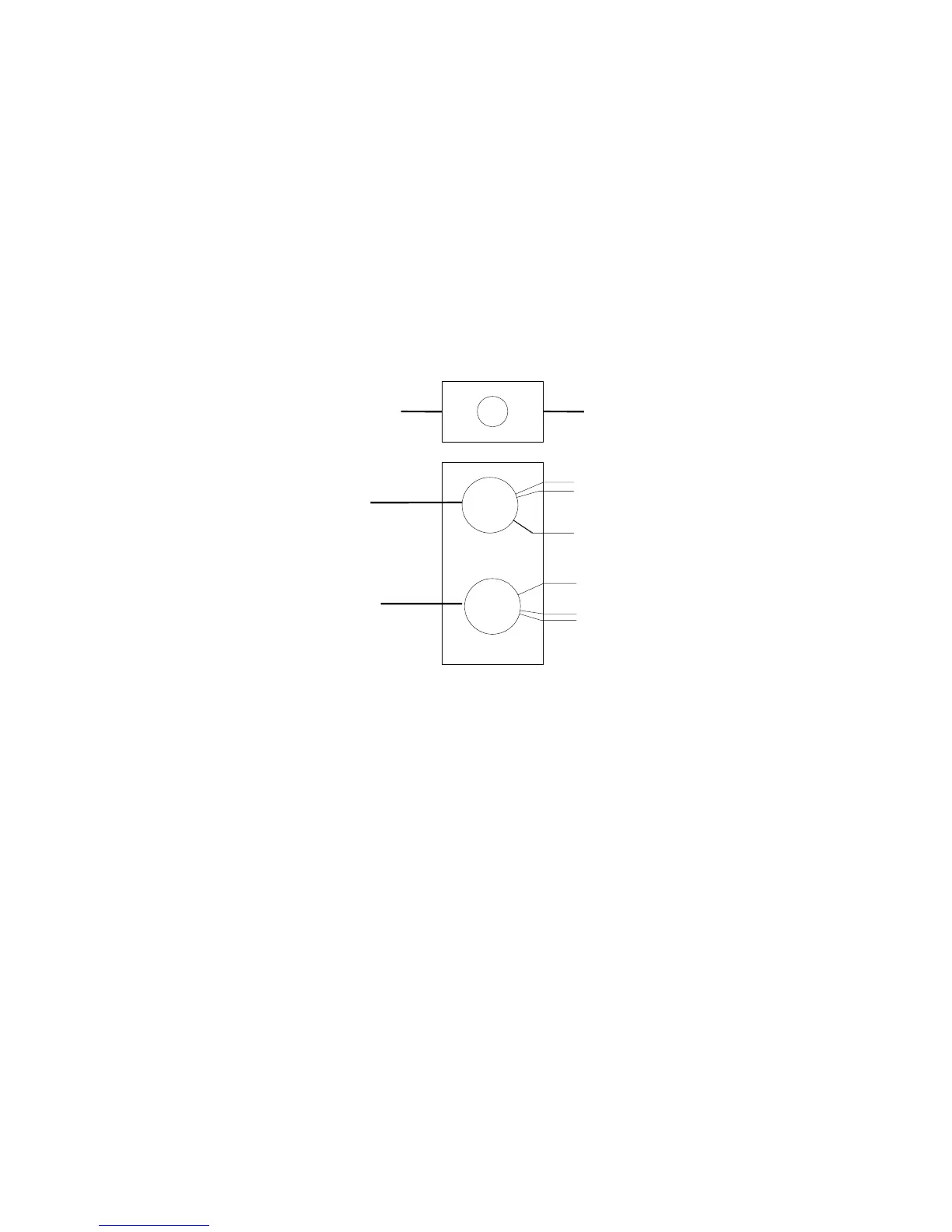

Fig. 6
WARNING: Electrical Shock Hazard
It is the personal responsibility and obligation of the customer to contact a qualified electrician to
assure that the electrical installation is adequate and is in conformance with the National Electrical
Code, ANSI / NFPA 70 – latest edition and all local codes and ordinance.
N
L
BLACK CAP – Red Wire
BROWN CAP – Red Wire
BLUE CAP – Red Wire
BLUE CAP - Red Wire
Neutral Input
Line Input
Yello
Green
Ground Input
Terminal Block Connection
208-220-240V 1Ph
Ground
To Next Page
