Drive modules
188
3.
DRIVE MODULES
Compact drives
166
DDS
HARDWARE
Ref.1310
In ACD/SCD/CMC 1.08/1.15 models, the jumper between (Ri and L+)
may be removed and an external resistor may be connected between (Re
and L+) for dissipating energy.

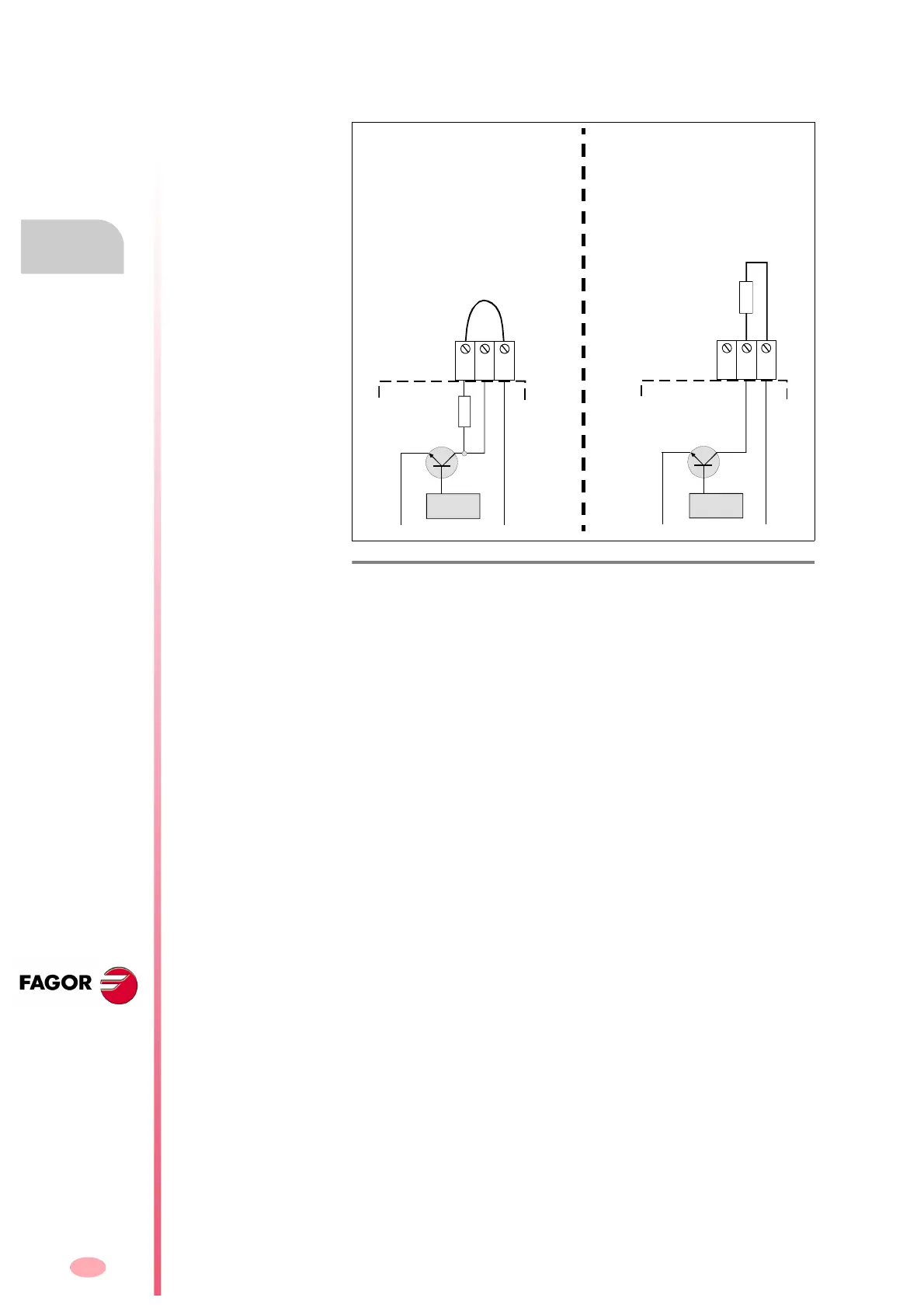

F. H3/116
Ballast resistor configurations.
C
ONTROL
L -
L +
R.int
L+ReRi
ER+TH
L -
L +
R.ext
C
ONTROL
L+ReRi
ER+TH-18/x+FAN
Configuration for the internal
Ballast resistor
Configuration for the external
Ballast resistor
Possible in all models
ACD/SCD/CMC x.xx
SCD 2.75
Only possible on models:
ACD/CMC 1.08/1.15
