9. Daily Cleaning
9-1. Assembly & Disassembly and Cleaning of Dust Bin:
Assembly & Disassembly
of Dust Bin:
1.Extract the dust bin
by pressing the key on
it. (Refer to Figure 1
and Figure 2)
2.Press the red button on
it, and then the blower
will pop up
automatically. (Refer
to Figure 3)
3.Reverse the blower,
release 2 fasteners and
open the cover. (Refer
to Figure 4 and Figure
5)
4.Open the bracket and the
filter will appear.
(Refer to Figure 6)

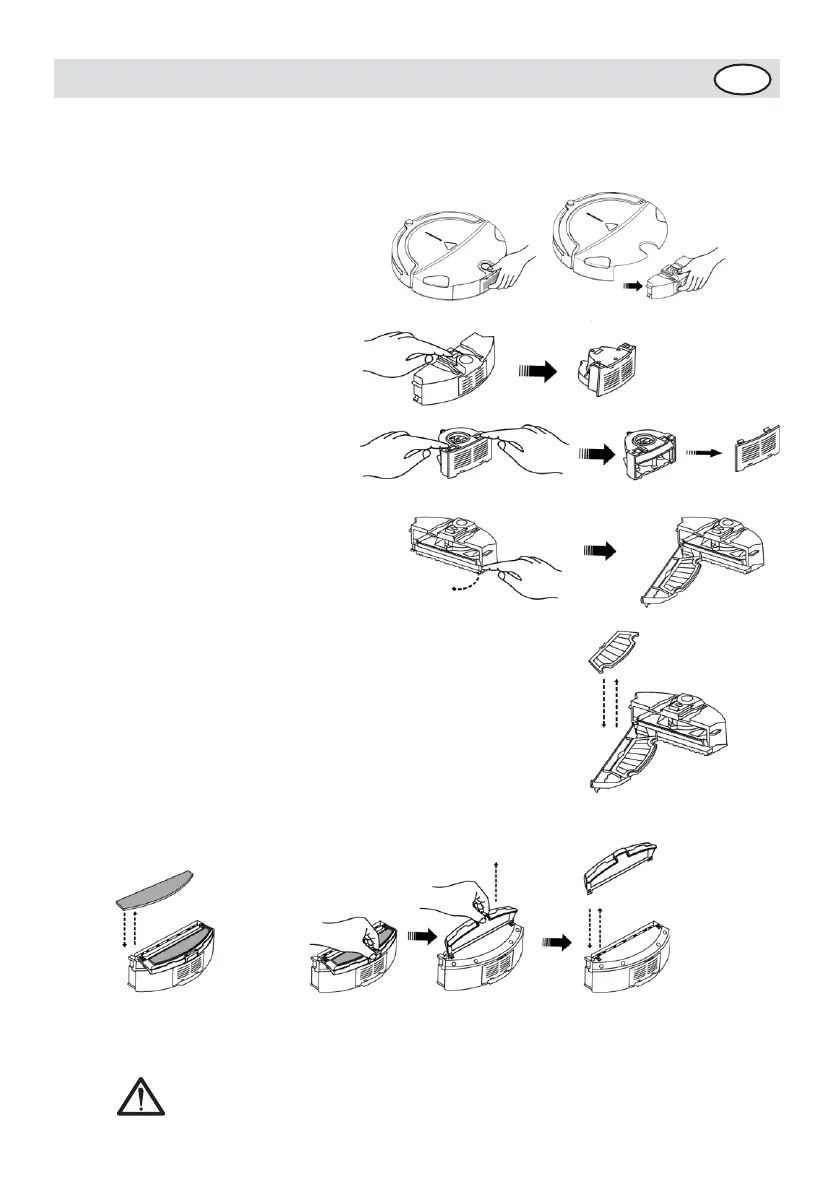

Figure 1
Figure 2
Figure 3
Figure 4 Figure 5
Figure 6
5.Change a new filter, press the semicircle
bracket by one hand to release the fastener
from the filter screen, and remove the filter
grid by the other hand and then change a new
one. (Refer to Figure 7)
6.Reverse the dust bin, tear out the mop,
release the trailing bar and then unplug the
right and left fasteners on the bottom of the
dust bin (Refer to Figure 8 and Figure 9).
All parts should be assembled as before
disassembly.
Figure 7
Figure 8 Figure 9
Don’t use the mop and trailing bar on the carpet or
