13
CHAPTER
CHAPTER
4
4

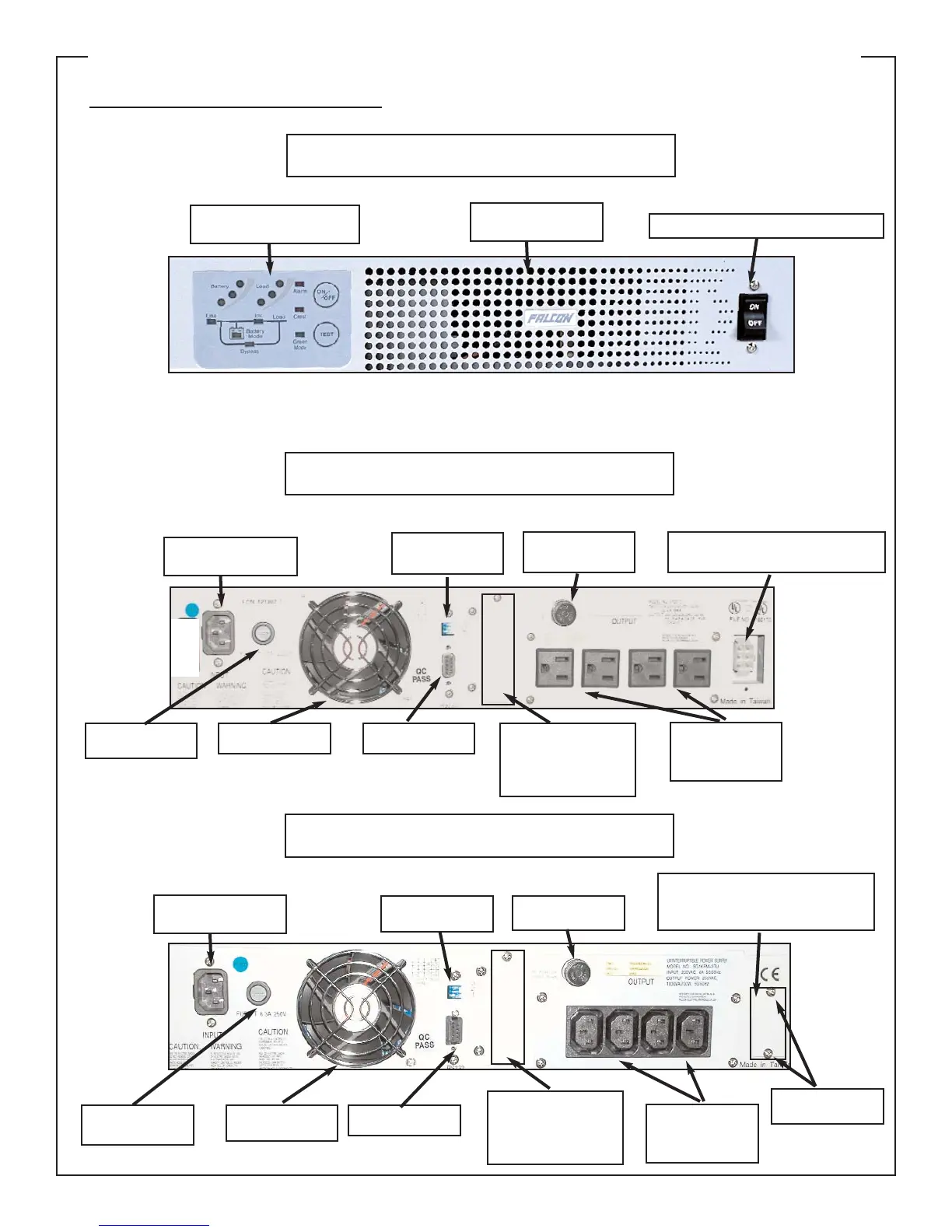

FRONT & REAR PANEL DETAILS
SG1KRM-1TU
Typical Rear Panel Overview
SG1KRM-2TU
Typical Rear Panel Overview
Power Cord Inlet
(120Vac only)
Input Fuse
(15A)
Cooling Fan
Output Voltage
Select Switch
RS-232 Port
Battery Fuse
(30A)
Output
Receptacles
(4) 5-15R
Extended Battery Connector
(shown with cover plate removed)
Input Fuse
(8A)
Cooling Fan RS-232 Port
Output
Receptacles
(4) IEC320
Power Cord Inlet
(200-240Vac only)
Output Voltage
Select Switch
Battery Fuse
(30A)
Extended Battery Connector
(Primary Battery Inside UPS)
(shown with cover plate installed)
Typical Front Panel Overview
(All models)
Cover Plate
Screws
Communications
Option Card Slot
(shown with cover
plate installed)
Communications
Option Card Slot
(shown with cover
plate installed)
Control & Display Panel
(See Chapter 3, page 9)
Cooling Vents
(exhaust)
Power Switch / Input Circuit Breaker
To Next Page
