FALEX 400 - Page 14

13
Section 1: General Information

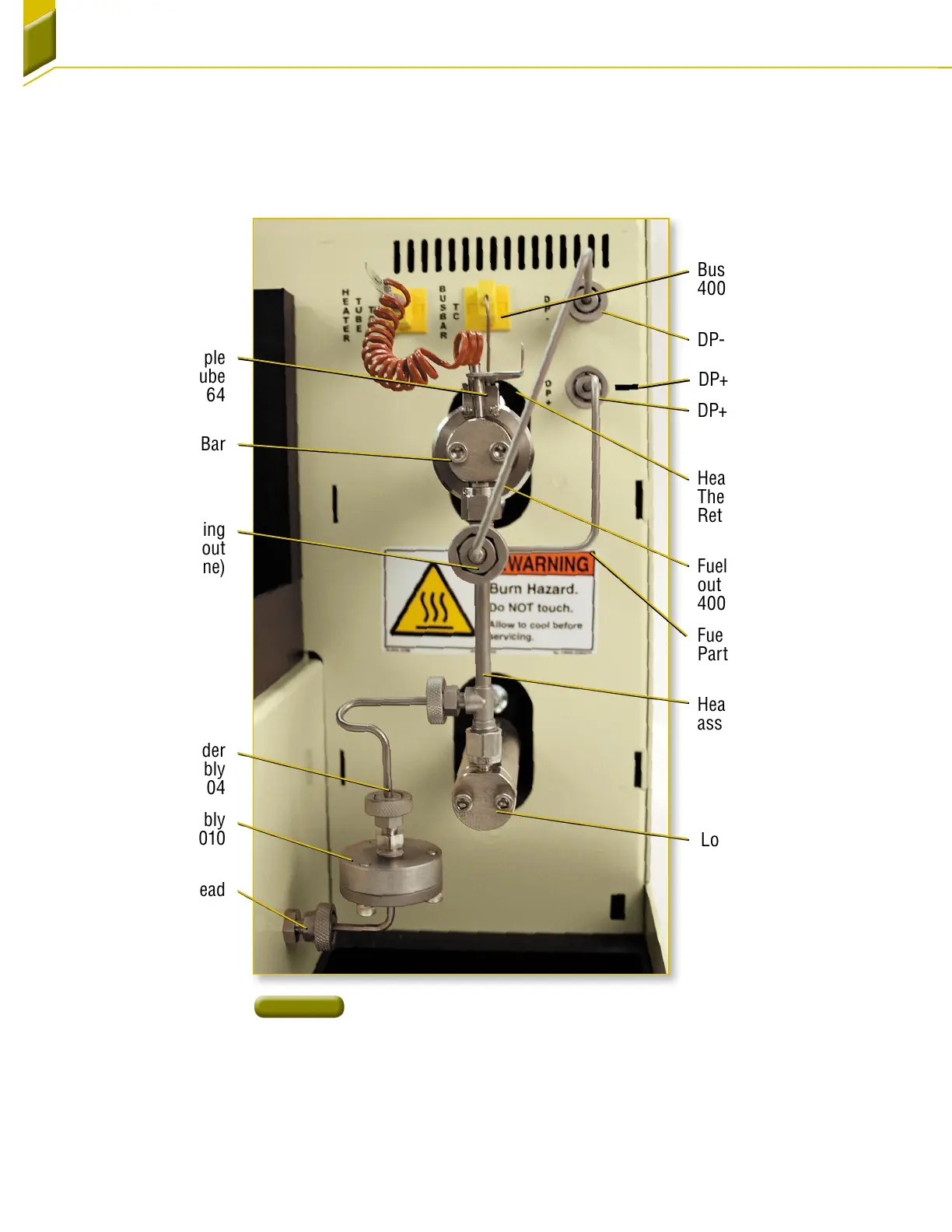

Figure 6
Sample Test Area
Thermocouple
- heater tube
650-009-064
Fuel heater tube holder
input line assembly
400-105-004
Upper Bus Bar
Pre-Filter assembly
400-105-010
DP Filter Housing
(behind fuel out
line)
Pre-Filter Bulkhead
Bus Bar Thermocouple
400-103-004
Fuel heater tube holder
output line assembly
400-105-005
DP- Port (Out)
Fuel Bypass Line
Part of 400-103-009
Heater Tube
Thermocouple
Retaining Clip
Heater tube holder
assembly
400-103-009
DP+ Port (Out)
DP+ Calibration Line
Lower Bus Bar
