FANATEC CSL Elite Pedals User Manual

7

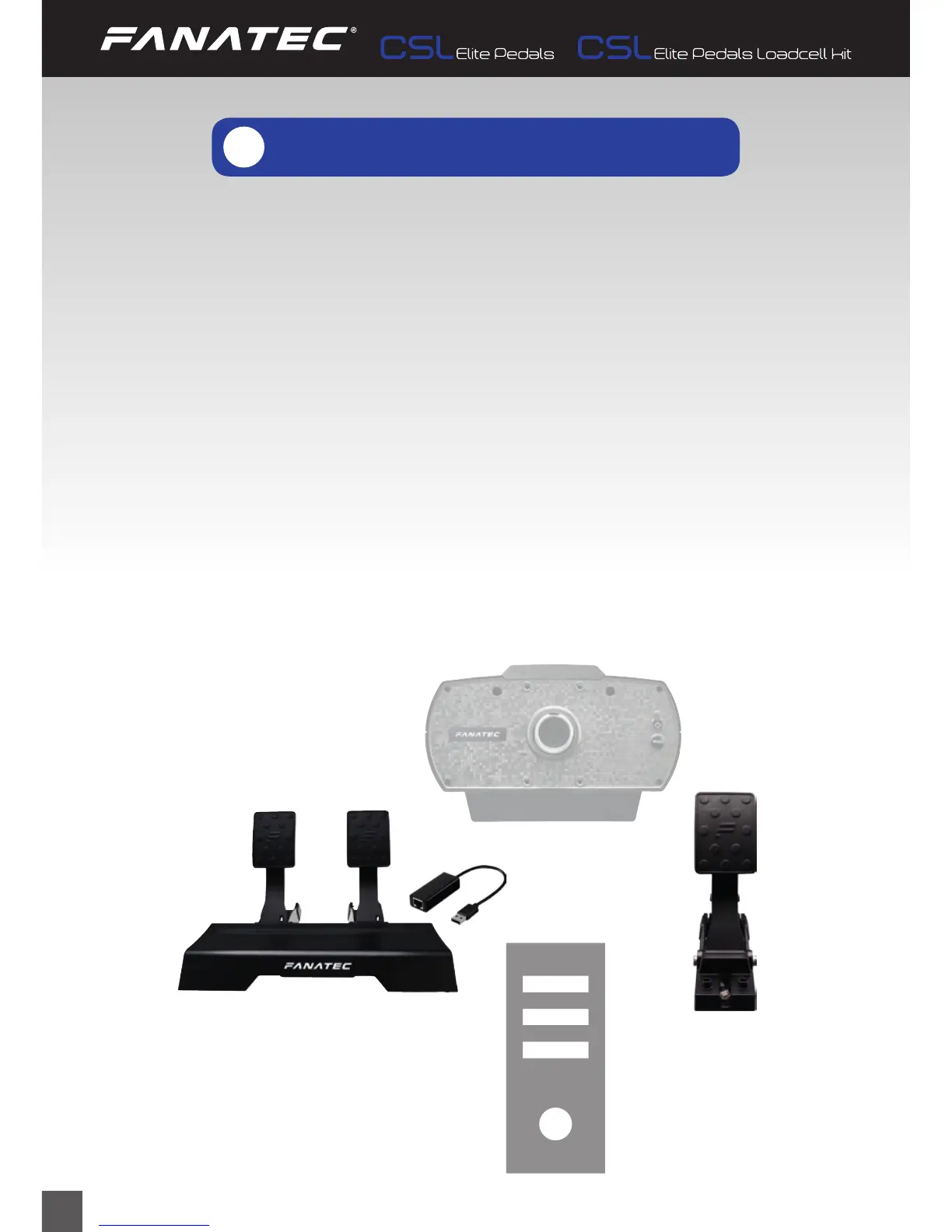

INTRODUCTION
The CSL Elite Pedals are an all new and innovative pedal set which offer a
brake pedal, a throttle pedal and a heel rest made from solid metal.
The CSL Elite Pedals can be connected to Fanatec Wheel Bases like the CSL
Elite Wheel Base or the ClubSport Wheel Bases and is immediately compatible
to PC and consoles (please check the compatibility descriptions of your used
Wheel Base for more details). Beyond that the CSL Elite Pedals can be con-
nected to the ClubSport USB Adapter to establish a direct connection to PCs
independent from the used Wheel Base or wheel.
The CSL Elite Pedals Loadcell Kit is an upgrade-product for the CSL Elite Ped-
als which add a loadcell brake and make the original brake becoming the new
clutch pedal. The loadcell brake provides a wide range of adjustment possibili-
ties on hardware as well as on software side.
On top the Loadcell Kit comes with an own electronics module adding an USB
to PC connection port as well as a handbrake connection port to the pedal sys-
tem - of course the CSL Elite Pedals LC can stil be connected to Wheel Bases
and wheels.
2

FANATEC CSL Elite Pedals Specifications

General

Brake Pedal	Progressive resistance with optional load cell upgrade
Compatibility	PC, PlayStation, Xbox (with compatible wheel base)
Material	Steel
Load Cell	Optional (CSL Elite Pedals Loadcell Kit)
Resolution	12-bit resolution (4096 values)
Clutch Pedal	Optional (CSL Elite Pedals Loadcell Kit required)
Connectivity	direct connection to compatible Fanatec wheel base
