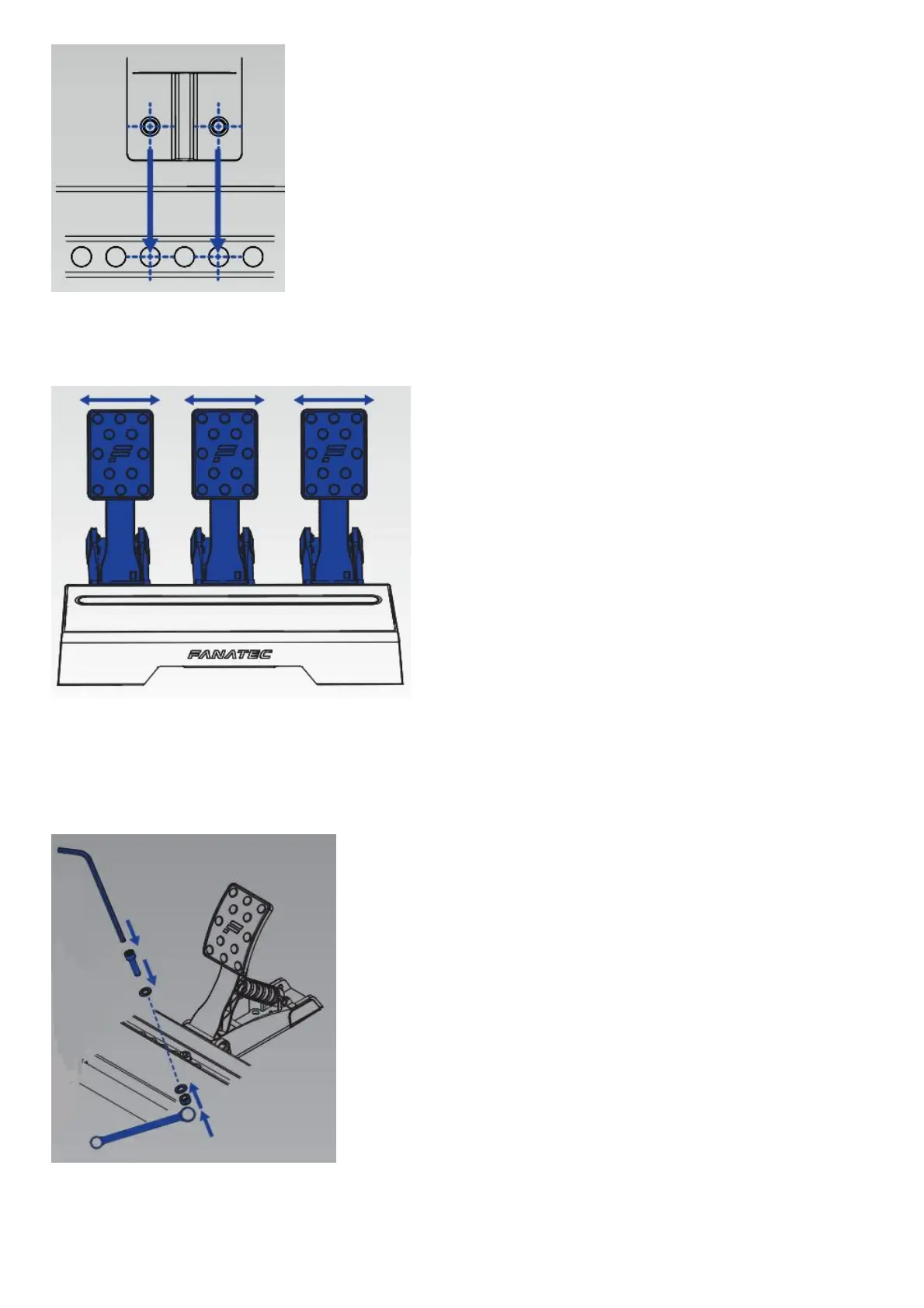

Try different positions for the pedal units to find your favorite adjustment.
Insert the M8 screws with washer (K) from top side through the heel rest and pedal units, counter with washer and nut
(K) from bottom side. Tighten the assembly by using the Allen Key 6 mm and the wrench 13 mm from original CSL
Elite Pedals package content. When done insert the slot cover into the heel rest.
Remove the original CSL Elite Pedals electronics module by loosening the four small screws on the sides with Allen
Key 2 mm (C). Insert the CSL Elite Pedals LC electronics module (A) from Loadcell Kit package content and mount it
