FANATEC CSL Elite User Manual

– 5x Elastomer spring shore 65 (pre-assembled, soft) (F)
– 5x Elastomer spring shore 85 (medium) (G)
– 5x Elastomer spring shore 95 (hard) (H)
– 3x Anti-skid stickers for pedal plates (I)
– 1x Clutch limiter pad (J)
– Mounting screws, nuts and washers (K)
– Stabilizer bars with spacers (L)

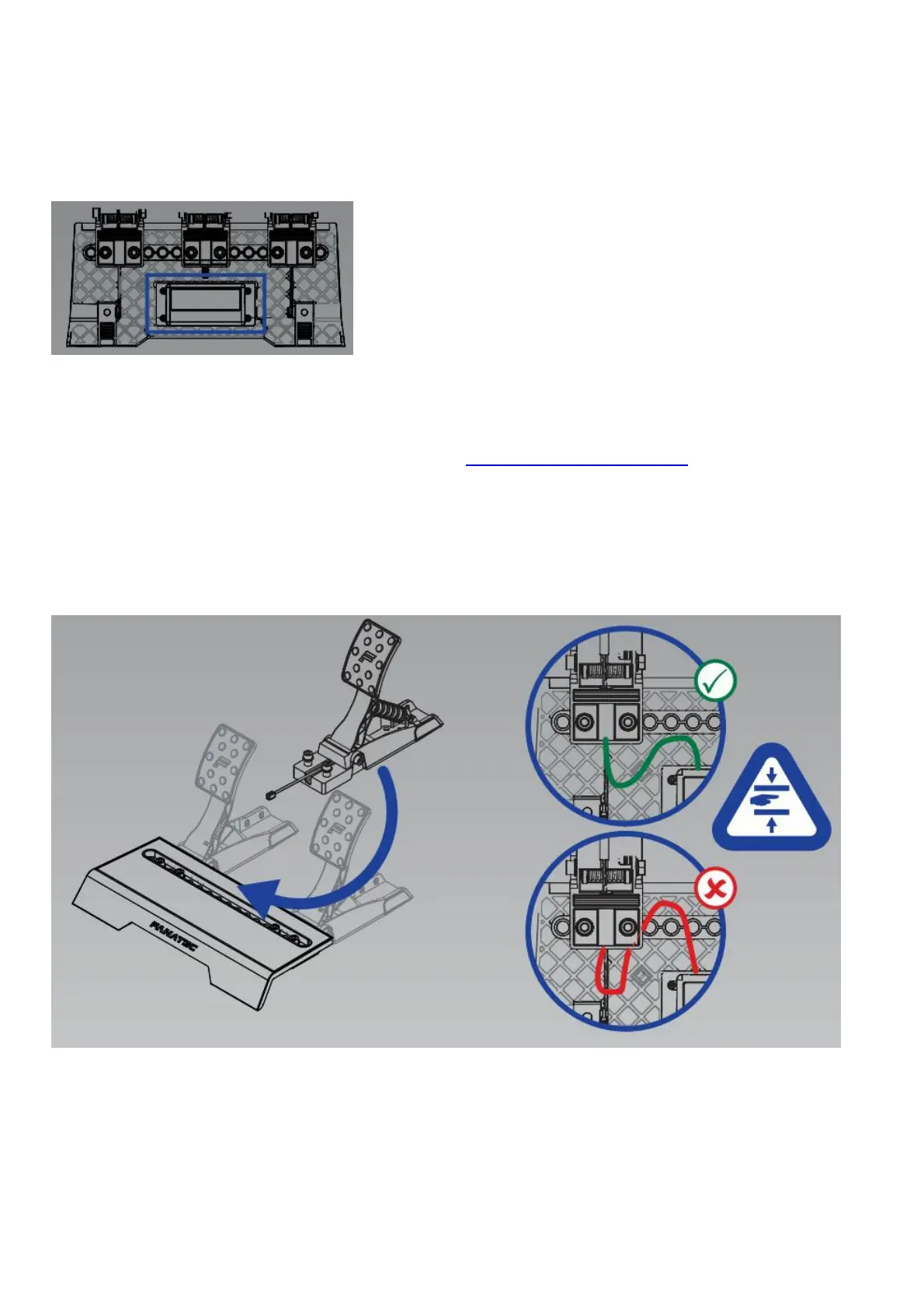

Label on bottom side
MANUAL
For detailed information please download the manual from www.fanatec.com/downloads. This is just a Quick
Guide and you will miss a lot of features if you don’t read the manual.
ASSEMBLY
Put together the pedal unit ‘loadcell brake’ (B) with heel rest of original CSL Elite Pedals (optional). Avoid clamping
the cables of the pedal units!!
Align the poles of the pedal unit with the holes of the heel rest to find the correct positions.

FANATEC CSL Elite Specifications

General

Compatibility	PC, PlayStation 4
Force Feedback	Yes
Connectivity	USB
Wheel Base	CSL Elite Wheel Base
Wheel Rotation	1080°
Materials	Metal, Plastic
Mounting	Table clamp or rig mounting
