Copyright 2008 Fanimation, Inc. 2008/06
The Involution
™
Fan – FP4520**
10983 Bennett Parkway
Zionsville, IN 46077
Toll Free (888) 567-2055
FAX (866) 482-5215
Outside U.S. call (317) 733-4113
Visit Our Website www.fanimation.com

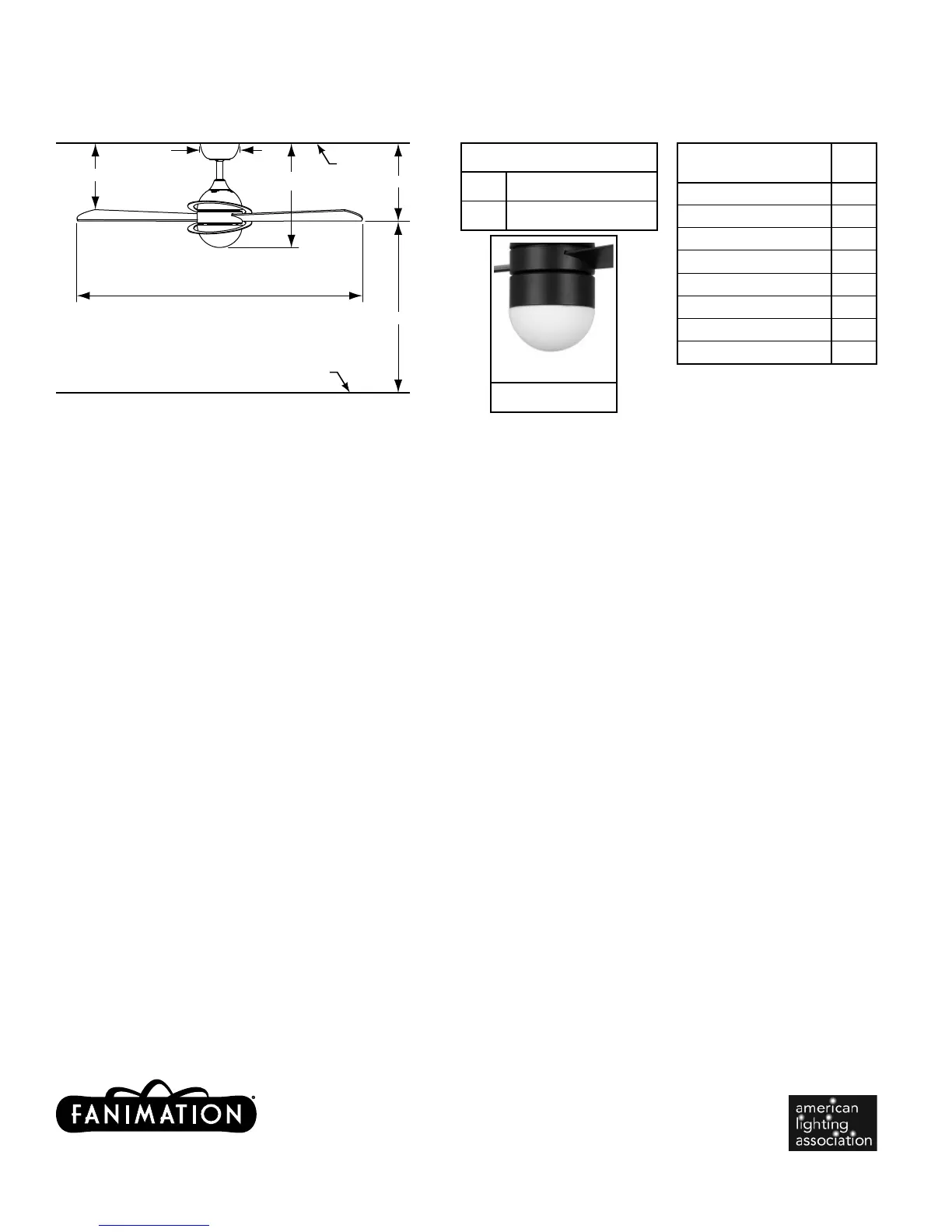

Distance from Ceiling
to Bottom of Fan
A
Fan w/6˝ downrod 17˝
Fan w/12˝ downrod 23˝
Fan w/18˝ downrod 29˝
Fan w/24˝ downrod 35˝
Fan w/36˝ downrod 47˝
Fan w/48˝ downrod 59˝
Fan w/60˝ downrod 71˝
Fan w/72˝ downrod 83˝
7´ min
Floor
Ceiling
Blade Sweep = 52˝ dia
Net Hanging Weight: 20 lbs
6˝dia
14° Blade Pitch
11˝
13˝
Dimensions shown in inches
Available Finish
OB Oil-Rubbed Bronze
SN Satin Nickel
Optional Light Kit
LK4520**
A
INSTALLATION REQUIREMENTS:
Ceiling fan attaches to electrical junction box securely anchored and capable of withstanding a load of at least 50 lbs.
Fan may be assembled without the Decorative Rings for a clean look.
ELECTRICAL REQUIREMENTS:
Ceiling fan requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit.
MOTOR SPECS:
153 x 15 motor is designed for optimal performance with this fan.
FAN SPEEDS:
4 fan speeds with reversing switch (on top of the motor). High – 160 rpm; Med High – 130 rpm; Med – 100 rpm; Low – 60 rpm
CONTROL OPTIONS:
The 4-speed fan-only, wall control (CW40) is included. Reversing switch located inside lower fan housing. Installation and
operating instructions provided with control. Optional controls are: C1 and C2 wall controls; C4 remote with receiver.
LIGHTING OPTION – LK4520**:
The optional 1-bulb downlight fi xture (13 watt, Energy-Effi cient CFL bulb included) is available and sold separately.
Maximum downlight wattage not to exceed 13 watts. NOTE: Fan supplied with fan-only wall control. Light kit will require
an additional control/switch.
DOWNROD OPTIONS:
The Involution
™
fan comes with a 1˝ Dia. x 6˝ (DR1-6) downrod. Optional downrods are available in 12”, 18”, 24”, 36”,
48”, 60”, and 72”. For installations requiring a longer downrod, a downrod coupler is available. The Involution
™
fan can
be mounted on a sloped ceiling up to 30°. Most sloped ceiling installations require a downrod longer than the standard
6˝ downrod. Call tech support for more information.
BLADE SETS:
A set of two 25˝ reversible (cherry/walnut) wood blades are included. Optional set of two 20˝ reversible (cherry/
walnut–B4542CWR) and satin nickel (B4542SN) blades are available and sold separately. Not recommended for Damp
Location.
DAMP LOCATION:
Fan not rated for Damp Location usage.
