Figure 7
How to Assemble Your Ceiling Fan
(continued)
9
Figure 6
7. Cut off excess lead wire approximately 6 to 9 inches
above top of the top of the downrod. Strip insulation off
1/2 inch from the end of each lead wire. (Figure 7)
NOTE:
All set screws must be checked, and retightened
where necessary, before installation.

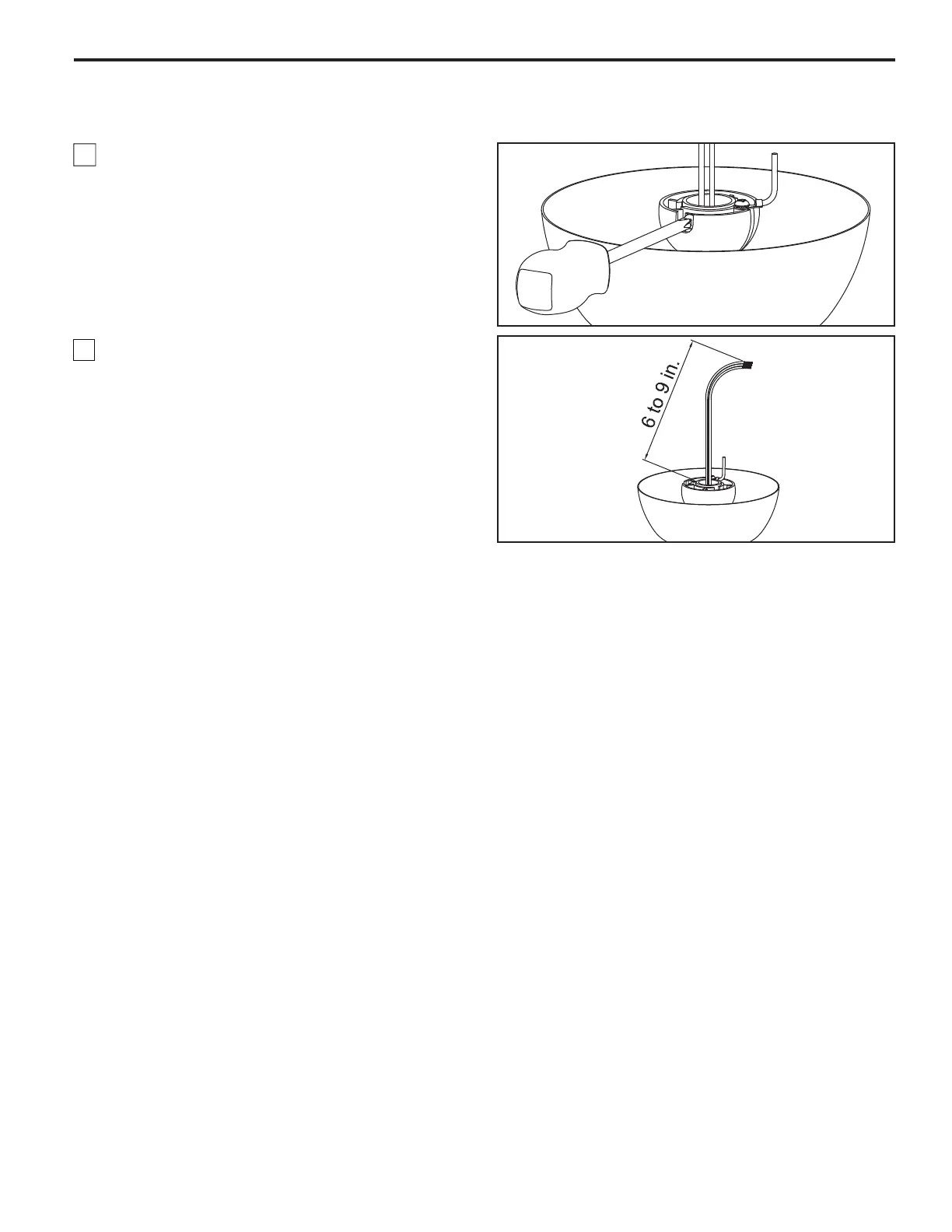

6. Reinstall the hanger ball on the downrod as follows.
Route the black/white, blue, red, gray and yellow wires
and safety cable through the hanger ball. Position the
pin through the two holes in the downrod and align the
hanger ball so the pin is captured in the groove in the
top of the hanger ball. Pull the hanger ball up tight
against the pin. Securely tighten the set screw in the
hanger ball. A loose set screw could cause fan
wobble. (Figure 6)
