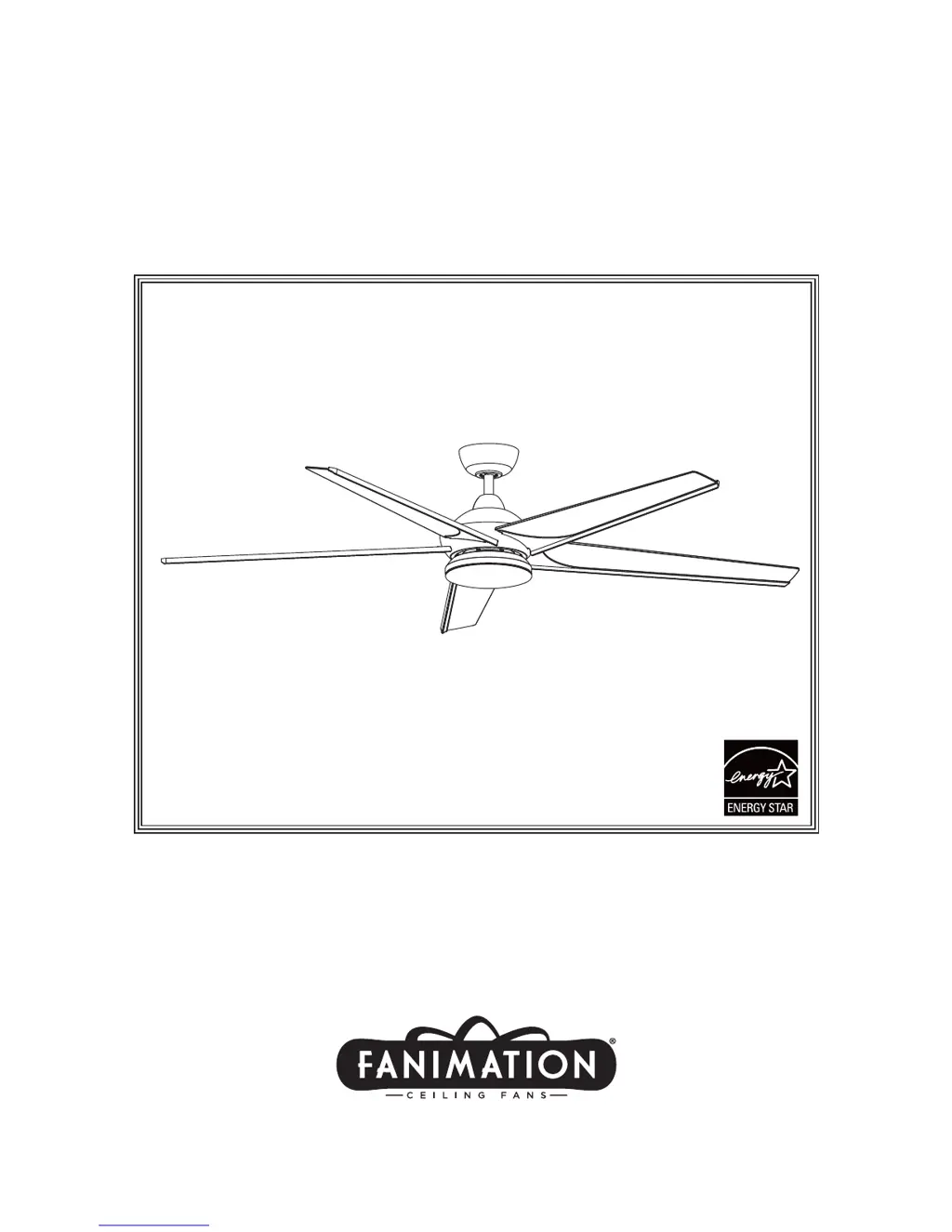

Fanimation Subtle - User Manual

Questions and Answers

T
Tanya MaciasJul 27, 2025
Why won't my Fanimation Subtle Fan start?
- T
  Tiffany GreeneJul 27, 2025
  There are several potential reasons why your Fanimation fan won't start: * A fuse or circuit breaker may have blown. Check both the main and branch circuit fuses or circuit breakers. * There might be loose power line connections to the fan, or loose switch wire connections in the switch housing. Inspect the line wire connections to the fan and switch wire connections in the switch housings, but be sure to turn off the main power first! * The reversing switch could be in the neutral position. Ensure the reversing switch is fully to one side. * The remote control battery may be dead. Try replacing it with a fresh one.
C
Christopher PerezAug 6, 2025
How to fix a noisy Fanimation Fan?
- A
  Aaron LewisAug 6, 2025
  If your Fanimation fan is making excessive noise, consider the following: * Ensure the blades are properly attached to the fan. * Check that all screws in the motor housing are snug (but don't over-tighten them). * Verify that the screws securing the fan blade to the motor assembly are tight. Remember to turn off the main power before checking! * Make sure the lower housing support set screw is securely tightened.
J
James ClementsAug 15, 2025
What to do if my Fanimation Subtle Fan wobbles a lot?
- T
  Thomas JohnsonAug 16, 2025
  If your Fanimation fan wobbles excessively, try these solutions: * Tighten both setscrews securely in the downrod support. * Tighten the setscrew in the downrod/hanger ball assembly. * Check that the screws securing the fan blade to the motor assembly are tight. * Tighten the hanger bracket screws to the timber batten, and secure the outlet box. * Use the balancing kit supplied to balance the fan blades.

Summary

Important Safety Instructions

General Safety Precautions

General safety instructions for fan installation and use, emphasizing precautions against fire, shock, and injury.

Additional Safety Guidelines

Specific safety guidelines for wiring, mounting, and operation to prevent electrical shock and physical harm.

Limited Lifetime Warranty

Warranty Coverage Details

Details the terms and conditions of the limited lifetime warranty for Fanimation ceiling fans.

Assembly Preparation

Tools Required for Assembly

Lists the required tools for assembling the ceiling fan.

Electrical Materials Specification

Specifies the necessary electrical wire gauge and outlet box requirements for installation.

Unpacking and Parts Check

Handling Damaged or Missing Parts

Warns against using damaged or missing parts and advises contacting the retailer for replacements.

Verifying All Parts Received

Instructs the user to verify all listed parts are present before proceeding with assembly.

Energy Efficient Operation

Optimal Mounting Location

Provides guidelines for selecting the optimal placement of the ceiling fan for best performance.

Seasonal Usage for Efficiency

Explains how to use the fan for cooling in summer and warming in winter for energy efficiency.

Electrical and Structural Requirements

Outlet Box Mounting Configurations

Describes different structural configurations for mounting the outlet box for the fan.

Electrical and Structural Requirements (Continued)

Brace-Mounted Outlet Box Installation

Explains the installation of a deep outlet box with a brace spanning between joists.

Critical Electrical Safety and Operation Warnings

Covers essential safety measures like turning off main power, avoiding dimmer switches, and grounding.

Ceiling Fan Blade Assembly

Blade Attachment Procedure

Steps for attaching the fan blades to the motor hub using provided screws.

Safety Warning: Blade Handling

Advises against bending fan blades during installation or maintenance to prevent injury.

Ceiling Fan Downrod Assembly

Downrod and Hanger Ball Installation

Steps for assembling the downrod and hanger ball onto the motor assembly.

Critical Downrod Assembly Safety

Highlights the importance of correctly installing the clevis pin and tightening set screws to prevent fan falling.

Ceiling Fan Downrod Assembly (Continued)

Wire Preparation for Downrod

Instructions for routing and preparing wires through the downrod and hanger ball.

Set Screw Tightening Reminder

Reminds the user to check and retighten all set screws before final installation to prevent wobble.

Ceiling Fan Hanging Procedure

Power Disconnection and Clearance Requirements

Stresses turning off main power and maintaining minimum 7ft clearance for safe fan hanging.

Secure Mounting and Wire Protection

Ensures secure outlet box mounting, proper bracket seating, and wire protection to prevent hazards.

Ceiling Fan Wiring

Receiver Wiring Caution

Warns that incorrect wiring connections can cause damage to the fan's receiver unit.

Wire Connection Integrity Check

Stresses the importance of ensuring all wire connections are tight and secure to prevent issues.

Canopy Housing Installation

Electrical Wire Management in Canopy

Advises ensuring electrical wires are safely contained within the canopy to prevent fire or shock hazards.

Light Kit Assembly

Light Plate Assembly Steps

Instructions for assembling the light plate to the motor assembly.

Light Kit Assembly (Continued)

Light Kit Installation Power Disconnection

Instructs to disconnect power before installing the light kit to prevent electric shock.

Light Source Application Caution

Warns that the light source is specific and may overheat if handled by untrained individuals.

Ceiling Fan Operation

Prohibited Controls and Receiver Notes

Warns against using dimmer switches and explains the fan receiver's automatic learning function.

Remote Control Setup and Synchronization

Details the procedure for setting up and synchronizing the remote control with the fan.

Ceiling Fan Operation (Continued)

Remote Control Function Guide

Describes the various functions and buttons available on the remote control transmitter.

Fan Direction and Airflow Modes

Explains how to use the reverse button for summer (cooling) and winter (heating) modes.

Dip Switch and Safety Features

Guides setting the dip switch for light dimming and explains the protective lock feature.

Remote Control Installation

Wall Plate Mounting

Instructions for mounting the remote control's wall plate securely.

Fan Maintenance and Cleaning

Cleaning Cautions: Avoid Solvents

Advises against using solvents for cleaning and recommends checking screw tightness for maintenance.

Parts Identification and Ordering

Parts List Reference

A list of all parts included with the ceiling fan, with reference numbers.

How to Order Replacement Parts

Provides instructions and required information for ordering replacement parts.

Exploded View Illustration

Troubleshooting Common Fan Issues

Fan Fails to Start

Lists probable causes and suggested remedies for the fan failing to start.

Fan Operates Noisily

Provides solutions for common causes of excessive noise from the ceiling fan.

Excessive Fan Wobble

Offers troubleshooting steps for excessive fan wobble, including checking screws and balance.

Insufficient Air Movement

Suggests remedies for insufficient airflow, such as using a longer downrod.

Fanimation Subtle Specifications

General

Blade Span	52 inches
Light Kit	Optional
Type	Ceiling Fan
Motor Type	AC
Category	Ceiling Fan
Blade Sweep	52 inches
Material	Wood, Metal
Finish	Multiple options available
Light Kit Included	No
Warranty	Lifetime motor warranty
