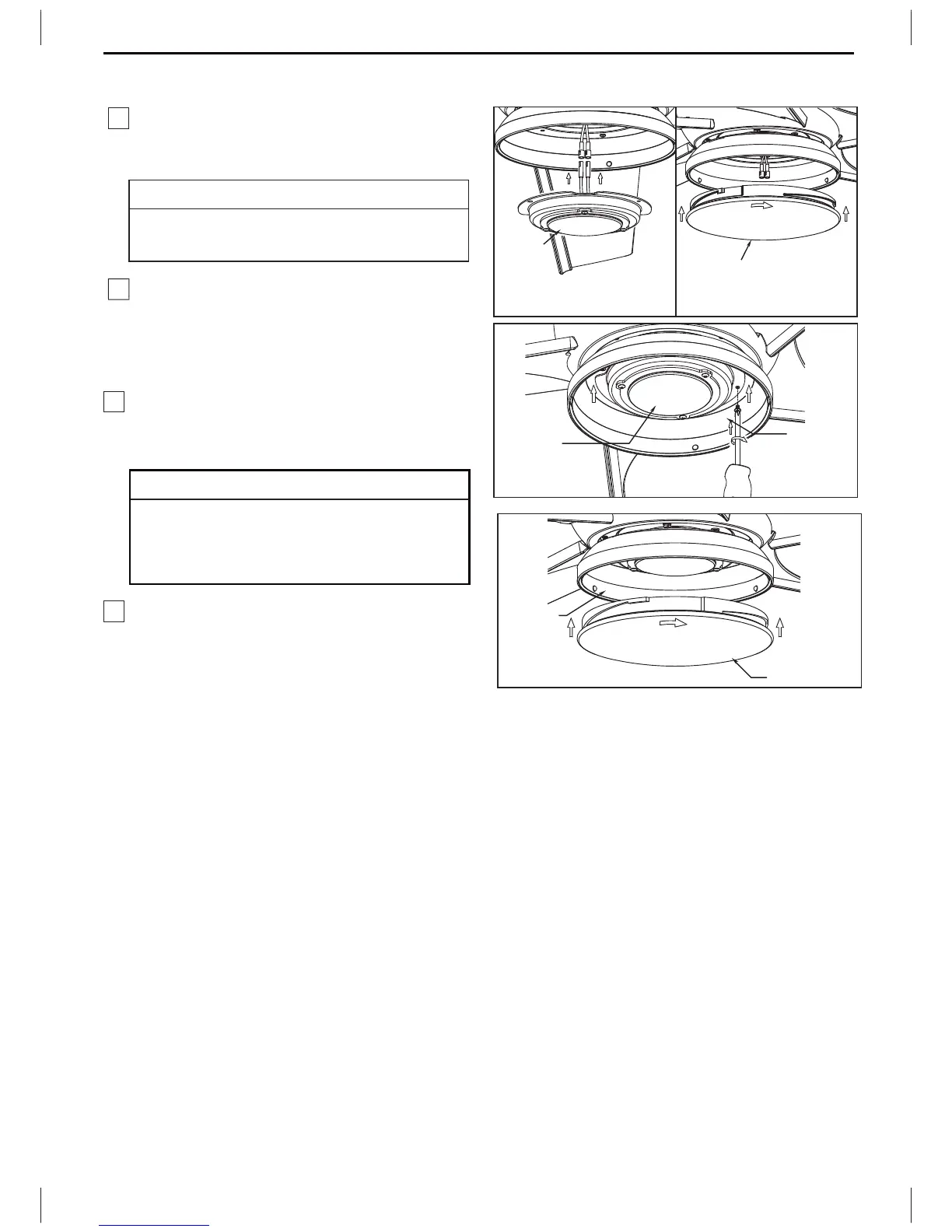

How to Assemble Your Light Kit Assembly or Cap (continued)
Connect the 2 single pin connectors from the LED
assembly to the 2 single pin connectors from motor
assembly. (Figure 3A)
To reduce the risk of electric shock, disconnect the
electrical supply circult to the fan before installing
light kit.
CAUTION
3B. (Option B--for use with steel cap)
If you want to install the steel cap and not the light kit.
Assemble the steel cap to the light
kit
assembly by
twisting in a clockwise direction. (Figure 3B)
NOTE: If you have installed your fan with the steel
cap, skip Steps 4 and 5.
3A. (Option A--for use with light kit)
4. Assemble the LED assembly to the light plate
assembly using the two key slots. Replace the
removed screw in Step 2 and secure all three screws.
(Figure 4)
The light source is designed for this specific
application and can overheat if serviced by untrained
personnel. If any servicing is required, the product
should be returned to an authorized service facility
for examination or repair.
CAUTION
5. Assemble the glass to the light plate assembly
by twisting in a clockwise direction. Do not overtighten.
(Figure 5)
Light Plate
Assembly
Figure 3A
Figure 3B
LED
Assembly
Steel Cap
LED
Assembly
Figure 4
Figure 5
Glass
Light Plate
Assembly
