7

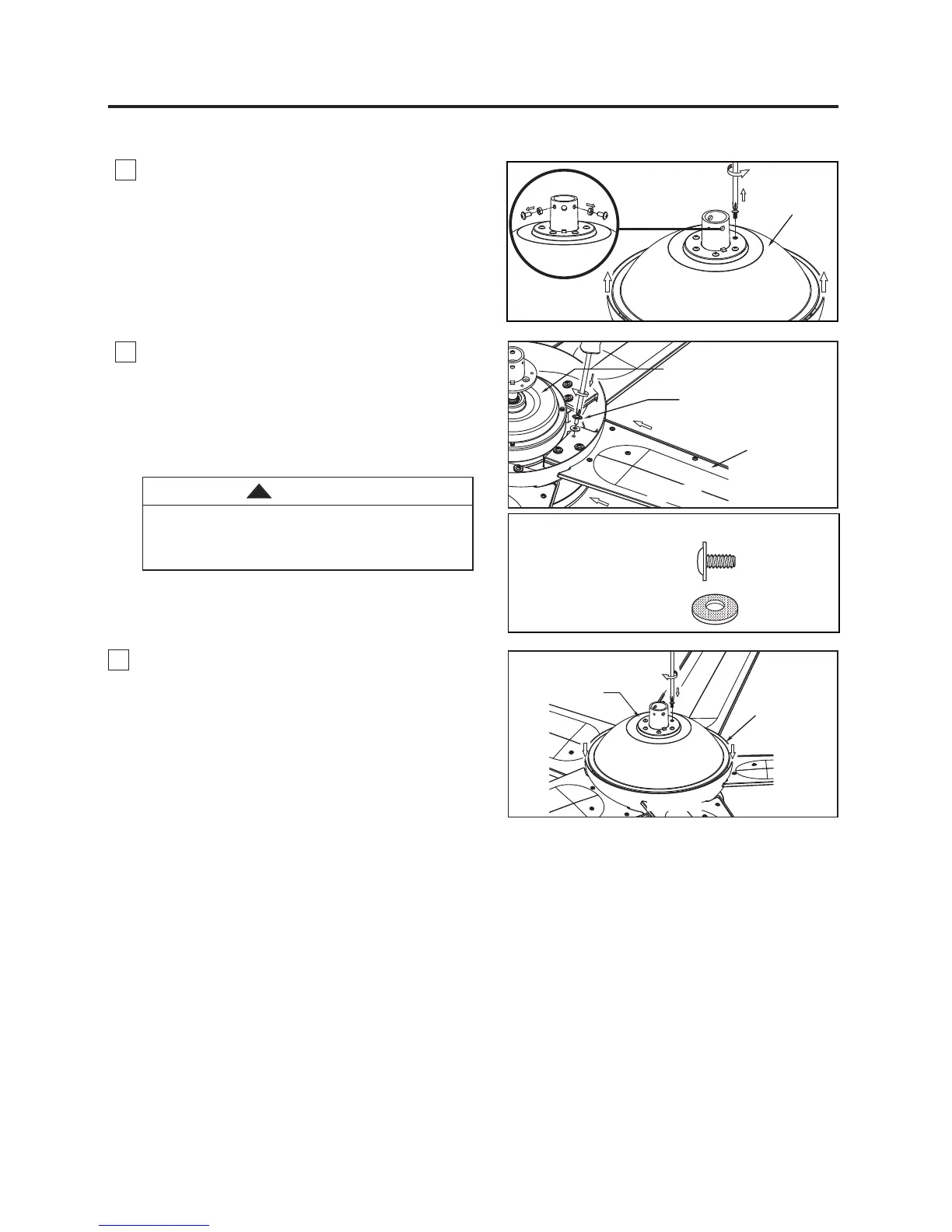

How to Assemble Your Ceiling Fan Blades
1. Remove the two set screws and locking nuts in the
downrod support of the motor assembly and retain
for reinstallation in Step 4 of Page 8. Disassemble the
upper housing cover by removing the six screws at the
top of the motor assembly and retain for Step 3.
Carefully twist and lift off the cover. (Figure 1)
To reduce the risk of personal injury, do not bend the
NOTE: Periodically check blade hardware and
resecure if necessary.
2.
Slide blades through slots in motor housing and attach
to the motor hub using the #8-32 washer head screws
and fiber washers. Make sure the screws securing the
blades to the motor hub are tight and are properly seated.
(
Figure 2)
blade when installing, balancing the blades or
cleaning the fan. Do not insert foreign objects in
between the rotating blades.
WARNING
!
Figure 2
#8-32 Washer Head Screw
with Fiber Washer
(3 per assembly)
Figure 1
HARDWARE USED:
x 15
x 15
FIBER WASHER
WASHER HEAD
SCREWS
#8-32
Upper Housing
Cover
Motor Assembly
Blade
3. Reassemble the upper housing cover to the motor
assembly using the previously removed screws.
(Figure 3)
Upper Housing
Cover
Motor Assembly
Figure 3
To Next Page
