7. Cut off excess lead wire approximately 15 - 25 cm
above top of the top of the downrod. Strip insulation off
10 mm from the end of each lead wire. (Figure 7)
NOTE:
All set screws must be checked, and retightened
where necessary, before installation.
6. Reinstall the hanger ball on the downrod as follows.
Route the three 2m length wires and safety cable through
the hanger ball. Position the pin through the two holes in the
downrod and align the hanger ball so the pin is captured
in the groove in the top of the hanger ball. Pull the hanger
ball up tight against the pin. Securely tighten the set screw
in the hanger ball. A loose set screw could create fan
wobble. (Figure 6)
Assembling This Ceiling Fan (continued)

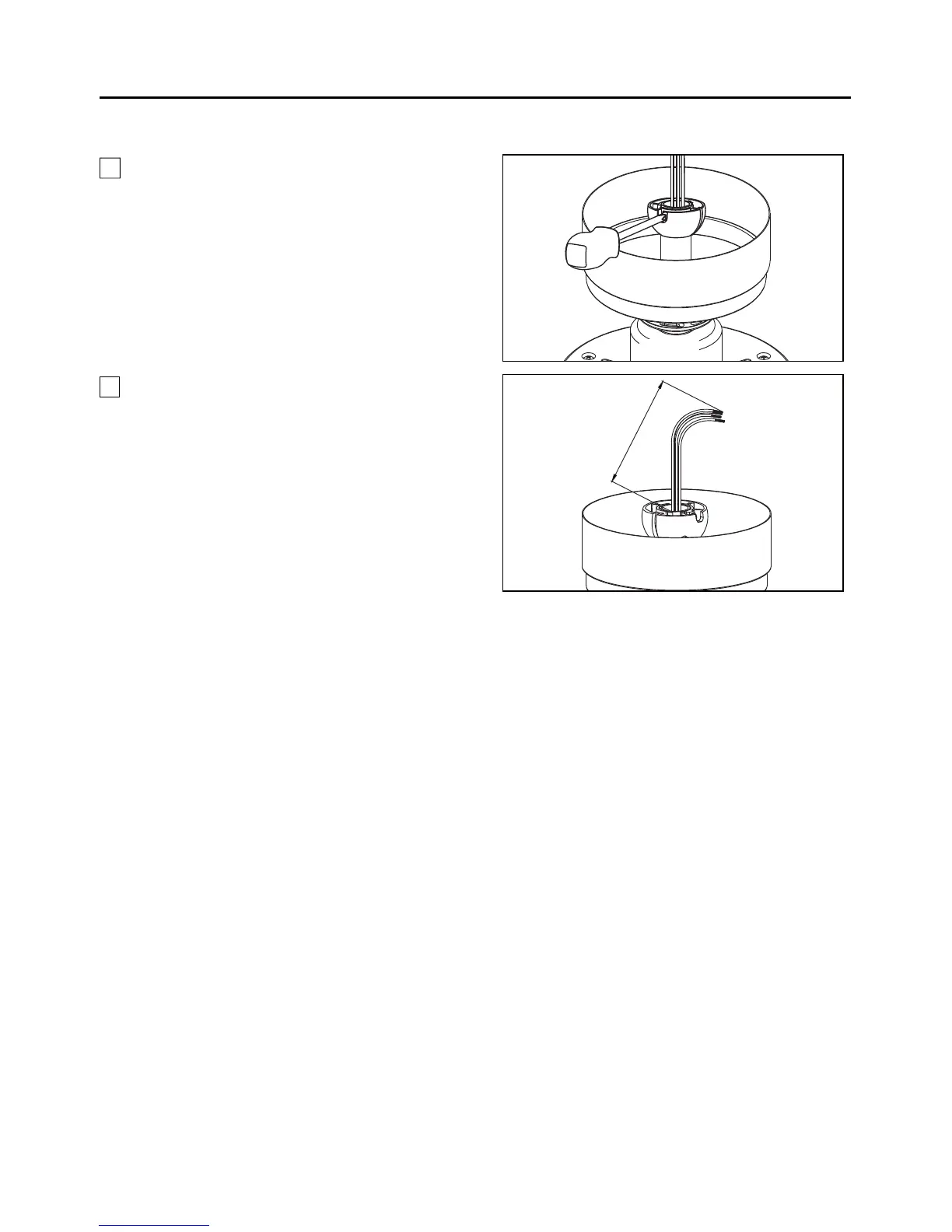

Figure 6
Figure 7
15-25 cm
To Next Page
