Mounting the Fan Blades
2. Lay flat side of blade holder arm on a flat surface with
the inside of the blade holder arm facing up. This is the
side with the threaded posts and pitched foot.
3. Position the (plastic) palm leaf, or the (plastic) woven
bamboo blade, or the (plastic) wood blade over the blade
holder with the threaded posts showing. Make sure the
bottom edge of the blade is fully seated against the blade
holder arm.
4. Place blade holder cover on top of the blade, positioning
the holes over the threaded posts.
5. With a Philips screwdriver, thread both screws into the
posts but do not fully tighten.
6. Prior to final tightening, position the centerline of the
blade holder with the center of the end of the blade.
7. Tighten both screws to secure the blade. (Figure 2)
Figure 2
8

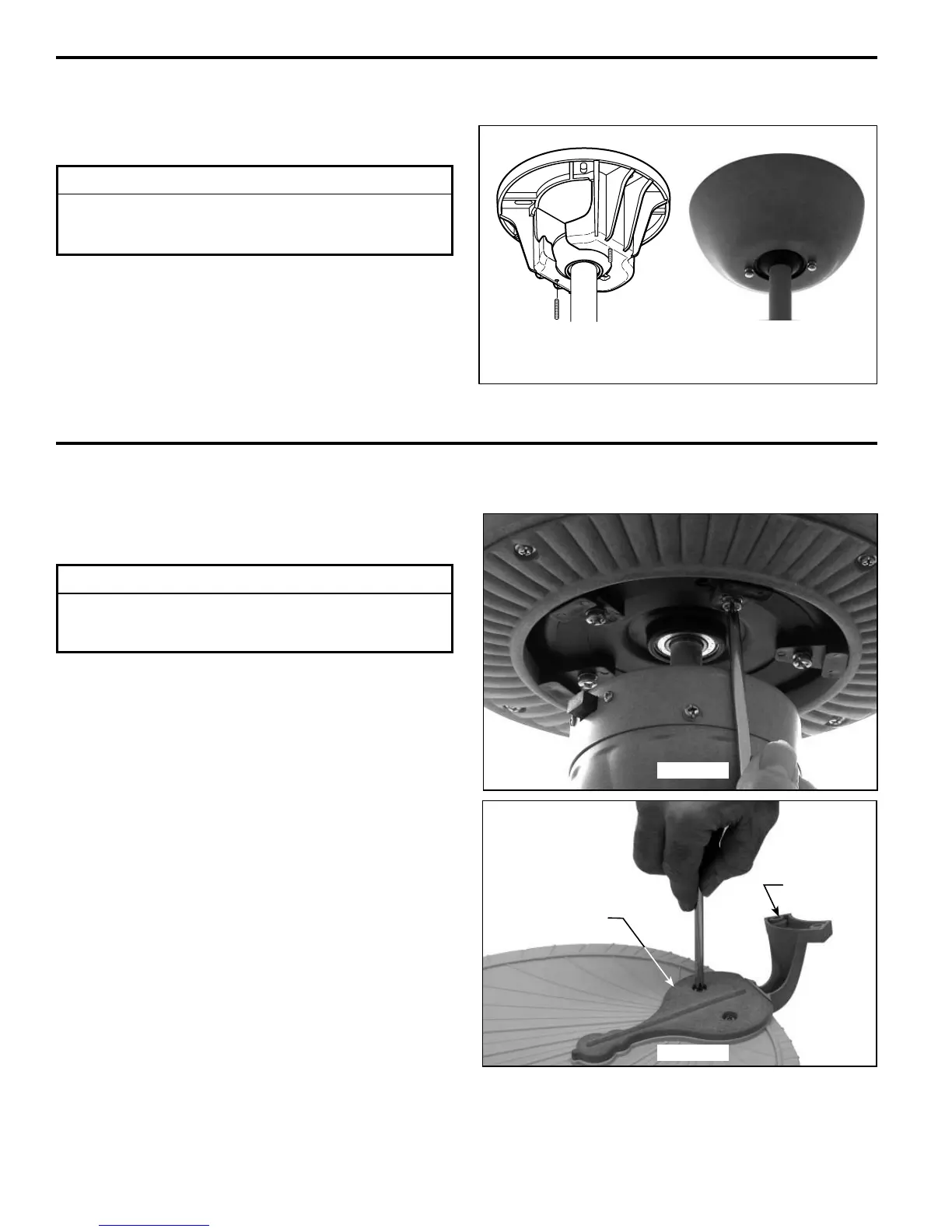

Installing the Canopy Housing
1. Screw in two threaded rods into the Hanger Bracket
(Figure 1).
NOTE: The threaded rods in the hanger bracket serves as
guides for easier installation.
2. Securely attach the Canopy Housing to the Hanger
Bracket using the external lockwashers and knurled knobs
supplied with your fan (Figure 2).
Figure 1 Figure 2
NOTE: Supply wires and fan wires omitted for clarity.
NOTE: This step is applicable after the neccessary wiring
is completed. (see page 7)
ʆ
WARNING
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the canopy housing
and not pinched between the housing and the ceiling.
INSTALLATION NOTE
Do not connect fan blades until the fan is completely
installed. Installing the fan with blades assembled may
result in damage to the fan blades.
Blade Holder Cover
Blade Holder Arm
Figure 1
1. Remove and discard the (rubber) motor “stops” by
removing the four screws. (Figure 1)
To Next Page
