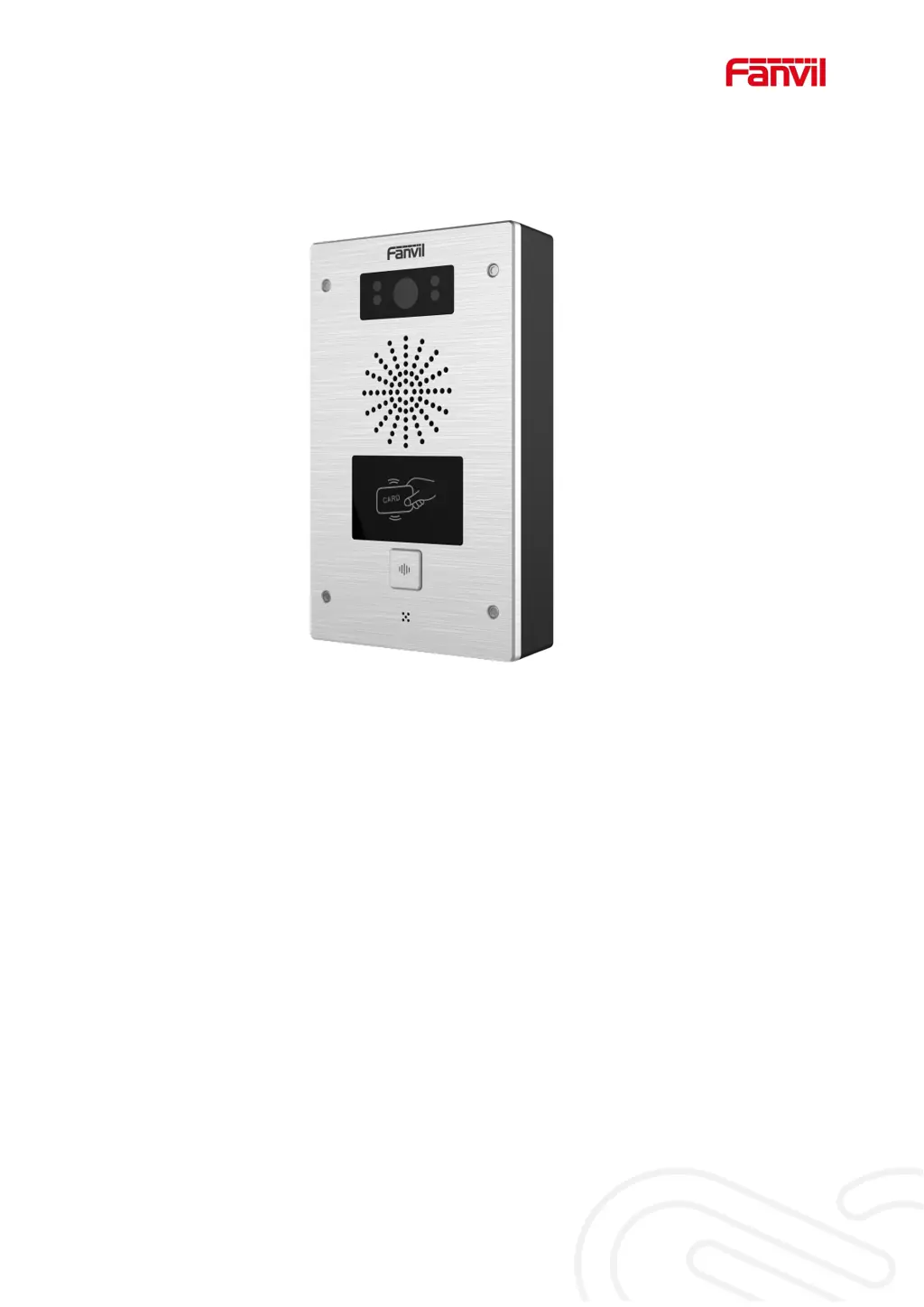

Fanvil i16V User Manual (English)

Other manuals for Fanvil i16V

Questions and Answers:

Samantha HoganJul 27, 2025

What to do if Fanvil i16V Intercom System could not register to a service provider?

E
elliottmarieJul 28, 2025
If your Fanvil Intercom System fails to register, first ensure the device is properly connected to the network via the [Network] interface, not the [Computer] interface. Next, verify that the device has obtained an IP address by checking the system information. If the IP address shows Negotiating..., the device hasn't obtained one, so check your network configuration. If the network connection is confirmed to be good, double-check your line configuration. If issues persist, capturing network data and sending it to Fanvil Support Email for analysis might be necessary.

Fanvil i16V Specifications

General

Color	Yes
Relay inputs	2
Speakerphone	-
Video codecs	H.264
Certification	CE/FCC
Number of buttons	1 buttons
Connectivity technology	Wired
IK code	IK10
Product color	Stainless steel
International Protection (IP) code	IP65
Display diagonal	- \
Megapixel	2 MP
Maximum frame rate	25 fps
Optical sensor size	1/2.7 \
Minimum illumination	0.1 lx
Viewing angle, vertical	84 °
Maximum video resolution	1280 x 720 pixels
Viewing angle, horizontal	112 °
Networking standards	IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	SIP2.0 UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Outdoor unit power type	DC
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	165 mm
Package width	260 mm
Package height	62 mm
