2

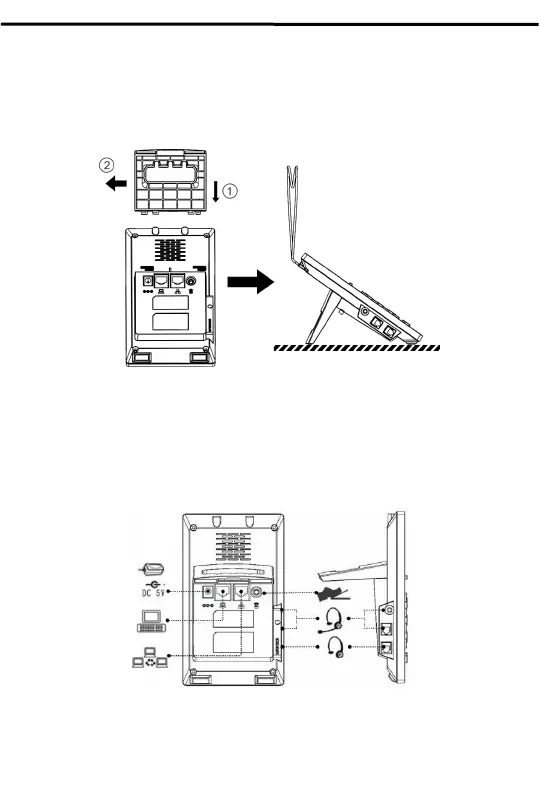

1 Installation
1.1 Bracket installation
Please follow the instructions in below picture to install the device.
Figure 1 - Bracket installation
1.2
Connecting to the Device
Please connect power adapter, network, PC, handset, and foot pedal to the
corresponding ports as described in below picture.
Figure 2 - Connecting to the Device
