Screen icon

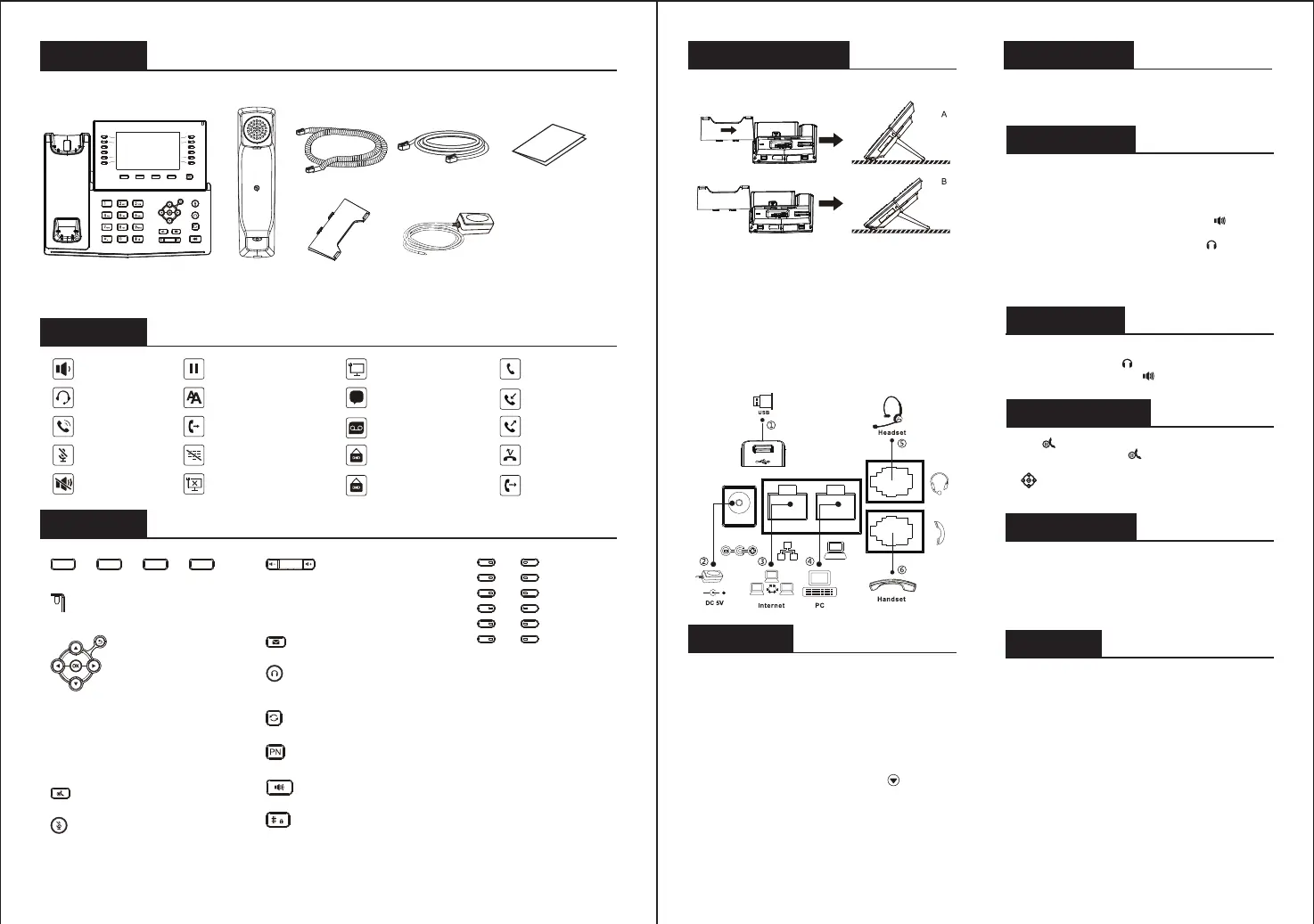

Packaging list
Keys features
Handset
Handset Cord
Stand
Power Adapter
(Optional)
Ethernet Cord
Quick Installation Guide
Installation the device
Bracket desktop installation
- 2 - - 3 -
Message waiting indicator
Left and right navigation keys，
Return key
Up navigation key, Shortcut to call log
Down navigation key, Shortcut to Status
OK key, Shortcut to Menu
Return key，Go back to the
previous directory
Hold key, Hold/Resume the call
In idle mode: ringer off
In communication mode:
mute/un-mute a call
Connecting to the Device
Please connect power adapter, network, PC, handset, and headset
to the corresponding ports as described in below picture.
Configuration
Configuration via Phone
1. Press Menu > Advanced (Default password 123)
2. Select Network: To configure the Network Settings
(IPv4/IPv6/IPv4&IPv6, DHCP/Static/PPPoE)
3. Select Accounts: To configure enable the account,
fill the SIP server address, port, user name, password etc.
Configuration via Web
1. Get the IP address from the phone: Press key,
or Menu > Status > IP.
2. Login: Input the IP address in the web browser. The PC
and phone should be in the same IP address segment(The
default username and password are both ‘admin’.)
3. Configure: Select network/Account etc, and fill the
relevant content.
Language setting
1. Press Menu key > Basic > Language.
2. Select the desired language and press OK soft key.
Accepting a call
Putting a call on hold
3-party conference
Call transfer
Attended transfer:
Blind transfer:
1. Press Xfer soft key during the active conversation,
the call is put on hold.
2. Dial the second telephone number.
3. When the call is answered, then press Xfer soft key to
complete the operation.
1. Press Xfer soft key during the active conversation,
the call will be on hold.
2. Then enter the 2nd telephone number and press
Xfer soft key.
1. Once in line with 1st caller, press Conference soft key,
1st caller is put on hold.
2. Then call the 2nd number.
3. After, 2nd call is established, press Conference soft key
to set up the conference.
1. With the handset: pick up the handset.
2. With a headset: press .
3. With the handsfree: press .
1. Press key or Hold soft key, caller is put on hold
2. To retrieve the call press key or Resume soft key.
Note: with more than one active call, select desired call with
the navigator keys and use the corresponding soft key to
hold or resume.
Making a call
1. Pre-dialing: enter the phone number and pick up the
handset.
2.Direct dialing: lift the handset and enter the phone
number.
3. Handsfree: enter phone number and press or vice
versa.
4. Headset: enter phone number and press or
vice versa.
5. Designated line: press line key, enter phone number
and press dial key.
In headset mode
In hands-free mode
In handset mode
Missed call(Status bar)
Mute activated
Auto-answering activated
Call is on hold
Call Forward activated
Internet is connected
Do not disturb activated(red)
Do not disturb disabled(Blue)
Dialed call
Received call
Ringer off
Internet is disconnected
Keypad locked
New VM Messages
New SMS
In idle mode or during ringing:
increase or decrease ringer volume
In communication: increase or
decrease earpiece,
headset or hands-free volume
Voice message key
Hands-free key, Activate/deactivate hands free
IP Phone
① USB port: connect USB device (U disk, WIFI adapter)
② Power port: connect the power adapter.
③ Network port: connecting local area network or internet.
④ PC port: the network port connect to the computer.
⑤ Headset port: connect headset.
⑥ Handset port: connect IP Phone handset.
Missed call(s)
Forward call
Headset key,
Activate/deactivate Headset
Redial key, Access to redial the last record
Long press to lock keypad.
Enter PIN to unlock keypad (default 123)
Soft keys
Page-Jump key, It can switch DSS pages
DSS keys, It can be set as line
key/function key/speed dial
key, etc.
