Section III. Installation and Wiring
III-2 P/N 446613 Issue I Rev. A

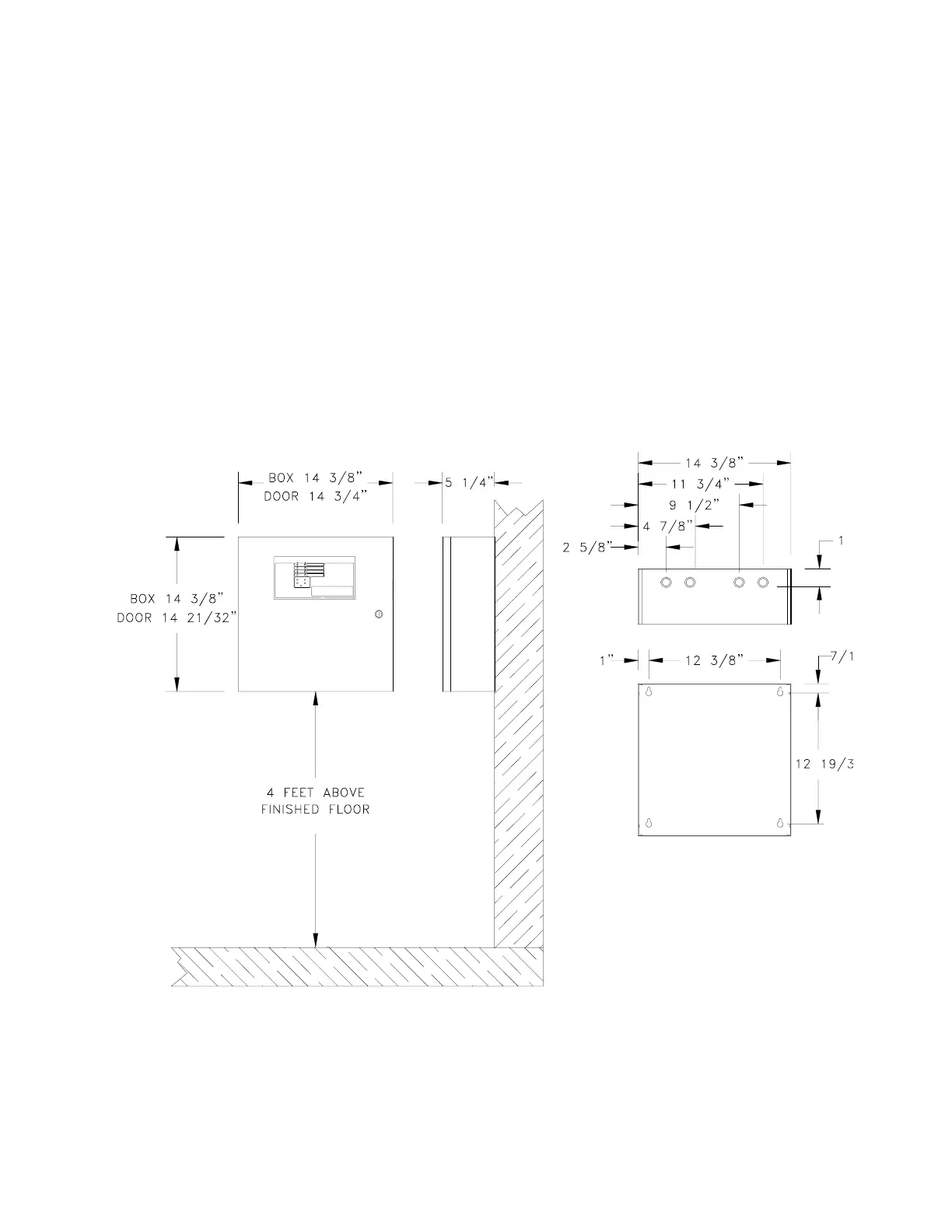

Surface Mounting Instructions
To mount the enclosure:
A. Mount the enclosure at a convenient height for viewing indicators and operating
switches.
B. Use four #10 lag screws (not supplied) to secure the control unit to the wall. The
screw type and length must support up to 45 pounds (control unit, options and
battery set).
Note: You may need a different screw type, depending on the wall material.
C. The battery enclosure may be mounted immediately below the main enclosure, close
nippled, allowing a minimum of 1 inch in between the enclosures for clearance
between the doors. Keeping the wire run to the main panel short will keep the
voltage drop to a minimum.
