13400 Owner’s Manual
P/N 446613 Issue I Rev. A III-3
Semi-Flush Mounting Instructions

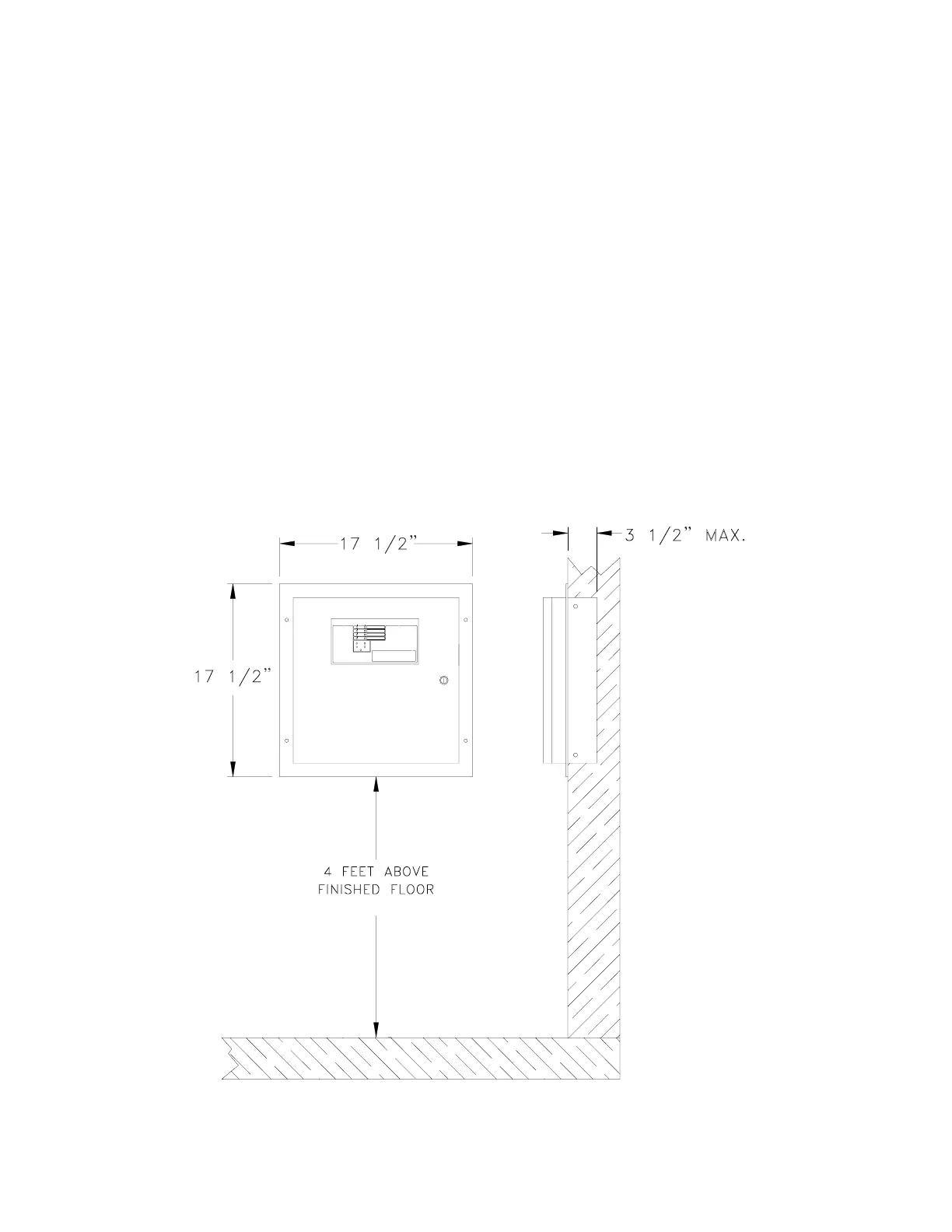

To mount the enclosure:
A. Mount the enclosure at a convenient height for viewing indicators and operating
switches.
B. Use four #10 lag screws (not supplied) to secure the control unit to the wall. The
screw type and length must support up to 45 pounds (control unit, options and
battery set).
Note: You may need a different screw type, depending on the wall material.
C. The backbox can be mounted up to 3 1/2 inches into the wall. Place the semi-flush
trim (P/N 15216) around the backbox and affix to the wall with four #10 x 3/4 inch
wood screws (provided with trim).
Note: You may need a different screw type, depending on the wall material.
D. The battery enclosure may be mounted immediately below the main enclosure, close
nippled, allowing a minimum of 3 inches in between the enclosures for clearance
between the semi-flush trims. Keeping the wire run to the main panel short will keep
the voltage drop to a minimum.
