15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 10
2.5.2 Battery Connection
The 15073 requires a 24V sealed lead-acid battery set. The battery capacity can be from 7 to 15.0A.H.
For battery sets larger than 7A.H., a separate enclosure is required.
The following steps and diagram explain how to connect the Faraday 14047, 7A.H. battery set.
1. Connect black wire to the negative (-) side of battery #2.
2. Connect jumper wire from the positive (+) side of battery #2 to the negative side of battery #1.
3. Connect red wire to the positive (+) side of battery #1.

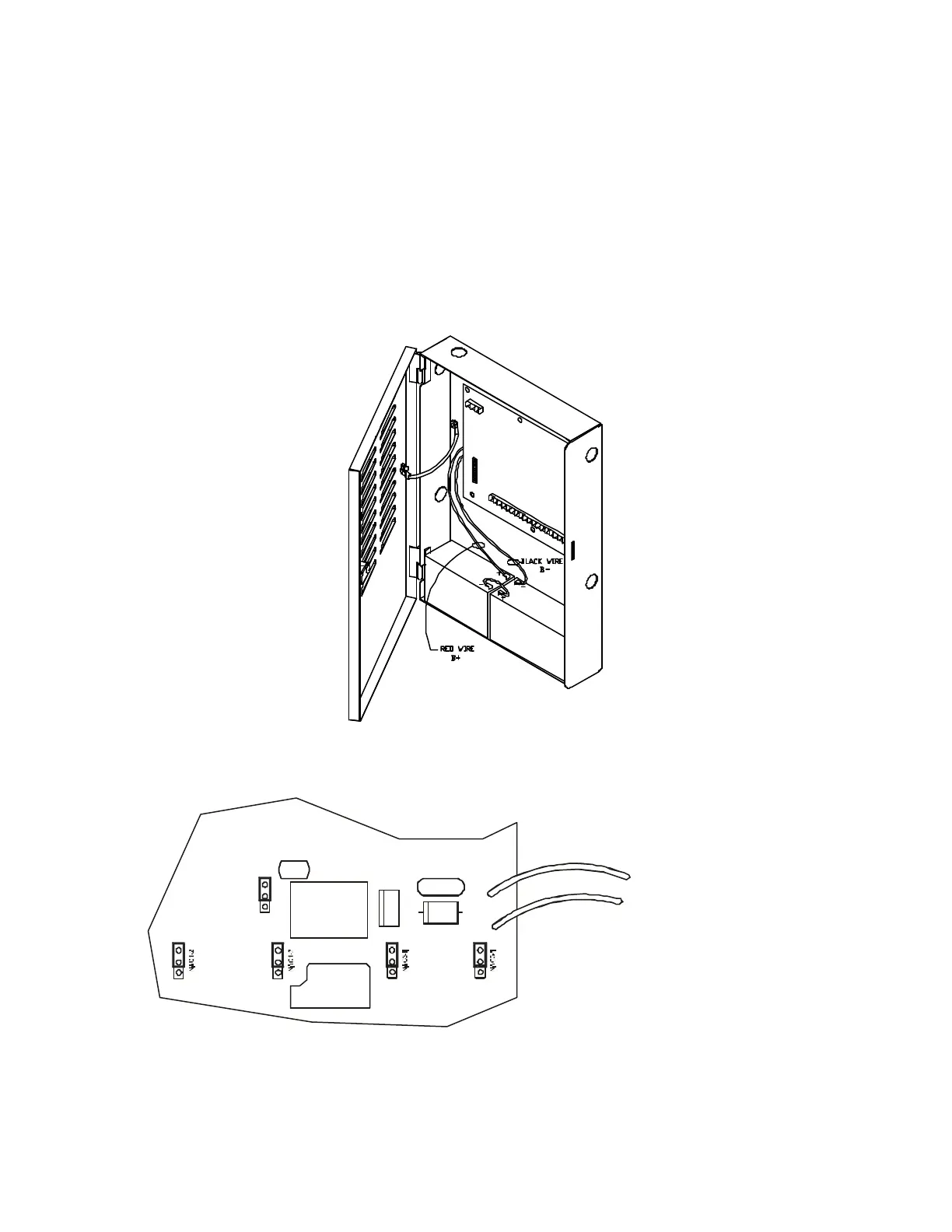

Figure 2-4. Battery Installation
Figure 2-5. Battery Wiring
BATTERY
CHARGER
1-2 ENABLED
2-3 DISABLED
1-2 CLASS B
2-3 CLASS A
J10
J4
K6
F2
F3
D14
B+
B-
N.A.C.
JUMPERS
J2
J3
J8J7J5
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
24V BATTERY SET
(7 TO 15.0 AH)
SUPERVISED
NON-POWER LIMITED
INPUT CURRENT (MAX.) : 6.1A
CHARGE VOLTAGE (MAX.) : 27.8VDC
CHARGE CURRENT (MAX.) : 3.3A
