Faraday RSE-300 - Connecting to Control Units; Compatible Faraday Control Units; Connection to 12100 Fire Alarm Control Unit

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 15
33 CONNECTION TO CONTROL UNITSCONNECTION TO CONTROL UNITS
The drawings in this section show you how to connect the 15073 to compatible Faraday control units.
See control unit owners manual for more information.
Faraday
Cat. No.
Mfg.
Part Number
Description
Faraday LLC
MPC-1000 12100 Fire Alarm Control Unit
FW-4000 12400 Fire Alarm Control Unit
MPC-1500 12500 Fire Alarm Control Unit
FW-200 13200 Fire Alarm Control Unit
FW-400 13400 Fire Alarm Control Unit
FWII/FWII+2 15220/15240(A) Fire Alarm Control Unit
LW-400 16400 Fire Alarm Control Unit
LW-401 16401 Fire Alarm Control Unit
LW-450 16450 Fire Alarm Control Unit
MPC-2000 2000/2001-xxx Fire Alarm Control Unit
System Sensor
9159 M500CH Control Module

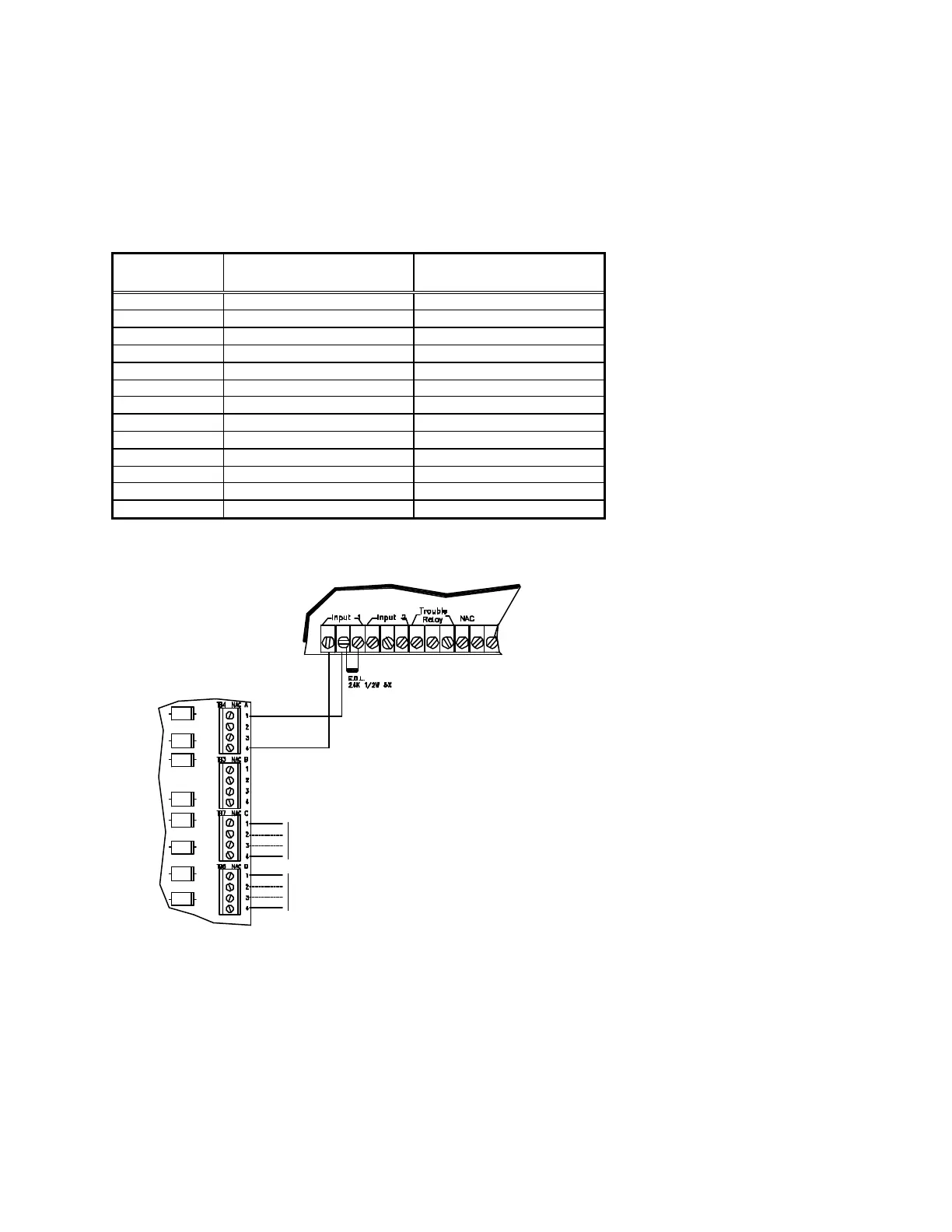

Figure 3-1. Connection to 12100 Fire Alarm Control Unit
1 32 6 7 8 94 5 1110 12
