15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 29
5.5. PROGRAMMINGPROGRAMMING
The 15073 functions are programmed with a 10-position DIP switch and six 3-position jumpers. The
following section describes each setting.
5.1 DIP SWITCH SETTINGS
The 10-position DIP switch allows you to select the following:
How long will the unit wait before indicating a loss of AC?
Which input (Input 1 or Input 2) will control the NAC outputs?
Which outputs to wire as Style Z (Class A) and Style Y (Class B)?
Auxiliary power output operation on AC power fault?
Which outputs to operate as steady outputs or ANSI temporal?
Refer to Figure 2-2 for the location of the DIP switch on the circuit board assembly.
All DIP switches are factory set for off; verify proper settings for proper system operation. Slide the
switches to the left for OFF and to the right for ON.
Note: The unit checks DIP switch settings only when reset. If you change these switch
settings, you must push SW2 reset switch to recognize the new DIP switch settings.

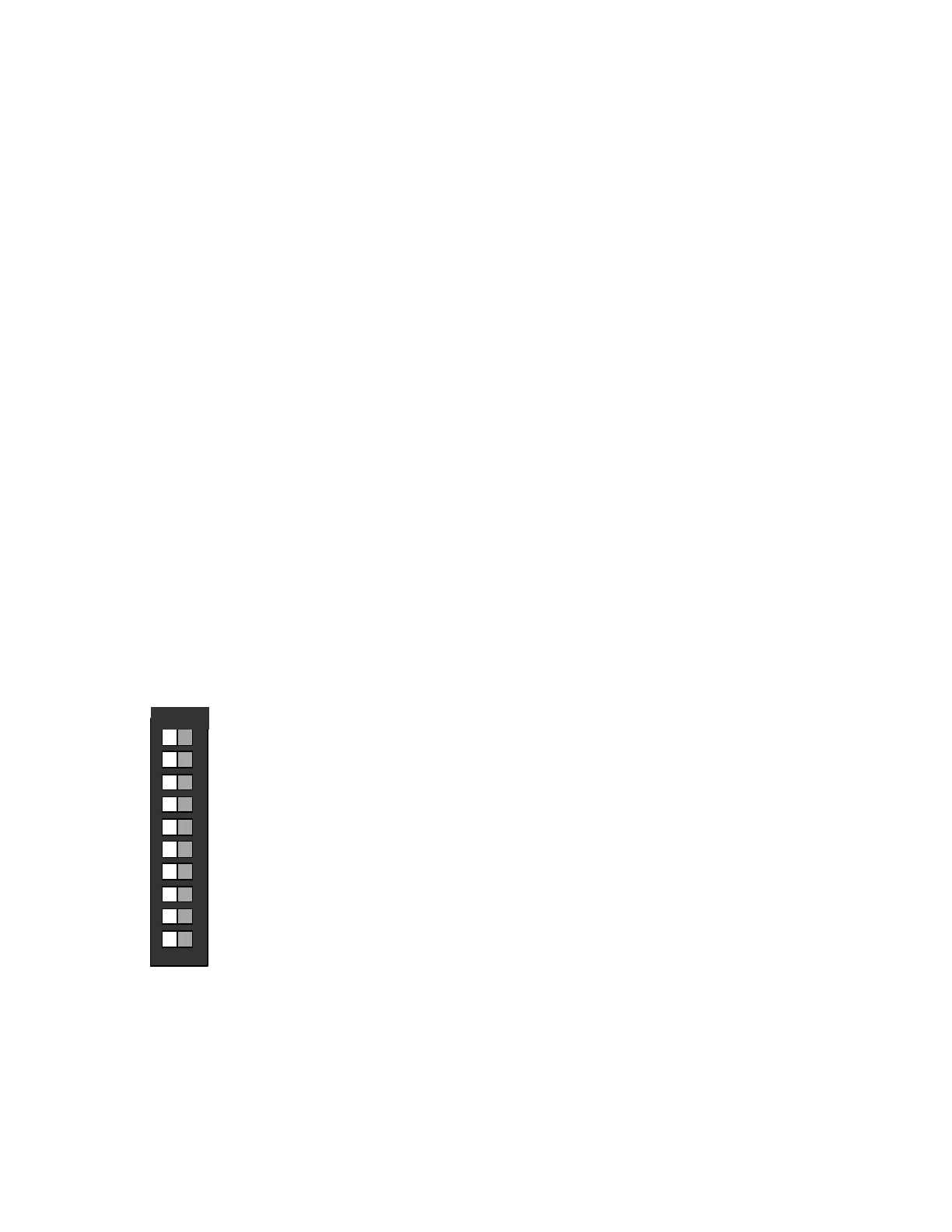

SW1
1
2
3
4
5
6
7
8
9
10
OFF ON
