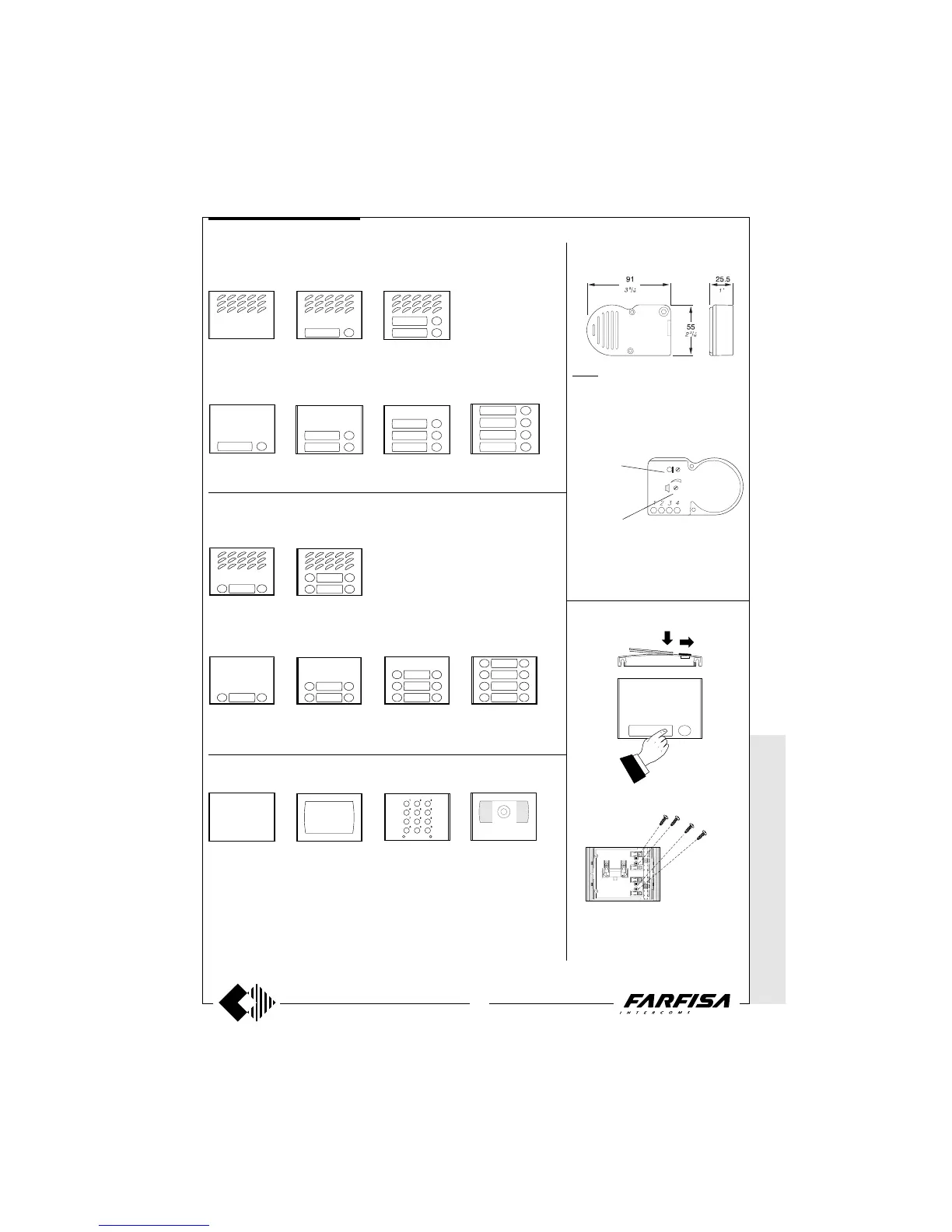

Farfisa Si 5050 - Page 13

WITHOUT C
OAX *
WITH
COAX
13
(GB- '99)
* MODY * E
RREP/R *
PROJECT *
PUNTOVIRGOLA *
SLIM
In any button module, to avoid the dismount-
ing of name holder a screw 3MAx12 can be
inserted in the holes in order to block each
label.
Dismounting of name holder to insert name
label.
MD 10
Without call buttons
MD 11
1 call button
MD 12
2 call buttons
1 row push-button modules
Modules for electric door speaker (amplifier)
Button modules
MD 22
2 call buttons
MD 24
4 call buttons
MD 23
3 call buttons
MD 21
1 call button
2 row push-button modules
MD 122
2 call buttons
MD 124
4 call buttons
ELECTRIC DOOR-SPEAKER
(amplifier)
MD 30.
It consists of a double amplifier (receiver and
transmitter) with adjustable volume of 2
channels. Also fittable to ErreP/R and
Prestige push-button panels (for the ErreP/
R door stations by means of 299/1 adaptor).
Terminals
1 receiver
2 transmitter
3 positive power supply 6÷8Vdc - 60mA
4 ground
Dismounting and protection of name
labels
MD 222
2 call buttons
MD 224
4 call buttons
MD 226
6 call buttons
MD 228
8 call buttons
MD 20
Blank module
Modules: blank, number , access control and cameras
FC 52
Keypad module for
access control
(see page 20)
MD 50
Number module
50
MD40 B/W CCD camera
MD40C Colour CCD cam-
era (see page 20)
Button modules
Modules for electric door speaker (amplifier)
Receiver adjustable volume
Transmitter adjustable
volume
MODY series
PUSH-BUTTON PANELS
