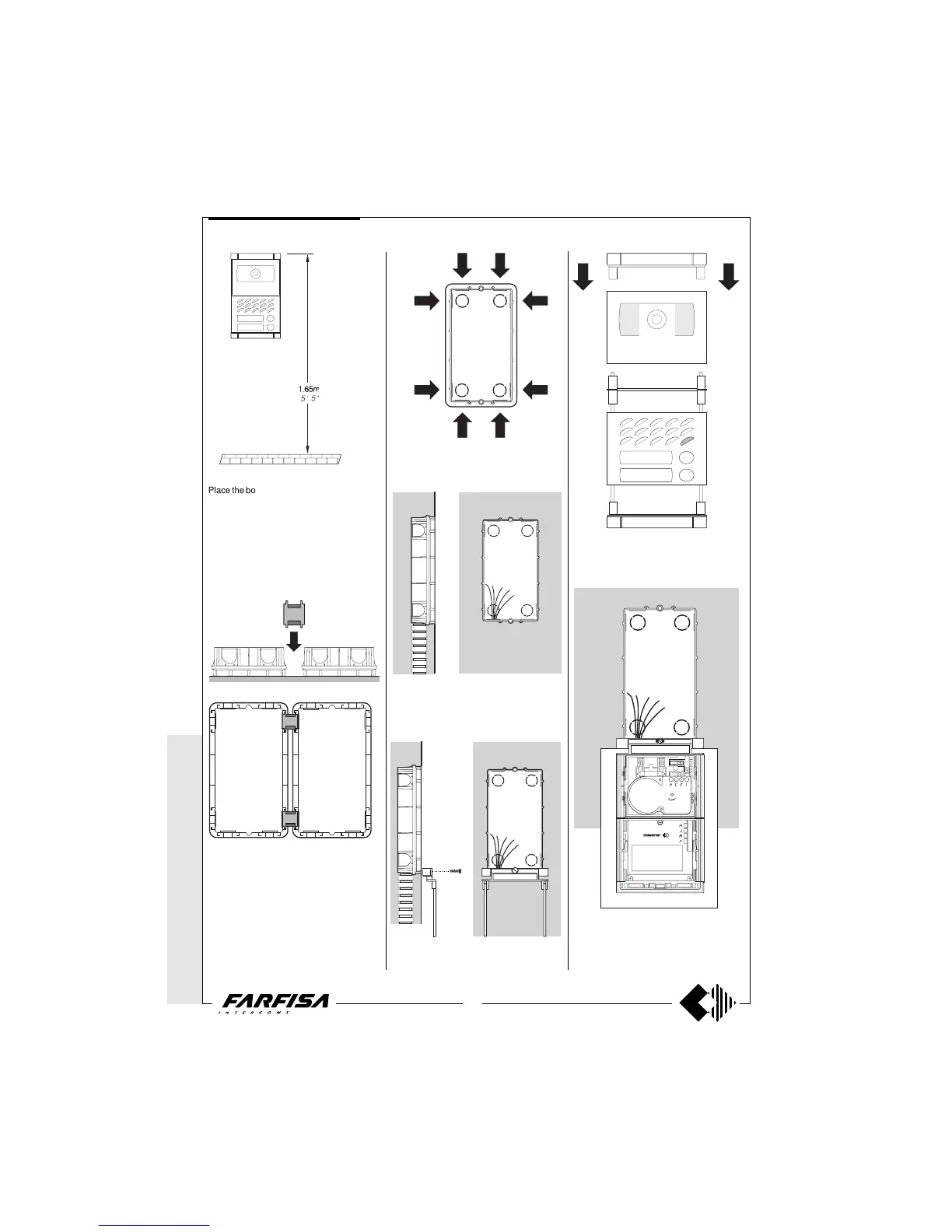

Place the box of the camera unit at a height of
about 1.65m from the floor keeping the front
edges flush-mounted and vertical to the fin-
ished plaster.
Position the camera unit in such a way that
solar rays or other direct light or intense
reflections do not hit the camera lens.
Insertion of cable bush between back boxes.
The cable bushes must be inserted before
brickwork.
Openings for cables.
Flush mounting and cables placing.
Mounting of button module.
Lower fixing of the module frame.
(a)
Lower fixing of the module frame on back box.
It is advised to insert a protection (a) between
panel and wall while fixing.
