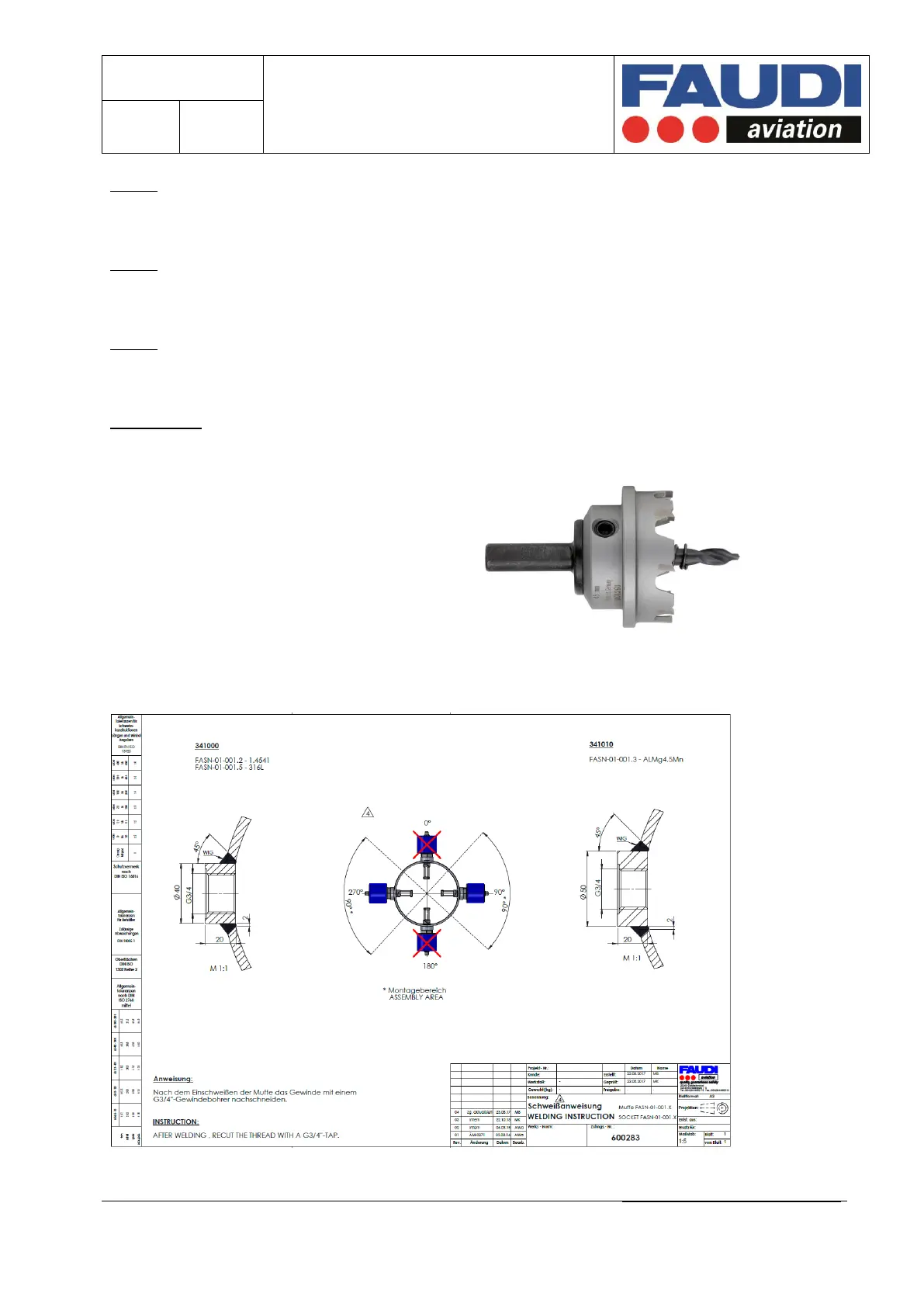

Step 2:
Drain the pipe section.
Step 3:
Disconnect the pipe section from the vessel and clean the pipe section from flammable fluids.
Step 4:
Drill the hole for the AFGUARD® socket.
Drilling tools:
HSS 45mm cylindrical saw for a hand drill
AFGUARD® stainless steel socket
FAUDI article number: 600355
HSS 54mm cylindrical saw a hand drill
AFGUARD® aluminum socket
FAUDI article number: 600356
Please pay close attention to the welding instructions.
