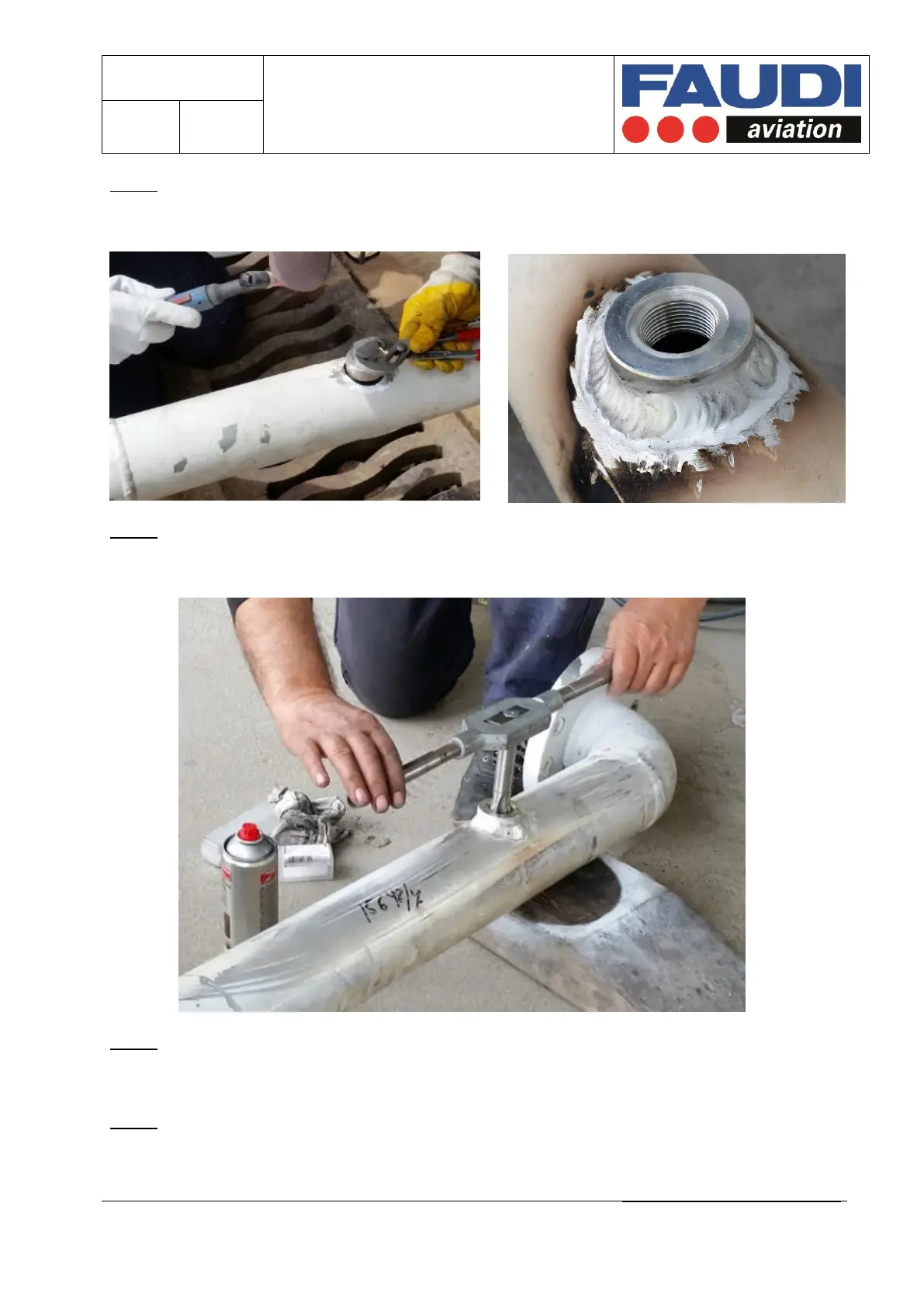

Step 5:
Weld the special AFGUARD® socket into the pipe section.
Step 6:
After welding, it is recommended to thread the socket with a G3/4”-thread cutter.
Step 7:
Proceed a pressure test to ensure the required PN rating of the pipe section.
Step 8:
Reassemble the pipe section (ensure to use good working seals).
