Chapter 2: Motherboard information

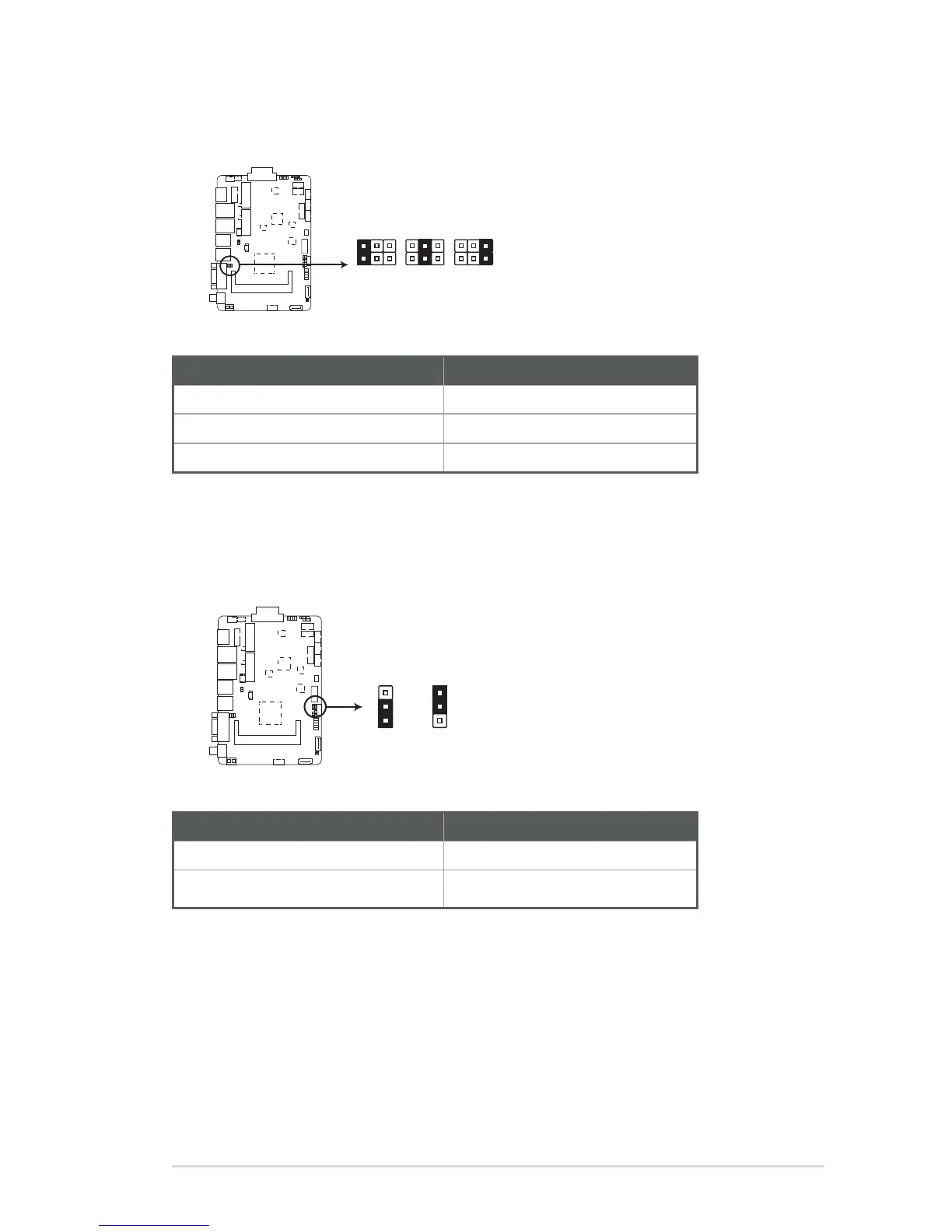

FAY-002 COM2 Ring/+5V/+12V Selection
5
6
3
4
1
2
+12V +5V Ring
(Default)
J1
FAY-002 Inverter Voltage Selection
1 2
2 3
+5V
(Default)
+12V
J2
2. COM1 Ring/+5V/+12V selector (6-pin J1)
3. Inverter voltage selection (3-pin J2)
Setting Pins
+12V 1-2
+5V 3-4
Ring(Default) 5-6
Setting Pins
+12V 1-2
+5V(Default) 2-3
