FAY-002
2-10

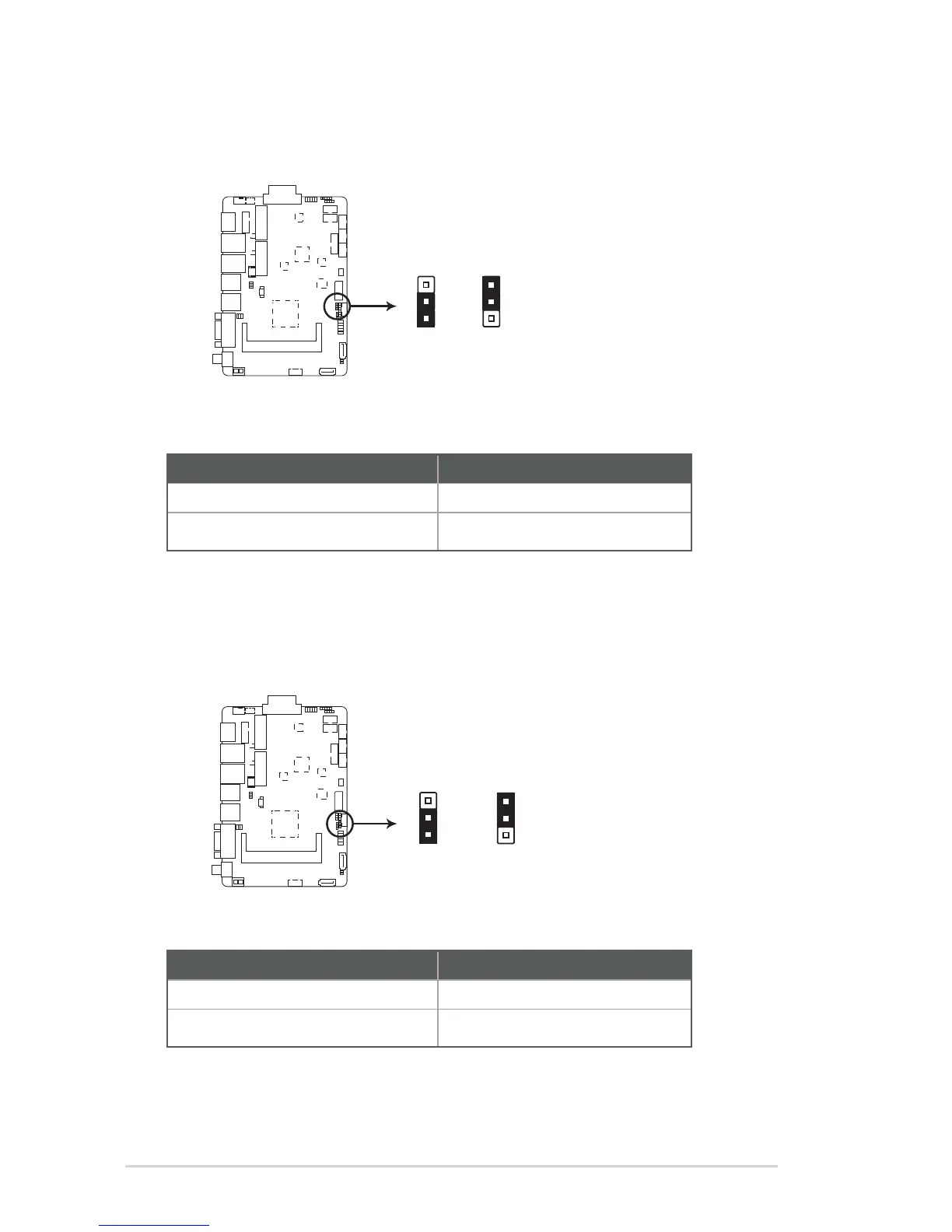

FAY-002 LVDS Panel Voltage Selection
1 2
2 3
+3V
(Default)
+5V
J4
Setting Pins
+5V
1-2
+3V(Default) 2-3
5. LVDS panel voltage selection (3-pin J4)
FAY-002 Mode Selection for Back
Light Control of Inverter
PWM CTLDC CTL
(Default)
1 2
2 3
J3
4. Inverter Backlight Control of Inverter selector (3-pin J3)
Setting Pins
DCVoltageControl(Default)
1-2
PWMControl
2-3
