Faytech FAY-002 - Page 30

FAY-002
2-22

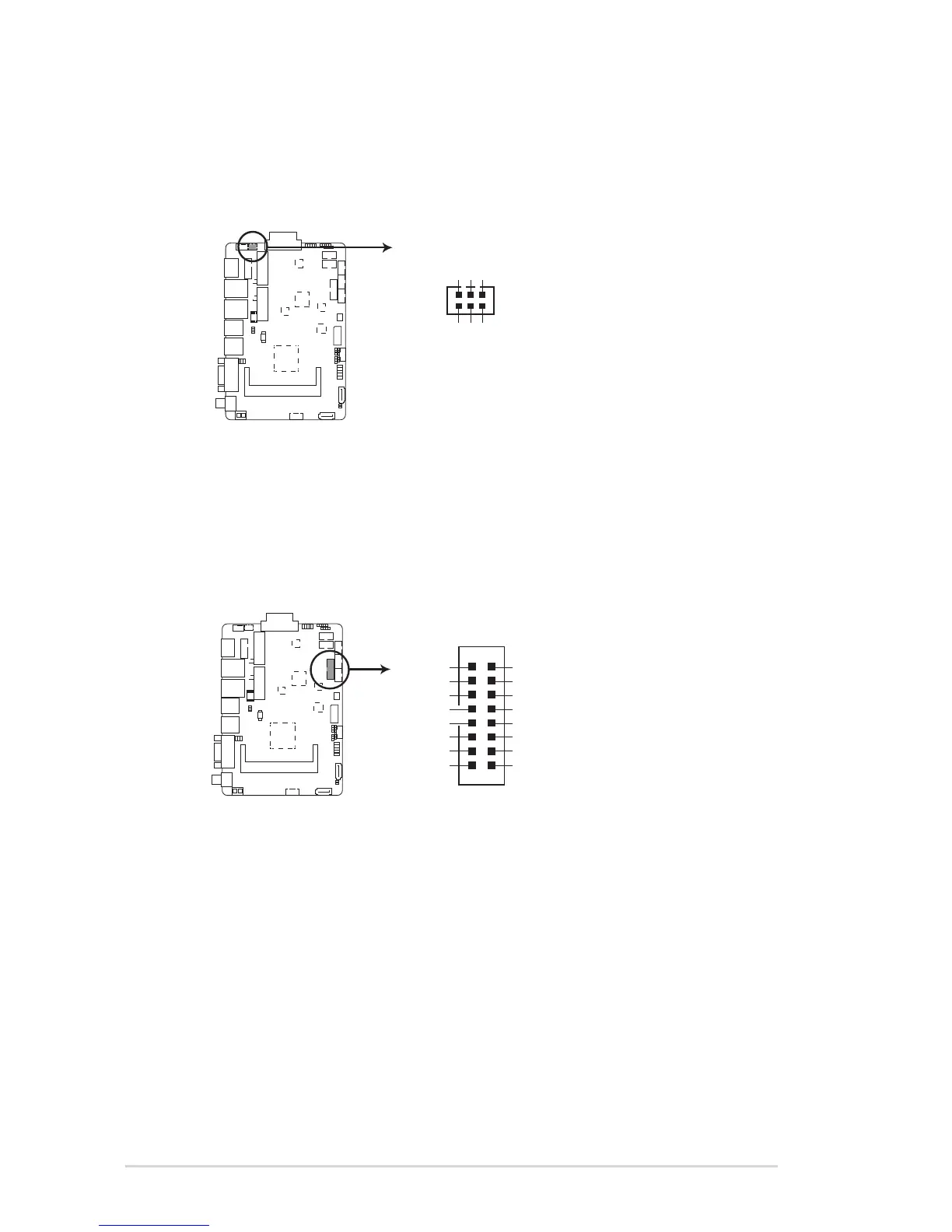

FAY-002 Series PS/2 keyboard/mouse connector
PIN 1
KBMS1
O_MS_CLK_R
5VSB
O_KB_CLK_R
O_MS_DATA_R GND O_KB_DATA_R
14. PS/2 keyboard/mouse connector (6-pin KBMS1)
ThisconnectorisforanIBMPS/2-compatiblekeyboardormouse.
FAY-002 VGA connector
PIN 1
VGA1
5V_DVI
GND
NC
RDDCA_DATA_R
R_HSYNC
R_VSYNC
RDDCA_CLK_R
GND
DAC_R
DAC_G
DAC_B
NC
GND
GND
GND
GND
15. VGA connector (16-pin VGA)
This16-pinconnectorisforaVGAmonitororotherVGA-compatibledevices.
