FAY-002
2-24

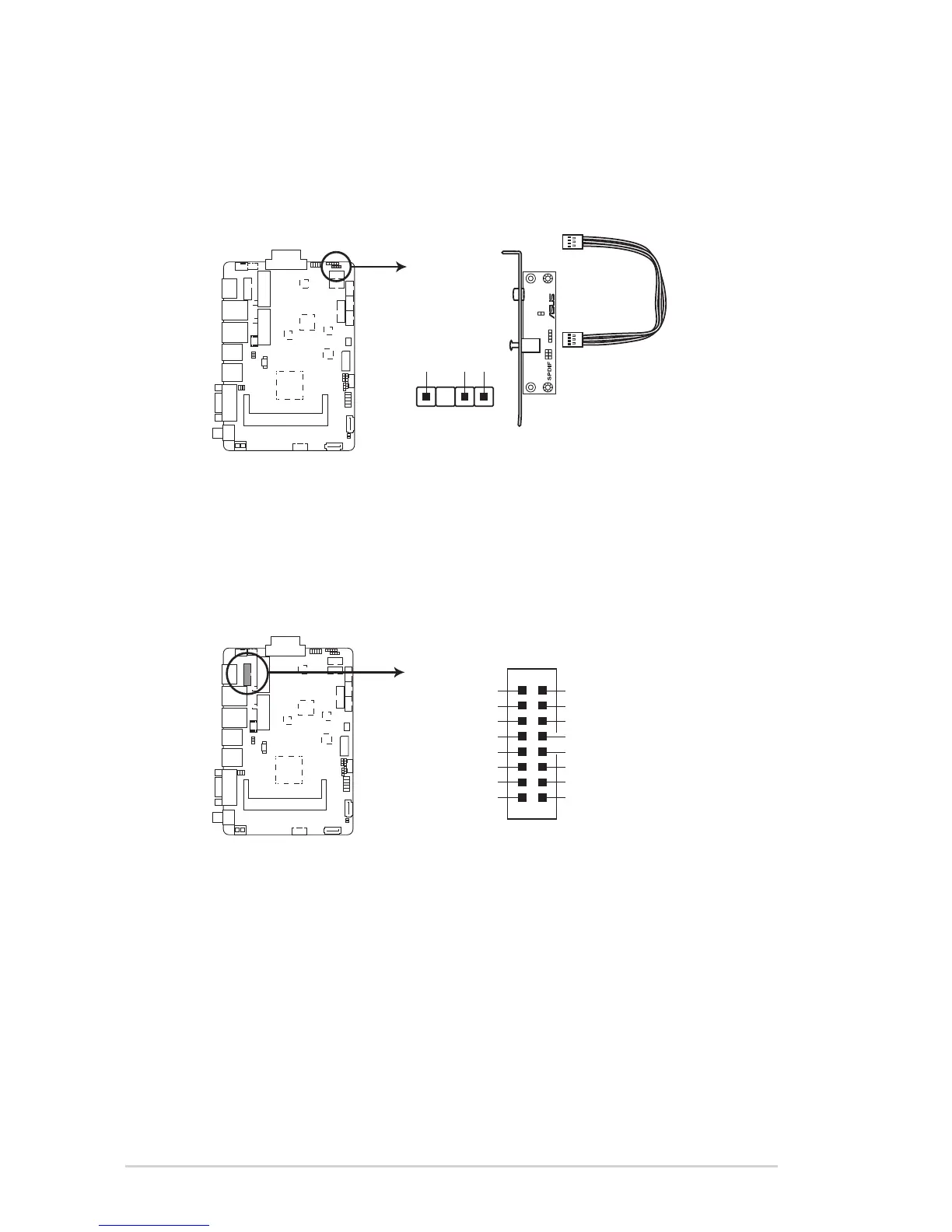

18. Digital audio connector (4-1 pin SPDIF_OUT)
ThisconnectorisforanadditionalSony/PhilipsDigitalInterface(S/PDIF)
port.ConnecttheS/PDIFOutmodulecabletothisconnector,theninstallthe
module to a slot opening at the back of the system chassis.
FAY-002 Digital audio connector
SPDIF_OUT
PIN1
+5V A_SPDIF_OUT GND
19. DisplayPort header (16-pin DP_Head1)
This connector is for an additional DisplayPort port.
FAY-002 DP_HEAD connector
PIN 1
DP_HEAD1
S_DP1_HPD_R
GND
DP_GND
H_DP1_TXN1_R
H_DP1_TXP1_R
GND
H_DP1_TXN0_R
H_DP1_TXP0_R
S_DP1_AUXN_C1
S_DP1_AUXP_C1
+3V_DP_POWER1
H_DP1_TXN3_R
H_DP1_TXP3_R
GND
H_DP1_TXN2_R
H_DP1_TXP2_R
