MAINTENANCE
070002_3_B
FGP 50/2 EVO-2
12
MAINTENANCE
EXTRACTION OF THE COMBUSTION HEAD
it is possible to take out the head group without removing the burner from the boiler:
a) Take off the cover (pos.9) by loosening the 3 screws (pos.10)
b) Loosen the connection (pos.7) and the screws (pos.8)
c) Take out the head group (pos.11) and pull the ignition cables.
ATTENTION: REMOVE VOLTAGE!

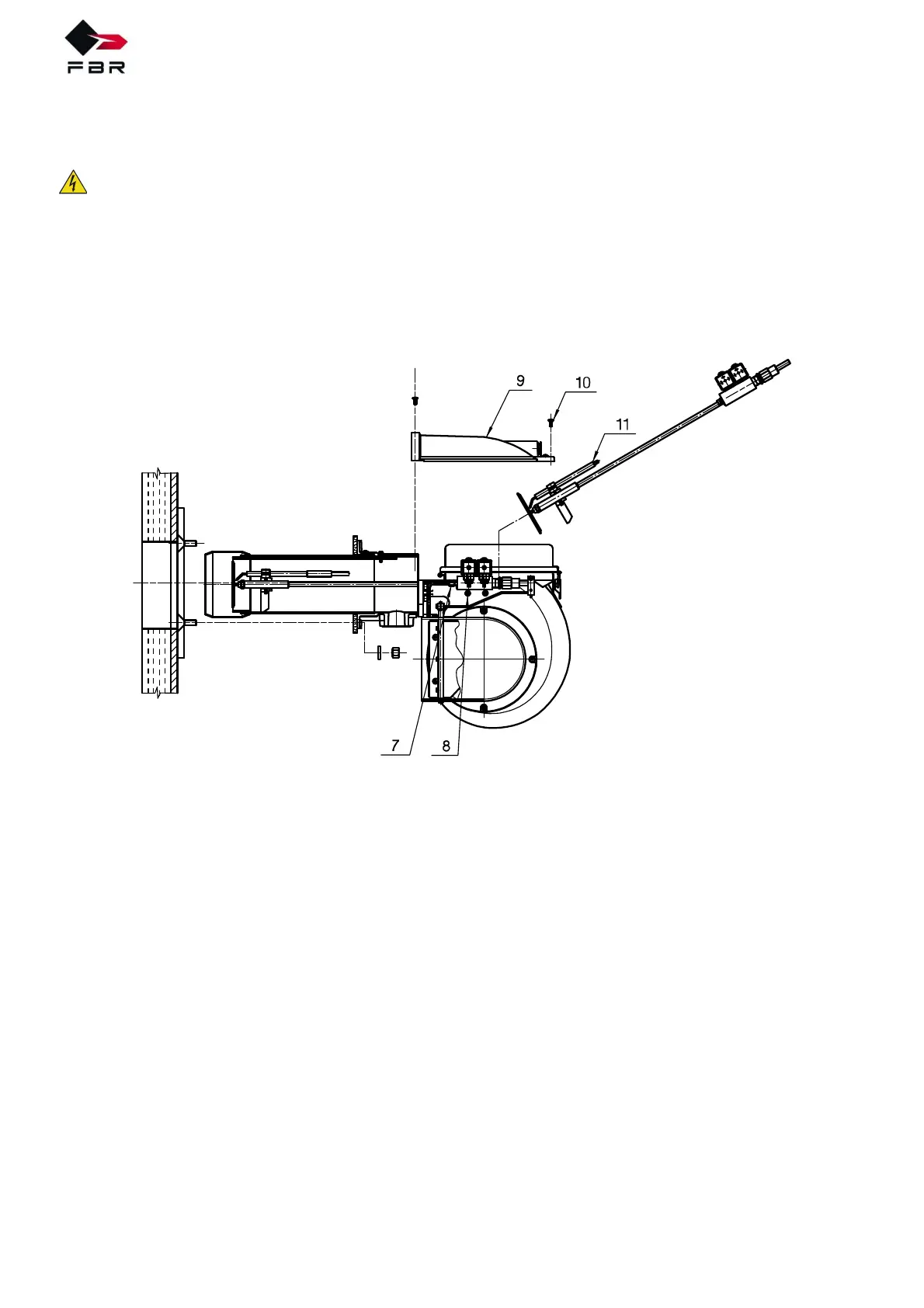

Fig. 12 Extraction of the combustion head
DANGER
